CAUTION - RISK OF FIRE

This product requires installation by a qualified

electrician. Before installing be sure to read all

instructions and TURN THE POWERTO THE

ELECTRICAL BOX OFF.

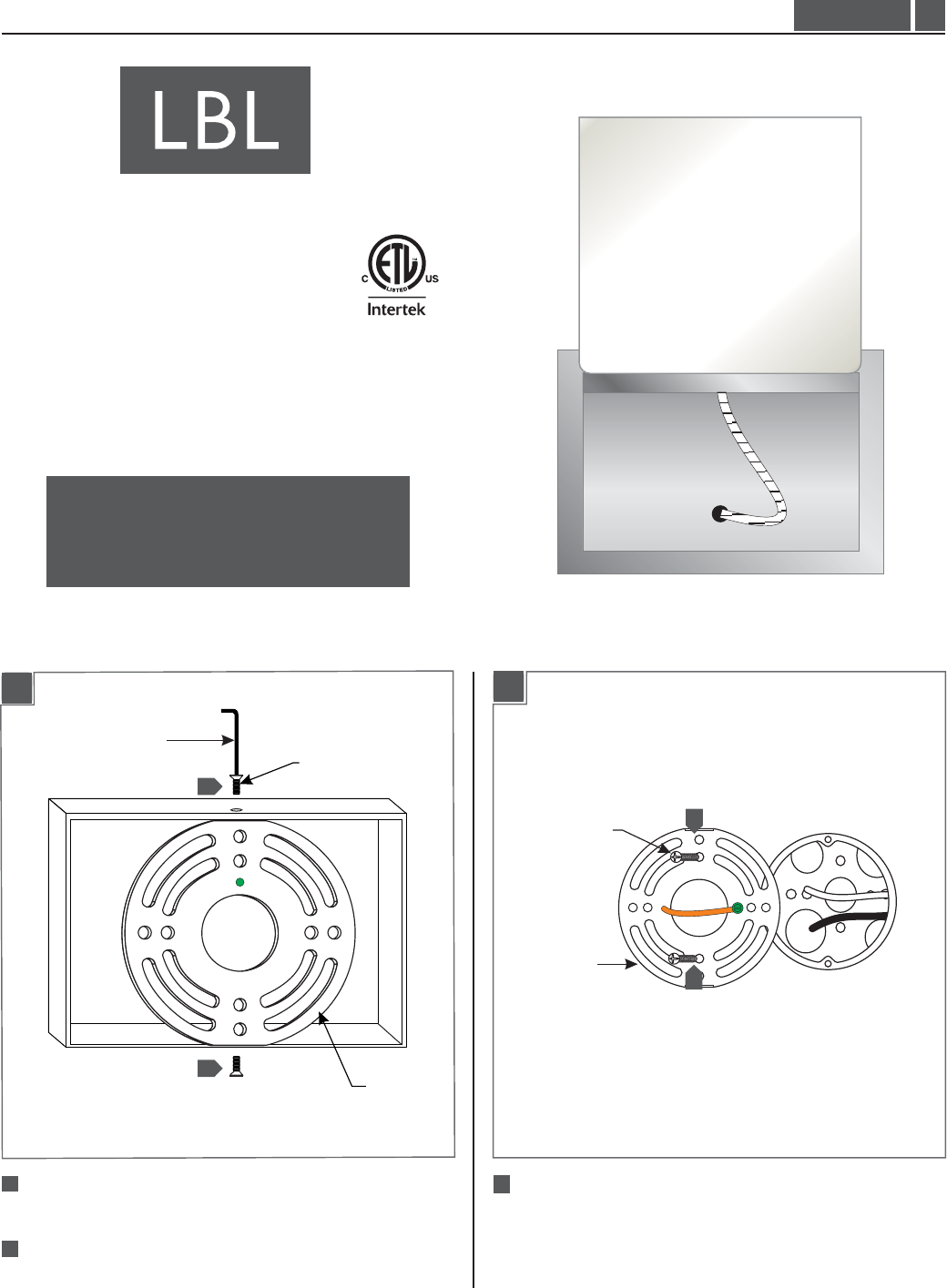

Install the Mounting Plate

GP I :ENERAL RODUCT NFORMATION

This product is suitable for damp locations.

This product can mount either to a 4” square electrical box with a

round plaster ring or an octagon electrical box.

This product can be dimmed with a standard incandescent dimmer.

This instruction shows a typical installation.

Wall

MOUNTING

PLATE

MOUNTING

PLATE SCREW

Installation Instructions for

Zanz Wall

980ZANZW

1.0

WS7531_

Install the mounting plate onto the electrical box with

the two #8-32 screws provided.

With the Allen wrench provided, remove the two

mounting plate screws.

Remove the mounting plate from the back of the

fixture.

MOUNTING

PLATE

#8-32 SCREW

ALLEN WRENCH

Summary of content (4 pages)

PAGE 1
Installation Instructions for 980ZANZW WS7531_ Zanz Wall 1.0 Wall GENERAL PRODUCT INFORMATION: This product is suitable for damp locations. This product can mount either to a 4” square electrical box with a round plaster ring or an octagon electrical box. This product can be dimmed with a standard incandescent dimmer. This instruction shows a typical installation. CAUTION - RISK OF FIRE This product requires installation by a qualified electrician.
PAGE 2
Assemble the Fixture 2A 2C COLLARED NUT SPECIAL TOOL GLASS SHADE SOCKET 1 SOCKET ASSEMBLY COLLARED NUT 1 Unscrew the collared nut and remove it from the socket. 2B 1 3 2 GLASS SHADE SOCKET ASSEMBLY 2 Install the glass shade by placing it on the socket assembly. 2 Secure the glass shade by re-installing the collared nut on the socket assembly and tighten it using the special tool.
PAGE 3
Install the Fixture Install the Lamp 3A 4A 1 LAMP 2 SOCKET 1 3 Use MAX 120 Volt, 60 Watt type T4, G9 base bi-pin halogen lamp. 1 2 Connect the fixture to a suitable ground in accordance with local electrical codes. NOTE: Use only your fingers and a soft cloth to install Connect one fixture wire to the neutral power line wire with a wire nut. 3 Connect the other fixture wire to the hot power line wire with a wire nut.
PAGE 4
IMPORTANT SAFETY INSTRUCTIONS Halogen Lamp General Information To reduce the risk of fire, electrical shock, exposure to excessive UV radiation, or injury to person: – A new halogen lamp may smoke slightly when it is used for the first time.This is perfectly normal; the protective coating is simply being vaporized. – Use this fixture indoors only. Two Tips For Prolonging Halogen Lamp Life – Do not look directly at the lighted lamp. – Do not remain in light if skin feels warm.
