Instructions / Assembly

ManualsBrandsLAUREL CANYON ManualsOutdoor Heating39 in. Tall 11,000 BTU Portable Outdoor Propane Table Top Patio Heater, Quick Pulse Ignition, Auto Shut Off, Black

1

2

3

4

5

6

7

8

9

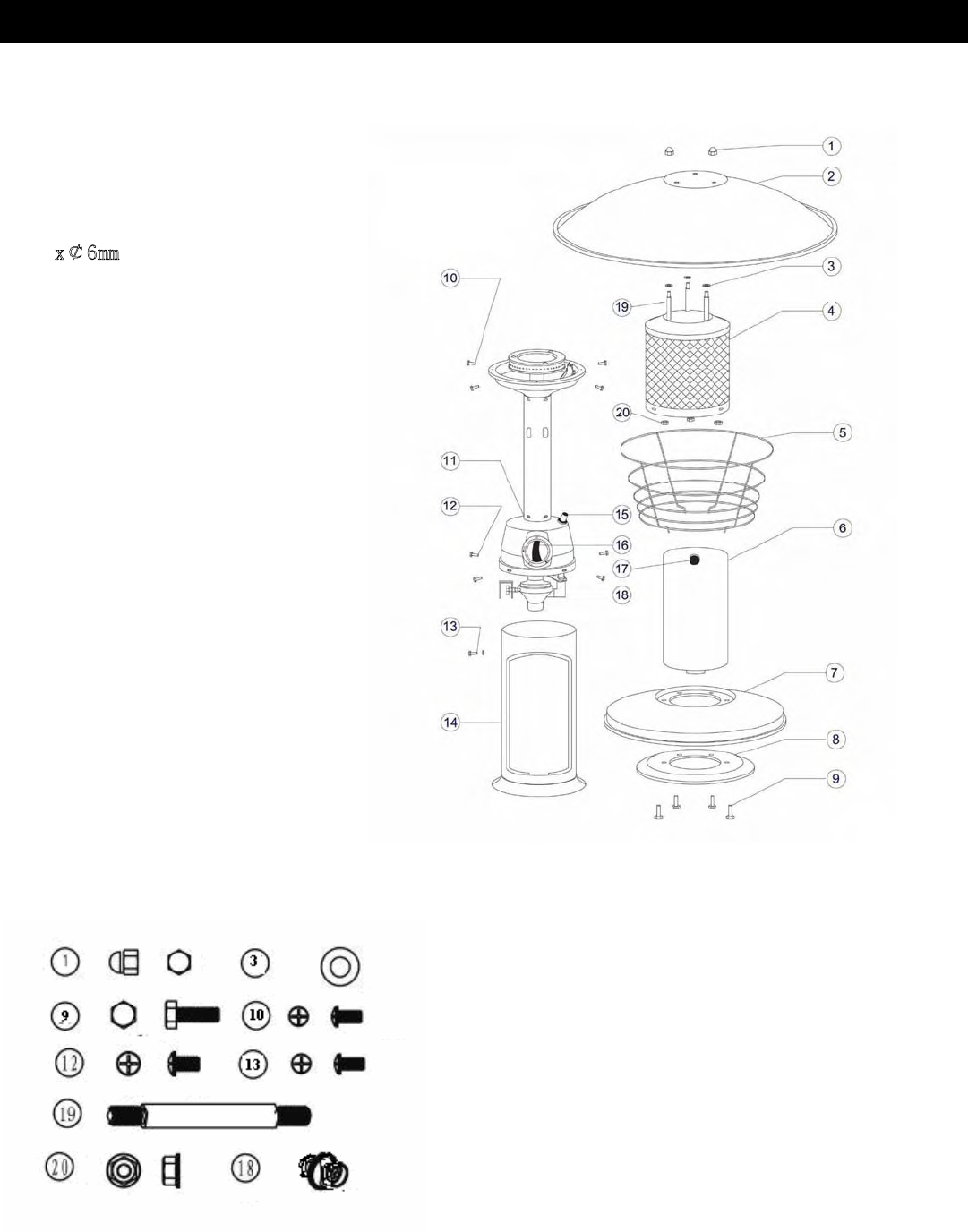

1. 3xM6 Castle Nut

2. Reflector

3. 3x￠6mm

4. Emitter Screen

5. Guard

6. Door Plate

7. Base

8. Cast Iron

9. 4xM6x15mm Bolt

10. 4x3/16’’ Bolt

11. Burner

12. 4x3/16’’ Bolt

13. M5x10mm Bolt

14. Tank Housing

15. Igniter Button

16. Control Knob

17. Handle

18. Regulator

19. 3x60mm Pin

20. 3xM6 Flange Nut

3

PARTS

Washer
