Operation Manual

AutoCross-Laser 2 Plus
LASER LASER LASER LASER
2
a
b
c
d
a
LASER LASER LASER LASER
3
09
GB
Horizontal and vertical levelling
Release the transport restraint, set the ON/OFF switch to „ON“. The laser cross will appear. The laser lines
can be switched individually with the selection button.
Slope mode
Do not release the transportation safety device. Slide the ON/OFF switch into the centre position and
select the laser using the selection button. Sloping planes and tilts can now be measured. In this mode,
the laser lines no longer align automatically. This is signalised by the laser lines flashing. In addition,
the LED light (8) remains red.
The transport restraint must be released for horizontal and vertical levelling. The LED shows a
permanent green light. The laser lines flash, a signal sounds and the LED lights red as soon as the
device is outside the automatic levelling range of 3°. Position the device such that it is within the
levelling range. The LED switches back to green and the laser lines stop flashing (steady light).
!

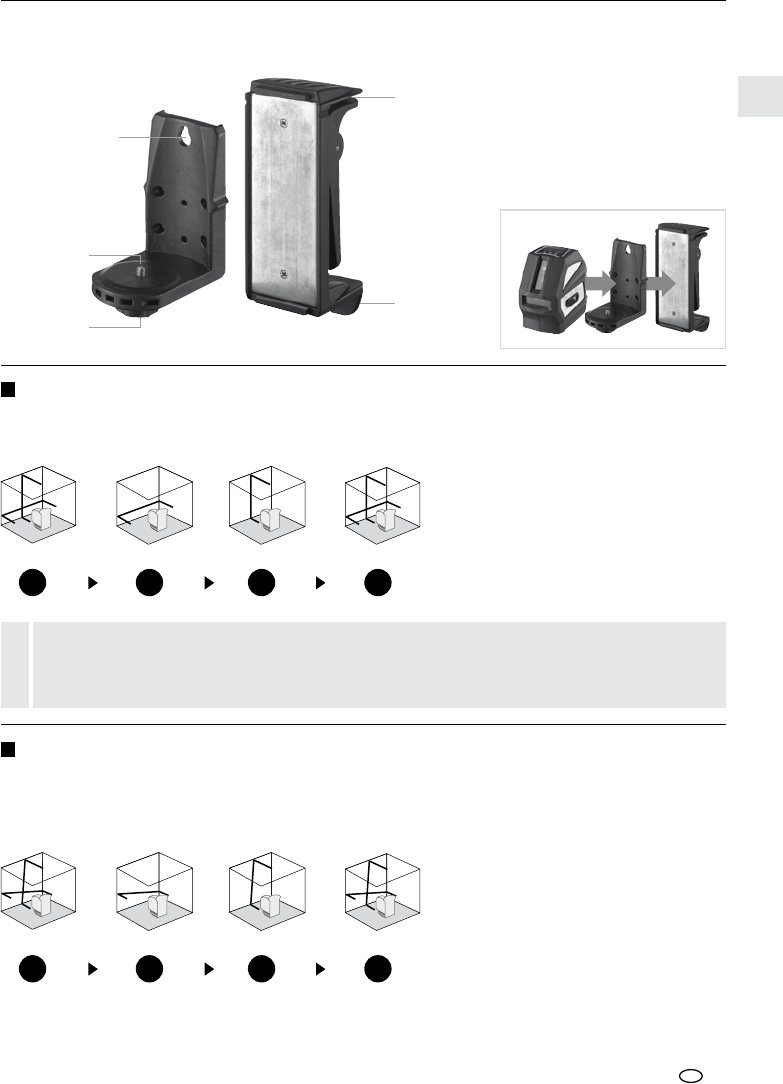

Magnetic wall bracket
Eyelet for mounting
on the wall
1/4“ thread
1/4“ fastening screw
Clamp
a
b
c
d
