Remote Operation: Remote control functions include on/off, and 4 buttons which control up, down, left and right
movement. The light will continue movement as long as the buttons are depressed. Releasing the buttons stops movement
and holds the Golight in position. A fast and slow mode button (turtle/hare) controls the speed of the motor while the pan
and tilt function buttons are depressed. Holding the button for 12 seconds in fast mode results in a full 370 degree rotation,
and 8 seconds for full tilt. Slow mode is used for pinpoint accuracy at distance and is approximately 35 seconds for full
rotation and 20 seconds for one full range of tilt.
Durability: The GL-3051H Golight Stryker is designed for hunting and demanding outdoor use with a weather resistant
housing constructed of high quality ASA Luran thermoplastic that is heat resistant, impact resistant, UV resistant and able
to withstand rugged use and abusive conditions. This particular Golight Stryker has a durable black finish, making it ideal
for boats and vehicles where an attractive appearance is desired. Also available are white, camouflage, and chrome
finishes. Remote movement of this spotlight is provided by an automotive grade internal motor, gear, and transmission
assembly that is constructed of LEXAN, brass, and stainless steel to provide rust and corrosion resistance as well as long
life and reliable operation.
Mounting: This light mounts using a detachable design with a separate permanent mount interlocking stainless steel
mounting plate that is affixed to the mounting surface. The mounting plate is attached with 3 screws through predrilled
holes which secure the plate to the mounting surface. The Golight Stryker attaches to the mounting plate via an interlocking
base bracket and a single machine screw which secures the Golight to the mounting plate. This design simplifies mounting
and allows users to easily detach the light from the mounting surface for servicing or storage.
Power: This Golight is connected to power through an included 1 foot pigtail cord and user supplied 16 AWG wire to
connect the unit to the battery, fusebox, or to existing wiring. This light operates with 12 volts DC and draws 3 amps after
an initial 7.2 amps - 60 second startup amp draw, making it ideal for vehicles, boats, ATVs, and similar sources of 12 volt
direct current. We also carry an AC/DC power converter that allows operation with common 110-120 VAC household
current for security applications.

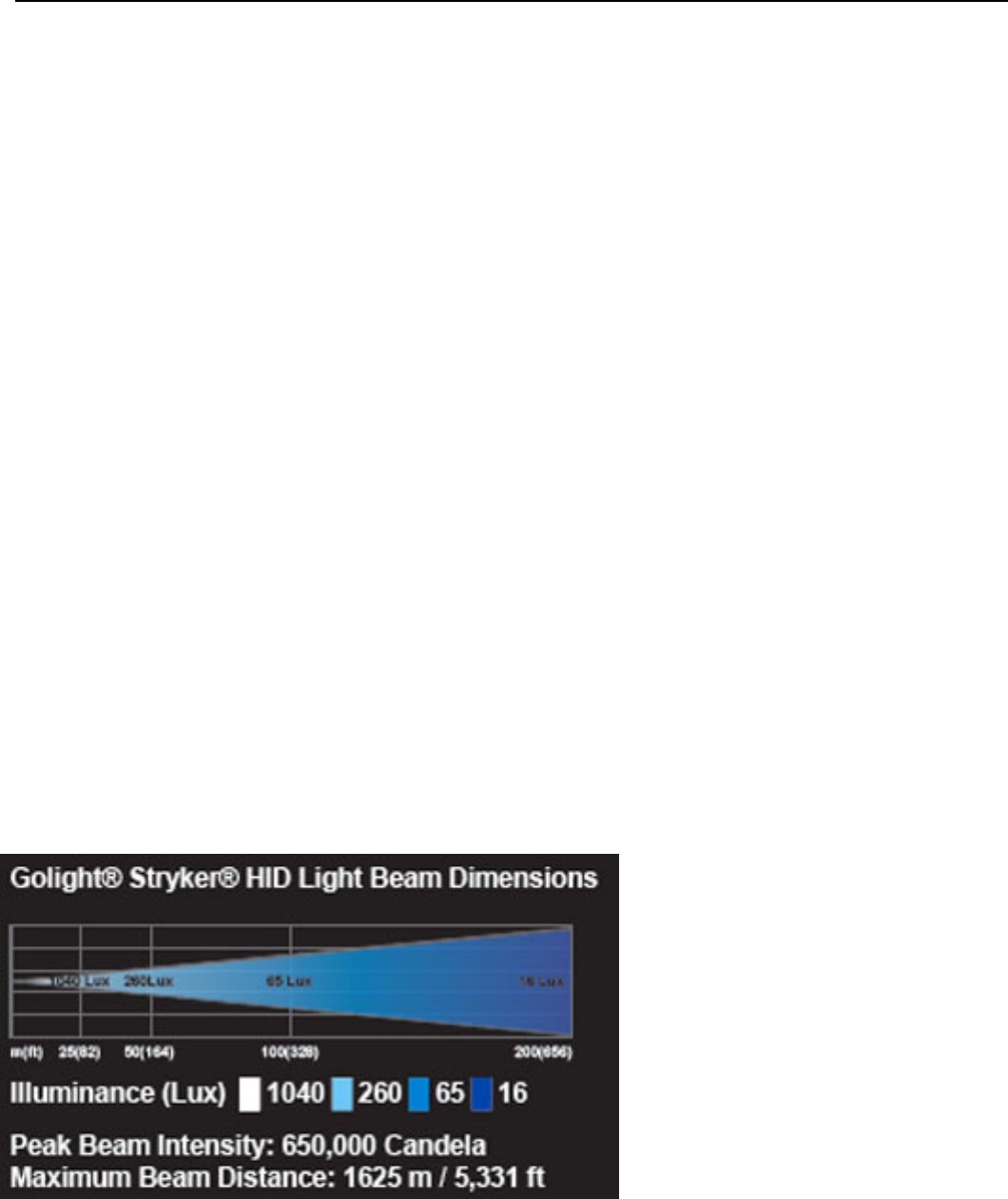

Light Output: The lamp in this Golight Stryker is a 35 watt high intensity discharge bulb which produces 3,000 lumens, or a
15 million retail candle power rating. This bulb is paired with a tight focus reflector and thick glass lens to produce a narrow
