The 15-watt LED lamp used in this unit provides as much illumination as higher-wattage incandescent lamps without the associated heat,
reducing the chances of accidents or burns. This lamp has no ballast, which reduces lamp weight, an impact resistant tube shield with specially
designed annealed glass and an aluminum hook for easy overhead mounting. The 100 foot long Class 1, Division 1 rated SOOW 16/3 AWG
cord and explosion proof slip-ring housing help this unit to achieve approval for use in environments containing flammable vapors and
combustible dusts. This explosion proof fluorescent hand lamp can be used within hazardous locations rated Class 1 Division 1 and 2, and Class
2 Division 1 and 2, making it ideal for hazardous work areas where a ready source of easily managed lighting is desired.
Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of
heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that
illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and
provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler
than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of
light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting.
Click Photos to Enlarge

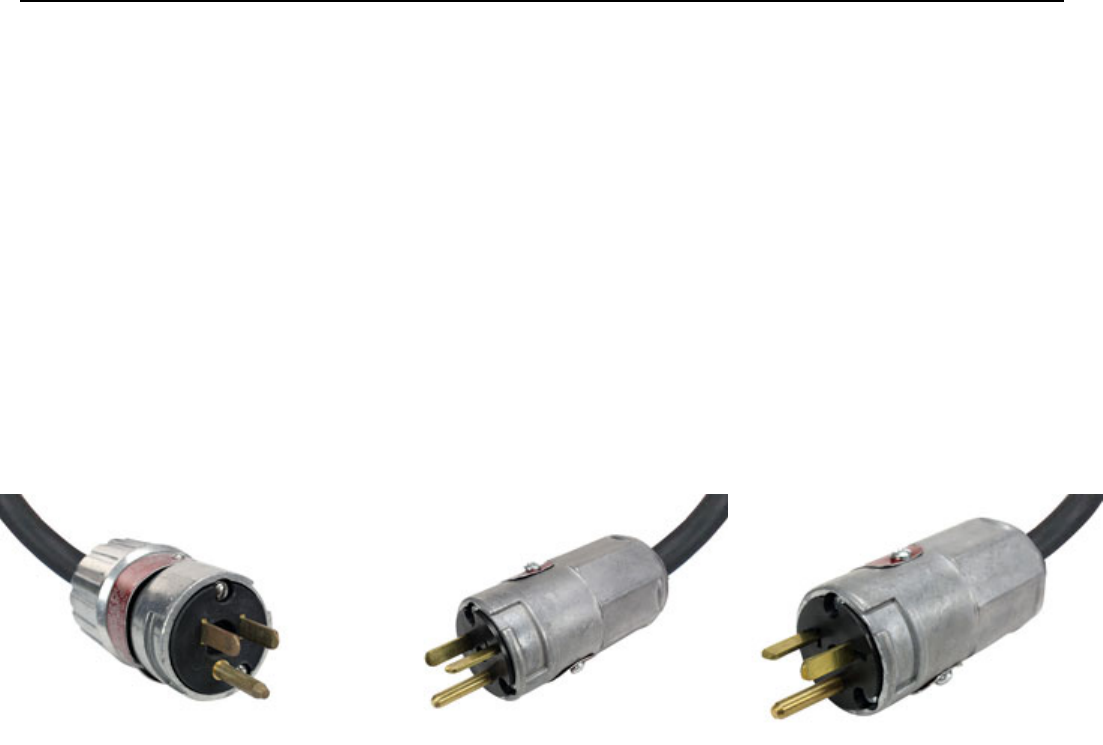

5-15 Straight Blade Plug 5-20 Straight Blade Plug 6-20 Straight Blade Plug
These particular units also come standard with an 1523 explosion proof straight blade plug. The plug is Class 1, Division 1 & 2 and Class 2,
Division 1 & 2 rated. In order to complete the seal and preserve the plugs' explosion proof approval, the operator must connect the plug to a
matching explosion proof outlet receptacle. Although this plug will work with a standard outlet, connecting to a regular 125/250V outlet renders
the plugs' explosion proof rating useless and should only be done when connecting the light outside of the explosion proof environment.
Lamp Features
2 foot 15 watt LED Tube Lamp 50,000 hour service life
Non-sparking aluminum housing
No Ballast
Molded rubber bumper guards
Annealed glass tube shields prevent shattering
Integrated lamp shock absorbers prevent drop damage to bulbs
Swivel hook for hanging and hands free operation
Explosion proof cord
