Specification Sheet

Page: 2
Larson Electronics LLC www.LarsonElectronics.com
9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]
The EXP-LED-HL-MSHA Explosion Proof Rechargeable LED Headlamp slices through the darkness with a brilliant beam of light that
reaches over 450 feet. Operators can easily switch between the high and low settings at the push of a button. A single 2600 mAh
rechargeable lithium battery powers this headlight for 15 hours on the high mode and up to 60 hours on the low mode. The 65 lumen
beam remains consistently bright, with no visible dimming, for the entire run time. When the LED charge is low, an automatic sensor
blinks once per minute signaling the low charge to the operator. Built with rugged IP68 toughness, the EXP-LED-HL-MSHA, is rated
Class I Division 1, is MSHA Parts 18 & 19 certified, and carries ATEX and IECex certifications. This cordless explosion proof
headlamp is idea for mining, underground exploration, industrial safety, public works & utilities, law enforcement, firefighting, railway
operations, and consumer applications.
LED Benefits: The EXP-LED-HL-MSHA Explosion Proof Rechargeable LED Headlamp produces 65 lumens and has a beam reach of over
450 feet. This lamp features high and low settings, which are switched using a simple push button. The 2600 mAh rechargeable lithium battery
will power the lamp for 15 hours on the high mode and for 60 hours on the low mode. When the LED charge is low, the automatic sensor will
blink once per minute to signal the low charge to the operator.
Rugged IP68 rated construction means this light is completely protected against the ingress of dust and dirt and resists the damaging effects of
water even when submerged. The EXP-LED-HL-MSHA is impact and shatter resistant, enabling it to withstand rough handling and extreme
wear.
To attach the EXP-LED-HL-MSHA headlight to a cap, simply slide the caphook onto the cap’s lamp bracket. A lanyard may be attached to the
provided attachment point for added security.
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during
operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes
(LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool
down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights
run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or
mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat
emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to
hazardous substances contained in the glass bulbs, are eliminated. Solid state LED lighting is also safer for the environment as LEDs are 100%
recyclable. And recycling simultaneously reduces operating costs by eliminating the need for the expensive special disposal services required
with traditional gas burning and arc type lamps.

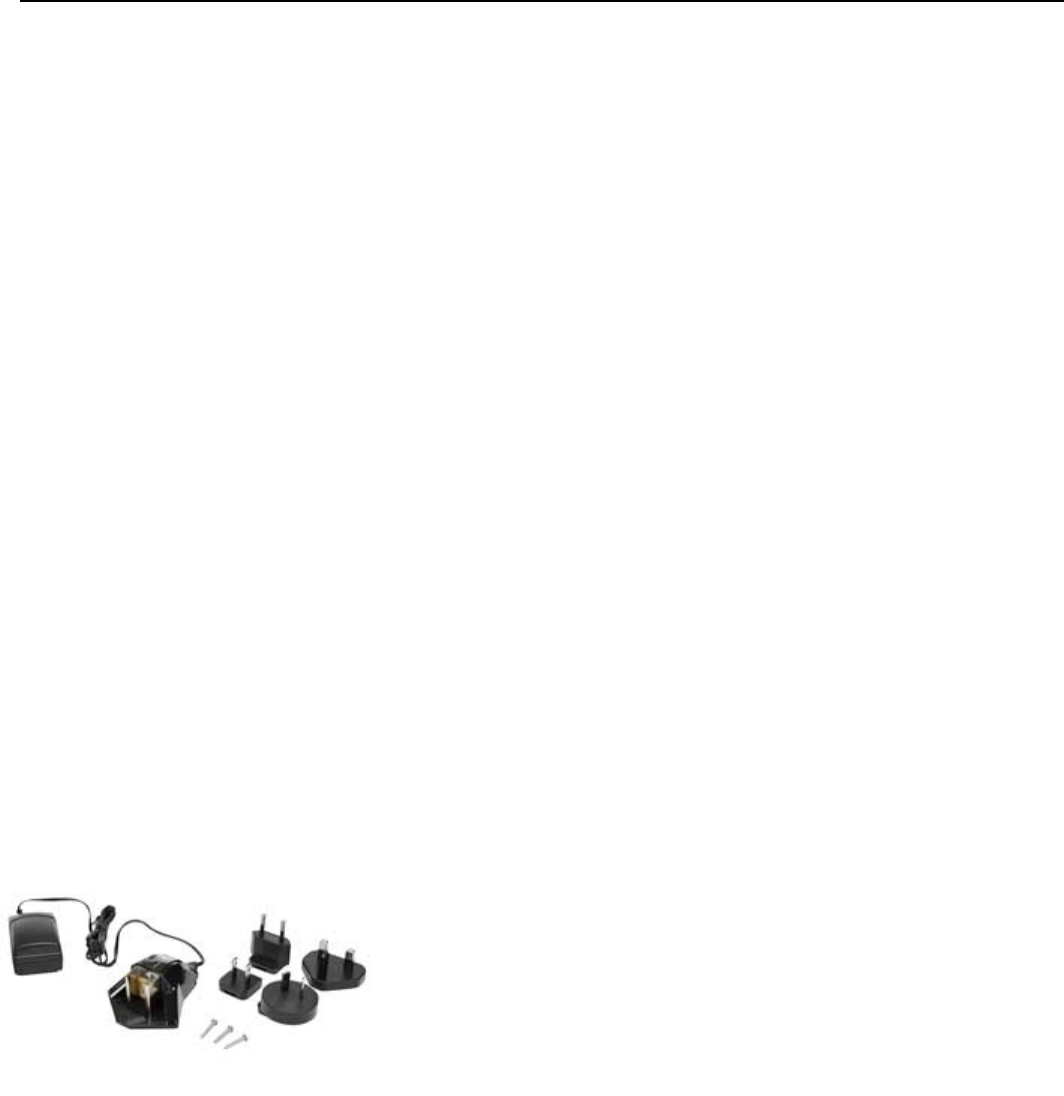

Charger Options
Power: The EXP-LED-HL-MSHA is powered using a single 2600 mAh rechargeable lithium ion battery, which is charged using the included
single station wall charger. The charging unit is designed for 100-240V AC, 50/60 Hz. Recharging from a fully depleted state takes 6 hours. The
battery must be charged prior to the first use of the headlamp.
Suggested Applications: This cordless explosion proof headlamp is ideal for mining, underground exploration, industrial safety, public works &
utilities, law enforcement, firefighting, railway operations, and consumer applications.
At Larson Electronics, we do more than meet your lighting needs. We also provide replacement, retrofit, and upgrade parts as well as industrial
grade power accessories. Our craftsmen can custom build any lighting system and/or accessories to fit the unique demands of your operation.
