Specification Sheet

Page: 1
Larson Electronics LLC www.LarsonElectronics.com
9419 E US HWY 175, Kemp, TX 75143 Phone: 903.498.3363 Fax: 903.498.3364 Email: sales@LarsonElectronics.com

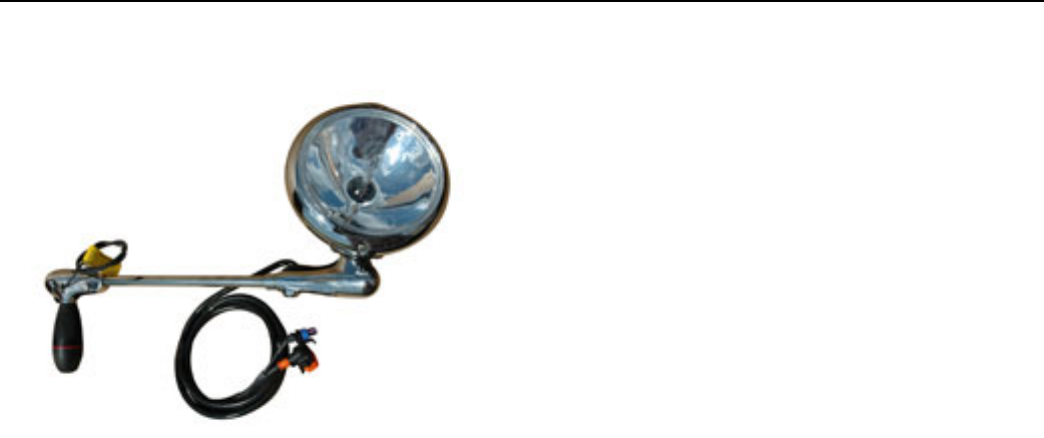

Post mount spotlight - 6 inch - 35W HID - Driver side WITH install kit
Post mount spotlight - 6 inch - 35W HID - Driver side WITH install kit
Operation: Operator controls rotation and elevation of spotlight outside of vehicle by twisting and turning a handle on the inside of the
vehicle. Operator remains protected from the elements and can position the beam quickly and easily. The beam remains where the
operator places it until the handle is moved.
Format: 6 inch round spun steel housing with triple plate chrome finish.
Colors: Available with Chrome housing – black housing and shaft upgrade available under accessories for an additional fee (shaft is
chrome and handle is black)
Shaft: Stainless steel with triple plate chrome coating
Handle: Black rubberized handle
Switch: Thumb activated toggle on the top rear of the handle
Voltage: 12 Volt, 35 Watt configuration. Check accessories for 24 volt availability.
Lens Type: Sealed beam – glass lens
Beam Type: Spot beam
Beam Length: 2800 feet projection with 3200 lumens
Bulb Type: 35 Watt HID (High Intensity Discharge lamp)
Candlepower: Industrial candlepower – 600,000 Retail Candlepower: 15 million Click here for more information on industrial and retail
candlepower ratings
Electrical: Single positive lead from handle connects to vehicle power. Spotlight is grounded via mounting kit to vehicle chassis.
Separated connection stems from back of the housing to separate ballast unit. Ballast is mounted separately.
Amp draw: 3 amps on 12 volts. 14 amps to start for 60 seconds.
More Information: More information on Unity Post Mount Spotlight - 6 inch with 35 Watt HID bulb
Mounting options include (depends on year, make and model of vehicle, see product description for specific mounting location):
