Specification Sheet

Page: 2
Larson Electronics LLC www.LarsonElectronics.com
9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]
Click Image to Enlarge
Remote Operation: Remote control functions include on/off, and 4 buttons which control up, down, left and right movement. The light will
continue movement as long as the buttons are depressed. Releasing the buttons stops movement and holds the Golight in position. A fast and
slow mode button (turtle/hare) controls the speed of the motor while the pan and tilt function buttons are depressed. Holding the button for 12
seconds in fast mode results in a full 370 degree rotation, and 8 seconds for full tilt. Slow mode is used for pinpoint accuracy at distance and is
approximately 35 seconds for full rotation and 20 seconds for one full range of tilt.
Durability: The GL-3151-F Golight Stryker is designed for demanding outdoor use with a weather resistant housing constructed of high quality
ASA Luran thermoplastic that is heat resistant, impact resistant, UV resistant and able to withstand rugged use and abusive conditions. This
model comes standard in a durable black finish. Also available are chrome, white, and camouflage finishes. Remote movement of this spotlight is
provided by an automotive grade internal motor, gear, and transmission assembly that is constructed of LEXAN, brass, and stainless steel to
provide rust and corrosion resistance as well as long life and reliable operation.

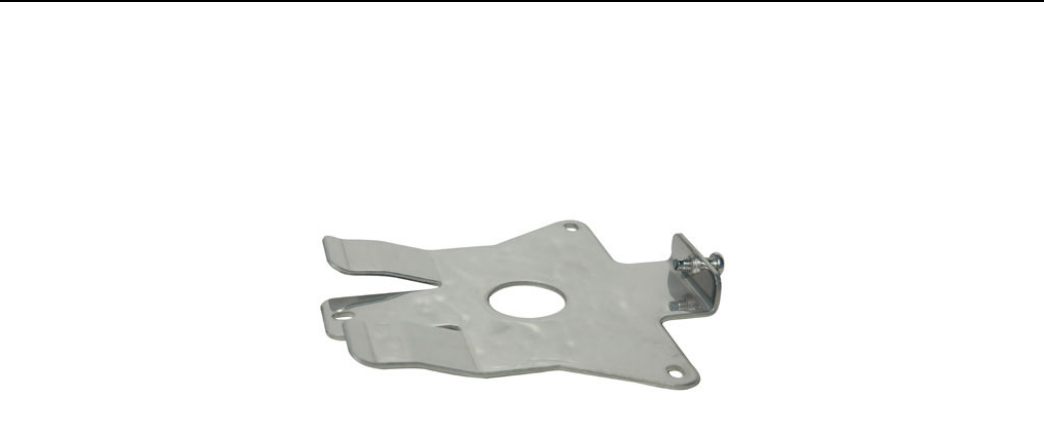

Mounting: This light mounts using a detachable design with a separate permanent mount interlocking stainless steel mounting plate that is
affixed to the mounting surface. The mounting plate is attached with 3 screws through predrilled holes which secure the plate to the mounting
surface. The Golight Stryker attaches to the mounting plate via an interlocking base bracket and a single machine screw which secures the
Golight to the mounting plate. This design simplifies mounting and allows users to easily detach the light from the mounting surface for servicing
or storage.
Power: This Golight is connected to power through an included 1 foot pigtail cord and user supplied 16 AWG wire to connect the unit to the
battery, fusebox, or to existing wiring. This light operates with 12 volts DC and draws 5.5 amps, making it ideal for vehicles, boats, ATVs, and
similar sources of 12 volt direct current. We also offer these units in 24 volt configurations.
Light Output: The lamp in this Golight Stryker is a 65 watt CR5 Pentabeam™ bulb which produces a wide area flood of light that illumates a
space approximately 50 foot long by 75 foot wide. This wide flood beam is ideal for work and leisure applications where large areas near to the
vehicle, boat or workspace need to be well lit.
This 12 Volt Golight Stryker is ideal for hunting, security, boating, law enforcement, emergency services, utilities, and anywhere high power and
remote control functionality are desired. This unit uses less power on a 24 volt system, making it well suited to vehicles and boats where power
supply is limited. This Golight Stryker is also ideal for home and commercial security applications and can be adapted to standard 110-120 VAC
wall outlet power using our AC/DC power converter.
