UBox USB Device Server User Guide UBX4100

Configuring the Windows XP Firewall
4. Select UDP.
5. Click OK.
To add your TCP port to the firewall:
1. On the Exceptions tab, click the Add Port button. The Add a Port window
displays.

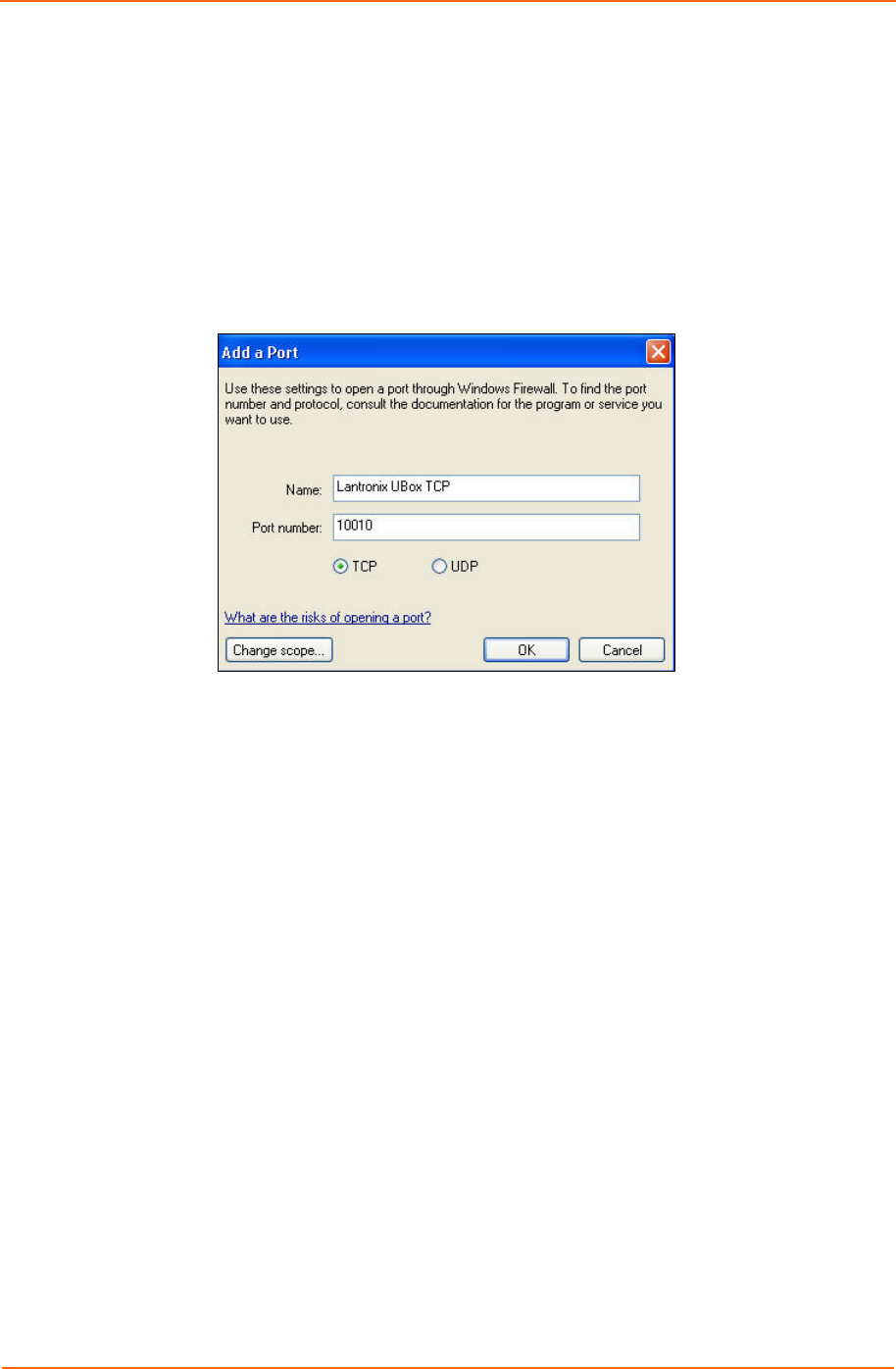

Figure 7-12. Add a Port Window - TCP
2. In the Name field, enter something descriptive like “Lantronix UBox TCP.”
3. In the Port number field, type 10010.
4. Select TCP.
5. Click OK.
To close the remaining windows:
1. Click the OK buttons on the remaining windows.
Your firewall is now configured to allow access to the Lantronix UBox. If you have
multiple computers, please repeat these steps for every computer that will access the
UBox.
UBox User Guide 68
