Distributed by: Grid Connect Inc. 1841 Centre Point Cr. #143 Naperville, IL 60563 +1 630 245-1445, +1 630 245-1717 FAX www.gridconnect.com | www.ipenabled.com | www.factorycomm.
Trademark UBox is a trademark of Lantronix. Other brand names are trademarks or registered trademarks of their respective holders. Copyright Copyright © 2005, Lantronix. All rights reserved. No part of the contents of this book may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. The information contained herein is subject to change without notice. Printed in the United States of America. Contacts Distributed by: Grid Connect Inc. 1841 Centre Point Cr.
Contents Figures ______________________________________________________________________ 5 Tables ______________________________________________________________________ 6 1: Using This Guide 7 Purpose and Audience__________________________________________________________ 7 Summary of Chapters __________________________________________________________ 7 2: Introduction 8 Model and Part Numbers ________________________________________________________ 8 Compatible USB Devices______________________________
Contents Device Status ________________________________________________________________ 27 Separating Compound Devices __________________________________________________ 28 Types of USB Devices ___________________________________________________________ 28 Separating Compound Devices ____________________________________________________ 28 5: Changing the UBox's Settings 29 Overview ___________________________________________________________________ 29 Viewing UBox Settings________________________________
Contents A: Status Light Behavior 58 B: Configuring the Windows XP Firewall 61 Step 1 - Determine Which Version of Windows XP is Installed on Your Computer _____________ 61 Step 2 – Access Your Firewall Software (Windows XP and XP Service Pack 1 Only) __________ 62 Step 3a - Add Settings to the Firewall to Allow Communication with the UBox ________________ 64 Step 3b - Access and Configure Your Firewall Software (Windows XP Service Pack 2 Only) ____ 66 C: Compliance 69 FCC __________________________
Contents Figure 7-2. Resetting the UBox ............................................................................................................55 Figure 7-3. Position of Status Lights on the UBox................................................................................58 Figure 7-4. IP Address on Servers Tab................................................................................................62 Figure 7-5. Local Area Connection Properties – Advanced Tab..................................
1: Using This Guide Purpose and Audience The Lantronix UBox USB Device Server makes it possible to share USB devices such as printers, scanners , and storage drives over a Local Area Network. This guide provides the information needed to configure, use, and update the UBox. Summary of Chapters The remaining chapters in this guide include: Chapter Description 2: Introduction Describes the main features, the required hardware and software, and a list of items included with the unit.

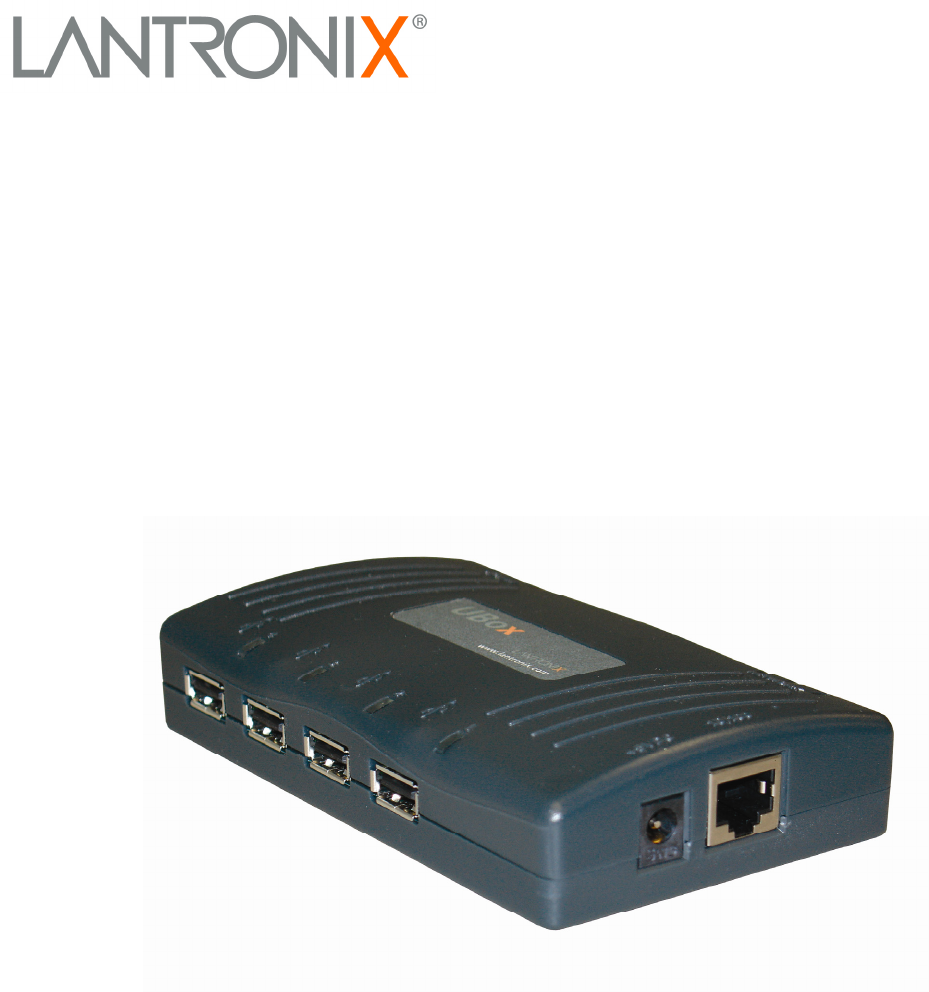

2: Introduction The Lantronix UBox makes it possible to share, access, and control USB devices over a LAN. This User Guide deals with the UBX4100, which supports 10/100 Ethernet connectivity to four USB 2.0 devices at a full 12 Mbps speed per port. Model and Part Numbers Lantronix offers the following part numbers for Model UBX4100, which differ only in the power supply used. Figure 2-1.
Introduction Connectivity to Network The UBox USB Device Server provides the following connections to your network: 10/100 auto sensing RJ45 Ethernet connector Half and full duplex support IP addressing: Static/DHCP/Zeroconfig Requirements Windows: Windows 2000/XP or later What's Inside the Package The Lantronix UBox package includes: UBox User Guide Lantronix UBox USB Device Server Power Supply Quick Start Guide CD with software and User Guide 9
3: Installing the UBox The UBox package has two components: the UBox hardware and the UBox software. Both have their own settings and configuration options. This chapter includes the following topics: Installing the UBox Hardware Installing the UBox Software Uninstalling the UBox Device Server Software Installing the UBox Hardware Warning: Do not connect a USB device to the UBox until you have finished installing the software and hardware.
Installing the UBox Step 2 - Connect the UBox’s Power Supply and Read the LEDs 1. Connect the power supply (included in the box) to the UBox’s power connector. Figure 3-2. UBox Power Supply Power Connector Figure 3-3.
Installing the UBox 2. Once the UBox has power, notice the following: The UBox's status lights turn on and off. After a few seconds, the lights stop blinking. If the UBox is responding properly, the four green USB lights turn on and stay solid. The first green SYSTEM light blinks on and off every few seconds. Ignore any other status lights for now. Figure 3-4. SYSTEM LEDs SYSTEM USB Note: The LEDs on the UBox can also indicate other statuses, such as IP configuration type and UBox status.
Installing the UBox Installing the UBox Software The following instructions are for installing the UBox software for Windows operating systems. To install the UBox Software: 1. Insert the product CD into your CD drive. The CD should start automatically. If the CD does not auto start, open My Computer, locate and then double-click Launch.exe. 2. Click the UBox Software Installation button to install the application. 3. Follow the on-screen instructions.
Installing the UBox 4. To verify that the application sees the UBox Device Server, click the Servers tab. Note: Initially, the UBox displays as Unnamed. During configuration, you can assign a name to it. (See Editing Server Settings: Access Tab on page 31.) Figure 3-6. Servers Tab Displaying a UBox Note: If the UBox does not display, and you have it in a static network, you can use the Override Server Network Settings option on the Advanced menu to configure the UBox.
4: Using USB Devices on the Network Overview This chapter includes the following topics: Connecting your USB device to the UBox's USB port. Connecting to your networked USB device using the Lantronix UBox software: − Using the Connect and Disconnect icons − Using the Auto Connect feature for printers Use your USB device by means of the Lantronix UBox. Note: These instructions help you connect a USB device (e.g., a printer or scanner) to the UBox for the first time.
Using USB Devices on the Network Each USB port has a green status LED light. These lights indicate whether your USB device is supported in the current software/firmware. A solid green light indicates that your device is supported. A slowly blinking light indicates that your USB device is not currently supported. Please contact Lantronix if a light is blinking slowly. 2. On the Start menu, click ProgramsÆLantronix UBox USB Device ServerÆUBox USB Device Server.
Using USB Devices on the Network Action connects and disconnects the The Connect/Disconnect icon USB device. The icon is green for Connect and red for Disconnect. Device Name Name programmed into your USB device by its manufacturer. This name may differ from the actual name and model number of your device. For example, if you have an HP Deskjet 882 printer, it may appear as HP Deskjet 880 or HP Printer. Some USB devices do not have names programmed into them.
Using USB Devices on the Network Figure 4-3. Selected Device Displaying Device Details Note: By default, the UBox is configured for Multi-User Connect Mode. In this mode, all USB devices are shared in a one-at-a-time mode. If a device is in use by another user, that USB device's status displays as In Use By [ComputerName]. Before you can use the device, you must connect to it to gain exclusive access. When you are finished using the device, you must disconnect from it before others can use it.
Using USB Devices on the Network Share Mode Indicates type of connection to the specific USB device: Shared: Allows multiple computers to connect to and disconnect from the USB device. Default. Dedicated: Dedicates the USB device to a specific computer. Password Required If Yes, the user must enter a password to view and update this USB device. Local Password Saved If Yes, the user must enter a password to access the USB device.
Using USB Devices on the Network Using Multiple UBoxes and USB Devices Compound Devices You can connect up to eight USB devices to one Lantronix UBox. While the UBox only has four USB ports, it supports eight devices because of how compound USB devices work. Compound USB devices are devices that have multiple components connected to an embedded USB hub inside one USB device. For example, some compound devices have two components: a scanner and a printer.
Using USB Devices on the Network Using the UBox System Tray The UBox System Tray on the Windows taskbar contains icons that enable you to access the following functions quickly and easily: Access the UBox settings. Configure Auto Connect. Connect to and disconnect from USB devices on your UBox. To use the system tray: 1. Find the Lantronix UBox System Tray icon right corner of your screen (next to the time). . The System Tray is in the lower Figure 4-4. System Tray 2.
Using USB Devices on the Network About Lantronix UBox Opens a window that displays the currently installed software version. UBox Settings Opens the Lantronix UBox application. Auto Connect Settings Opens the Auto Connect window to configure your printers for Auto Connect mode. Connect to devices Allows you to connect to available USB devices. To connect, select your device from the list. USB devices connected to your computer have a check mark next to them.
Using USB Devices on the Network Figure 4-6. Epson Printer Connected To use the auto connect feature: 1. Select the printer on the USB Devices tab and do one of the following: Right-click the UBox icon in the system tray and select Auto Connect Settings. Click the Auto Connect Settings button in the lower right corner. The Lantronix UBox Auto Connect window opens.
Using USB Devices on the Network Figure 4-7. Auto Connect Enabled You may see your printer listed multiple times if you or your printer's software created multiple printers in Windows's Printers and Faxes window. You can either delete the extra printers in the Printers and Faxes window or enable Auto Connect for all of the printers. 1. Select the checkbox next to your printer’s name. The following window opens: Figure 4-8. Disconnect Printer for Auto Connect 2.
Using USB Devices on the Network When the printer has finished printing, Auto Connect disconnects your printer and makes it available to other users. Multiple Print Jobs from Multiple Users If you have two users printing to the same printer, Auto Connect connects whichever computer reaches the UBox first. The second user's print job stays in the queue until the first user finishes printing.
Using USB Devices on the Network Figure 4-9. Forced Device Disconnect on the Advanced Menu A message displays cautioning you to make sure the device is not being used. 3. If you are sure that you want to continue, click the Yes button. The device status is now Available. Using Multi-and Single-User Connect Modes The UBox has two Device Connect Modes: Multi-User and Single-User. Multi-User Mode: By default, the UBox is set to use the Multi-User mode.
Using USB Devices on the Network Please note that you can also configure a single USB device to be dedicated to particular computer and still share other USB devices with other computers. You can select the desired mode on the Servers tab. For details, please see 5: Changing the UBox's Settings. Device Status The USB Devices tab shows the connection status of USB devices connected to the UBox. The following is a table of status descriptions. Table 4-1.
Using USB Devices on the Network Separating Compound Devices Types of USB Devices USB devices fall into one of the following categories: Single USB device: A USB device that contains only one component (for example, a single button mouse). Composite USB device: A device that provides multiple functions but appears as one device (for example, a multifunction printer).
5: Changing the UBox's Settings Overview The Lantronix UBox comes pre-configured for use with most networks. However, you may want to change some of the settings for your specific network or USB devicesharing needs. This chapter describes how to change the UBox's settings and what the settings affect. Note: To modify settings for the UBox software, use the Local Settings tab. These settings are kept on your computer. See 6: Changing Local Software Settings.
Changing the UBox's Settings Figure 5-1. Servers Tab 3. Select a UBox. Detailed information about the UBox displays under Server Details on the right side of the window. 4. Review the following information: Server # Your UBox's MAC/Network address, found on the label on the bottom of the unit. Server Name Name of your UBox. You can modify this name by selecting the server and clicking the Edit Server Config button. Status Current state of your UBox's hardware and software.
Changing the UBox's Settings message, you must upgrade your UBox’s firmware. Select your UBox in the Servers tab and click the Edit Server Config button. (See Updating the UBox's Firmware on page 40.) Temp. Defaults: The UBox hardware is in Temporary Default Settings Mode. This mode allows you to return the UBox to its factory settings temporarily for diagnostics. You can edit your previous settings while you are in this mode. (See Resetting the UBox Hardware on page 55.
Changing the UBox's Settings Figure 5-2. Edit Server Configuration – Access Tab Notes: Firmware Upgrade: After clicking the Edit Configuration button, a message may display informing you about new firmware. You can only update your UBox's settings after you have upgraded your firmware. While updating your UBox, its icon disappears while the new firmware is being loaded. The UBox icon reappears after your UBox has loaded the new firmware. See Updating the UBox's Firmware on page 40.
Changing the UBox's Settings connected to the UBox. Before using a USB device (e.g., a printer or scanner), you must click the Connect icon on the USB Devices tab. Single-User: Only one user can connect to the UBox at one time. Use this mode if there is only one client computer, or if only one client computer will be powered on at a time and connected to the UBox. In this mode all devices on the UBox are automatically connected to the client computer.
Changing the UBox's Settings Editing Server Settings: Network Tab The Network tab contains network settings determining how the UBox communicates on your network. You can configure how the UBox obtains its IP address, what TCP/UDP port it uses to communicate (useful when dealing with firewalls), and the method that the UBox uses to “announce” its presence on your network (This method is known as the discovery mode.) 1. On the Edit Server Configuration window, click the Network tab. Figure 5-3.
Changing the UBox's Settings Note: You can get more information about Zeroconfig (also called Zeroconf) at http://www.zeroconf.org/ Use Static IP: Use this mode if you want your UBox always to use the same network settings. You must enter the IP Address, Subnet Mask, and Gateway for the UBox to communicate with the network. IP Address The UBox must have a unique IP address on the network. Enter the IP address as xxx.xxx.xxx.xxx. Example: 192.168.20.
Changing the UBox's Settings Discovery Mode Select the method the UBox should use to send its UDP data. Broadcast: By default, the UBox uses this method to send discover messages to UBox clients. Broadcast sends UDP messages to every Ethernet-connected device on your network. This is the best setting to use on small networks, home networks, and networks where you have computers with multiple network interfaces (for example, a computer with both wireless and wired connections).
Changing the UBox's Settings 1. On the Edit Server Configuration window, click the USB Device Configuration tab. Figure 5-4. Edit Server Configuration – USB Device Configuration Tab 2. Update the following settings as desired: Server Serial No. Device Name Location/Serial Number Cfg Status (View-only) Corresponds to the UBox’s MAC/Network address (printed on the bottom of your UBox hardware). Name that is programmed into your USB device by its manufacturer.
Changing the UBox's Settings Figure 5-5. Device Configuration Window The following information displays at the top: USB Product Name Name programmed into the USB device by the manufacturer. Vendor ID (VID) Vendor ID programmed into the USB device by the manufacturer. Product ID programmed into the USB device by the manufacturer. Serial number, if any, programmed into the USB device by the manufacturer. Product ID (PID) USB Serial Number: 4.
Changing the UBox's Settings and you move the USB device to a different port, select the Requires Password to Connect checkbox again. Connection Password and Reenter Password If you selected the checkbox above, enter and then reenter a password a user must use to view the USB device. Share Mode Select one of the following types of connection: Shared: Allows multiple computers to connect to and disconnect from the USB device. Default. Dedicated: Dedicates the USB device to a specific computer.
Changing the UBox's Settings Restoring Default Settings Note: Restoring the UBox’s default settings closes all device connections, possibly adversely affecting users connected to them. Please be sure that all devices attached to the UBox are not in use before continuing. To restore the UBox to factory settings: 1. On any of the Edit Server Configuration tabs (Access, Network, or USB Device Configuration), click the Restore Defaults button.
Changing the UBox's Settings Figure 5-7. Servers Tab 2. Click the Update Server Firmware button. An update confirmation window displays. Figure 5-8. Update Server Firmware 3. Click the Update button to start the upgrade. Note: Always have the latest firmware installed on your UBox. We do not recommend using older firmware on your UBox with newer UBox software on your computer (or vice versa).
Changing the UBox's Settings Overriding Server Network Settings You can override server network settings to configure a UBox that has been placed in a static IP-based network. This makes it so that you do not have to change your local TCP settings, connect to the UBox using a direct Ethernet connection, or set up a DHCP address. Note: By default, the UBox gets a DHCP or Zeroconfig IP address. In some cases, this address is on a different subnet from the subnet your computer is on.
Changing the UBox's Settings addresses are in the range 169.254.0.1 to 169.254.255.1. Use this setting if the UBox is in a network that only uses Zeroconfig IP addresses. Note: Zeroconfig (also called Zeroconf) is a networking protocol that allows computers to find each other automatically without the need for you to enter IP addresses, configure DNS servers, or set up DHCP.
6: Changing Local Software Settings To modify the settings for the UBox software, you use the Local Settings tab. These settings are kept on your computer. Note: The Servers tab is for modifying the settings for the UBox. These settings are stored on the UBox hardware. See 5: Changing the UBox's Settings. The Local Settings tab allows you to: Change your client name (used to identify your computer to the UBox hardware and to other UBox users).
Changing Local Software Settings Figure 6-1. Local Settings Tab 2. In the Personal Communications Settings area, update the following information as needed: Client Name Name of your computer that is broadcast to the UBox and to other users on the network. The default name is the computer name specified when your computer was first set up. You can enter a different name in this field. UDP Port This is the UDP port number that the UBox software uses to discover UBox hardware on your network.
Changing Local Software Settings Updating Server Access Settings The Server Access Settings area in the Local Settings tab is for connecting to a UBox that is either password protected or uses active discovery. For most users, Server Access Settings are blank. To update server access settings: 1. In the Server Access Settings area of the Local Settings tab, click the Add button. The Edit Local Server Access window opens. Figure 6-2. Edit Local Server Access Window 2.
Changing Local Software Settings Server # Serial number of the UBox to which you want to connect. Server Name Name of the UBox to which you want to connect. Status Status of the UBox to which you want to connect. Online displays if you have successfully connected to the UBox. Offline displays if the UBox is not detected. Password Displays Yes or No depending on whether a password was specified on the Edit Local Server Access window. Active Discovery.
Changing Local Software Settings Switching Between Sets of UBoxes The UBox software on your computer can only “see” eight UBoxes at a time. This is true even with Active Discovery, which can see UBoxes with different UDP port numbers. To use a ninth UBox, you have two options: UBox User Guide Change both the local UDP port and the UBox UDP port to the same new port number so your computer can see the UBox.
7: Troubleshooting Before You Begin Please make sure that you already have: Installed the latest version of the Lantronix UBox software. Connected your UBox hardware to your network. Connected your computer to the same network as the UBox hardware. Turned on the UBox (by connecting its power supply to an outlet). Turned on your computer. Connected a USB device (for example, a scanner) to the UBox hardware. Installed your USB device's software on your computer.
Troubleshooting Figure 7-1. Status Lights SYSTEM 1 2 3 4 NETWORK 1 2 3 3 2 1 USB Note: For a detailed description of every light and its status, please read A: Status Light Behavior. While the UBox is booting up, different status lights turn on and off. Once the UBox is running, the status lights have new meanings that help troubleshoot the UBox. Boot-Up The following table explains what the SYSTEM status lights mean during the boot-up process.
Troubleshooting SYSTEM Status Lights 2 and 3 Look at the USB status lights 2 and 3 (two red lights under SYSTEM). Status 2 is the red light in the middle, and Status 3 is the rightmost red light). Note the status of each. Status SYSTEM 2 is On / SYSTEM 3 is On SYSTEM 2 is On / SYSTEM 3 is Off SYSTEM 2 is Off / SYSTEM 3 is On Status 2 is Off / Status 3 is Off UBox User Guide Condition The UBox has obtained an IP address using DHCP and does not show any users connected to it.
Troubleshooting USB Status Lights 1-4 Locate the green light under USB that corresponds to the USB port to which your USB device (e.g., printer or scanner) is connected. Status Condition Suggestions Off The UBox does not have power. Check the UBox's power supply and its connection to an outlet. Blinking Blinking may indicate the UBox hardware does not support your USB device or is having problems communicating with the device. Currently, the UBox does not support isochronous USB devices (e.g.
Troubleshooting Troubleshooting: UDP Ports Make sure that your UBox software and hardware are communicating on the same UDP port. To verify this, open the Lantronix UBox application. Your UBox should display. In the Lantronix UBox application, is your UBox listed? Status Is Not Listed Condition The UBox software cannot find the UBox hardware. Suggestions 1. Verify that the UBox software's local UDP port is set to match the UDP port used by the UBox hardware. The default is 10010.
Troubleshooting Troubleshooting: Network Issues Communication Between your PC and the UBox If you have determined via the status LEDs that the UBox is communicating with a specific network, but network communication between the computer and the UBox is not established, you can ping the UBox from the PC trying to communicate with the UBox: To ping the UBox: 1. From the Windows Start menu, select Run, type cmd, and click OK. A command window opens. 2. At the prompt, type ping xxx.xxx.xxx.xxx (where xxx.xxx.
Troubleshooting If you are using a firewall, configure the firewall software to allow UDP traffic on port 10010 and to allow TCP/IP traffic on port 10010. The UBox uses both UDP and TCP/IP to communicate. Note: For step-by-step instructions on configuring the software firewall that is built into Windows XP, see B: Configuring the Windows XP Firewall. Final Step If still have problems with your UBox, try resetting the UBox hardware and then repeating the troubleshooting process.
Troubleshooting Rebooting the UBox into Safe Mode Using the Reset Button If you have made an unwanted change to the UBox settings and can no longer access the UBox, you can boot it into a “safe mode.” In this mode, the UBox reboots using default settings (e.g., multi-user connect mode or default IP mode) and allows you to view and edit the settings. To boot into safe mode: 1. Press and hold the reset button until the lights turn off (this takes 3 or more seconds).
Troubleshooting Technical Support If you are experiencing an error that is not described in this chapter, or if you are unable to fix the error, contact us as follows: Technical Support US Check our online knowledge base or send a question to Technical Support at http://www.lantronix.com/support. Technical Support Europe, Middle East, Africa Phone: +49 (0) 89 31787 817 Email: mailto:eu_techsupp@lantronix.com or mailto:eu_support@lantronix.
A: Status Light Behavior The Lantronix UBox comes equipped with ten LED lights that report the status of the Lantronix hardware. Figure 7-3. Position of Status Lights on the UBox SYSTEM 1 2 3 4 NETWORK 1 2 3 3 2 1 USB The meaning of these lights changes depending on whether the UBox is booting up (you have just turned on the UBox), or if it is running. The two tables on the following pages show all of the possible states of these LED lights and what they mean.
Status Light Behavior Table 7-1. UBox Status Lights—UBox is Booting UP Stage STAGE 1 UBox Is Booting Up Status When the USB UBox is first powered on, the (red) SYSTEM 3 light is ON while the UBox is booting. Troubleshooting If this light never goes off or the 4 (green) USB lights never come on, you may have a hardware failure. Please contact Lantronix Tech Support. If SYSTEM 1 (green) and SYSTEM 2 (red) blink alternately, the UBox firmware has failed to update or load.
Status Light Behavior Table 7-2. UBox Status Lights -- UBox is Running Light Color Status SYSTEM 1 Green Slowing Blinking (on for 3 seconds then off/on): UBox is working. SYSTEM 2 - 3 Red OFF or ON (does not blink): If the light is off, the UBox is not receiving power. If the light is on, the UBox has crashed and needs to be reset (see Resetting the UBox Hardware on page 55). SYSTEM 2= OFF and SYSTEM 3= OFF: UBox is currently working as it detects users connecting to the UBox.
B: Configuring the Windows XP Firewall The following instructions detail how to configure Window XP's built-in firewall for use with the Lantronix UBox. While these instructions are specific for this software, you can apply the basic idea of these instructions to configuring other firewalls. These instructions show you how to: Determine which version of Windows XP is installed on your computer. Access your firewall software.
Configuring the Windows XP Firewall Step 2 – Access Your Firewall Software (Windows XP and XP Service Pack 1 Only) You need to know your UBox's UDP/TCP port numbers and IP address before configuring your firewall. If you already know this information, skip ahead to Step 3a Add Settings to the Firewall to Allow Communication with the UBox on page 64. To obtain your UDP and TCP port numbers: The Lantronix UBox defaults to using UDP port 10010 and TCP/IP port 10010.
Configuring the Windows XP Firewall Dynamic addresses can change at any moment, making it harder for firewalls to keep track of. If you need to use a firewall, we suggest that you configure your UBox to use a static IP address. Also, if your firewall is currently turned on, you will not be able to see the UBox. Turn off the firewall to allow your computer to communicate temporarily with the UBox. To obtain the Advanced Settings window: 1. On the Start menu, click SettingsÆNetwork Settings.
Configuring the Windows XP Firewall 4. Click the Advanced tab, and then click the Settings button. The Advanced Settings window opens Figure 7-6. Advanced Settings Window Step 3a - Add Settings to the Firewall to Allow Communication with the UBox To add your UDP Port to the firewall: 1. In the Advanced Settings window, click the Add button. The Service Settings window opens. Figure 7-7.
Configuring the Windows XP Firewall 2. In the Description of Service field, enter something descriptive like “Lantronix UBox UDP.” 3. In the IP address field, enter the IP address. 4. In both the External Port and Internal Port fields, enter the UDP port number. 5. Select UDP. 6. To save your changes, click OK. You have added support for the UBox's UDP port. Now add a setting for TCP. To add your TCP port to the firewall: Figure 7-8. Service Settings – Adding a TCP 1.
Configuring the Windows XP Firewall Step 3b - Access and Configure Your Firewall Software (Windows XP Service Pack 2 Only) To access your firewall software: 1. From the Start menu, click Control Panel. The Control Panel window opens. 2. Double-click Windows Firewall. The Windows Firewall window opens. (If you do not see Windows Firewall, click Switch to Classic View on the side panel.) Figure 7-9. Windows Firewall Window 3. Select On. 4. Click the Exceptions tab.
Configuring the Windows XP Firewall Figure 7-10. Exceptions Tab To add your UDP port to the firewall: 1. On the Exceptions tab, click the Add Port button. The Add a Port window displays. Figure 7-11. Add a Port Window - UDP 2. In the Name field, enter something descriptive like “Lantronix UBox UDP.” 3. In the Port number field, type 10010.
Configuring the Windows XP Firewall 4. Select UDP. 5. Click OK. To add your TCP port to the firewall: 1. On the Exceptions tab, click the Add Port button. The Add a Port window displays. Figure 7-12. Add a Port Window - TCP 2. In the Name field, enter something descriptive like “Lantronix UBox TCP.” 3. In the Port number field, type 10010. 4. Select TCP. 5. Click OK. To close the remaining windows: 1. Click the OK buttons on the remaining windows.
C: Compliance FCC United States FCC DECLARATION OF CONFORMITY We, Lantronix, at 15353 Barranca Parkway Irvine, CA 92618 USA (949) 353-3990 declare under our sole responsibility that the Lantronix UBox USB Server, Model UBX4100 complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Compliance CE Mark Declaration of Conformity (According to EN 45014) Manufacturer's Name and Address Lantronix 15353 Barranca Parkway Irvine, CA 92618 USA (949) 353-3990 Declares that the product: Product Name: UBox USB Device Server Model Number: UBX4100 Conforms to the following Product Specifications: EN 55022: 1998 Class B EN 55024: 1998 following the provisions of the Electromagnetic Compatibility Directive.
Compliance Australia/New Zealand This device complies with AS/NZS 3548 Class B limits for the operation of Information Technology Equipment.
D: Lantronix Software License Agreement This Agreement constitutes a legal agreement between you, the end user, and Lantronix regarding the Lantronix software accompanying this Agreement (‘Software’). You should carefully read the following terms and conditions before installing this software. EITHER CLICKING ON THE ACKNOWLEDGMENT BUTTON BELOW OR INSTALLING THE SOFTWARE INDICATES YOUR ACCEPTANCE OF THESE TERMS AND CONDITIONS. 1. Ownership; Copy Restrictions.
Lantronix Software License Agreement 5. LIMITED WARRANTY. As its only Warranty under this Agreement, Lantronix warrants the media on which the Software is provided to be free from defects in materials under normal use for a period of 90 days from the date of the purchase of the Lantronix UBX4100 hardware.
E: Lantronix Warranty Lantronix warrants each Lantronix product to be free from defects in material and workmanship for a period of TWO YEARS after the date of shipment. During this period, if a customer is unable to resolve a product problem with Lantronix Technical Support, a Return Material Authorization (RMA) will be issued. Following receipt of an RMA number, the customer shall return the product to Lantronix, freight prepaid.
