10: Maintenance and Diagnostics Settings

EDS Device Servers User Guide 98

Diagnostics Pages

The EDS has several tools for performing diagnostics. To view these diagnostic tools,

click the Diagnostics link in the menu bar to display the Diagnostics: Hardware page.

The available diagnostic tools appear at the top of the page.

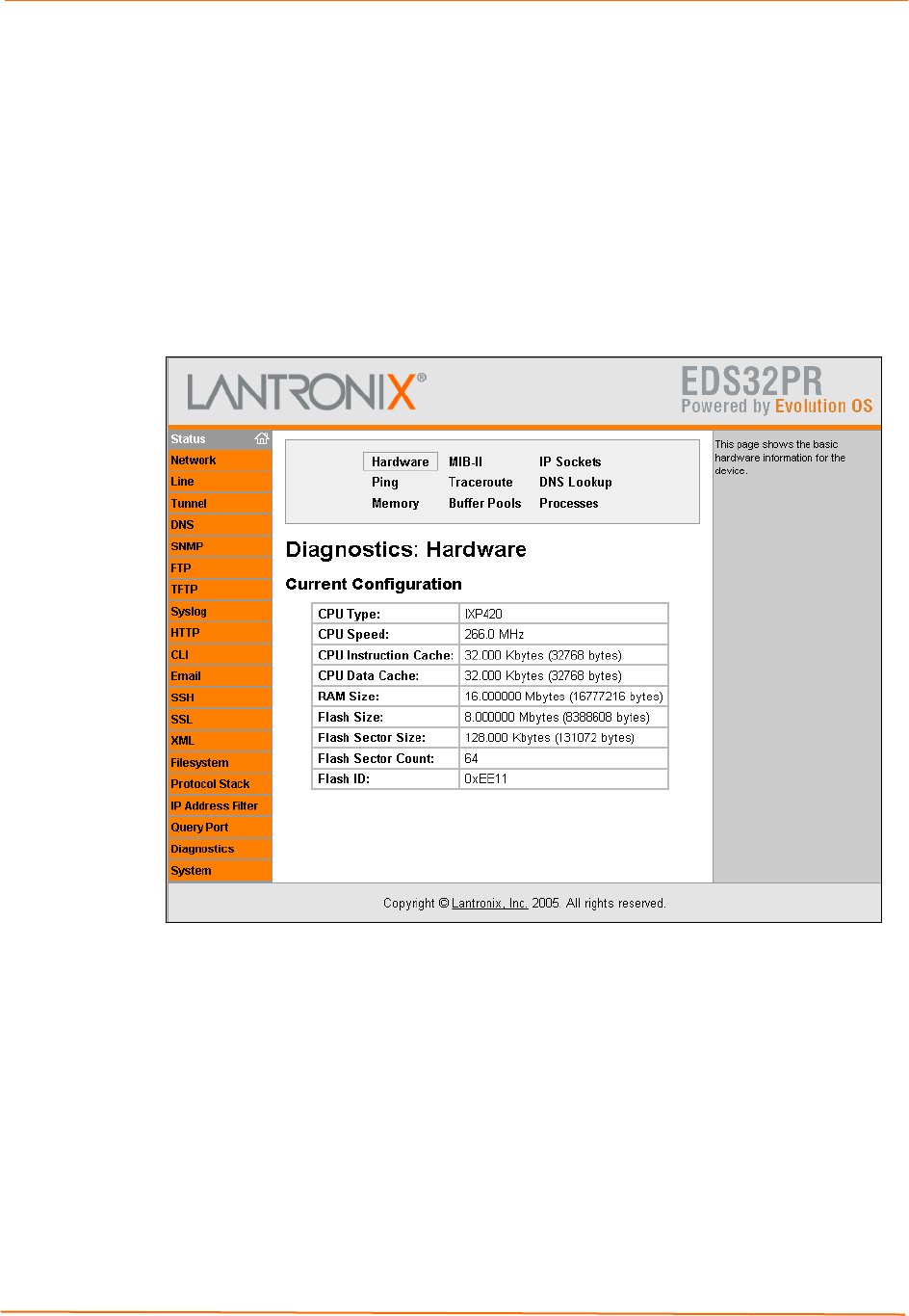

Diagnostics: Hardware Page

The Diagnostics: Hardware page displays when you click Diagnostics in the menu bar. It

also displays when you click Hardware at the top of one of the other Diagnostic pages.

This read-only page displays the current hardware configuration.
