6: Configuration Using the Web Manager

EDS Device Servers User Guide 43

Device Status Page

The Device Status page is the first page that displays when you log into the Web

Manager. It also displays when you click the Status link in the menu bar. This read-only

page shows the EDS product information, network settings, line settings, and tunneling

settings.

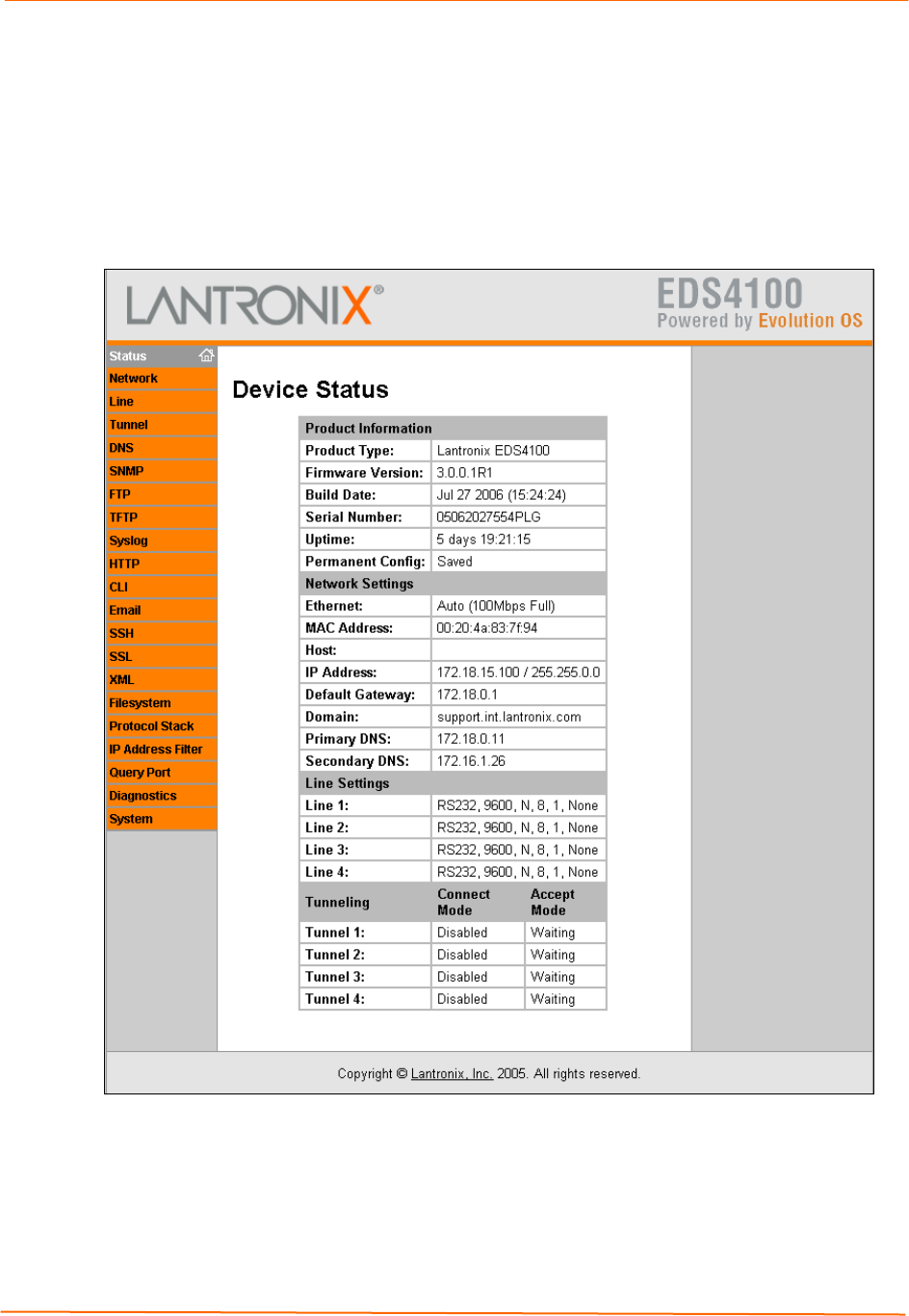

Figure 6-8. Device Status Page (EDS4100)
