3: Installation: EDS4100

EDS Device Servers User Guide 20

Identifying Hardware Components

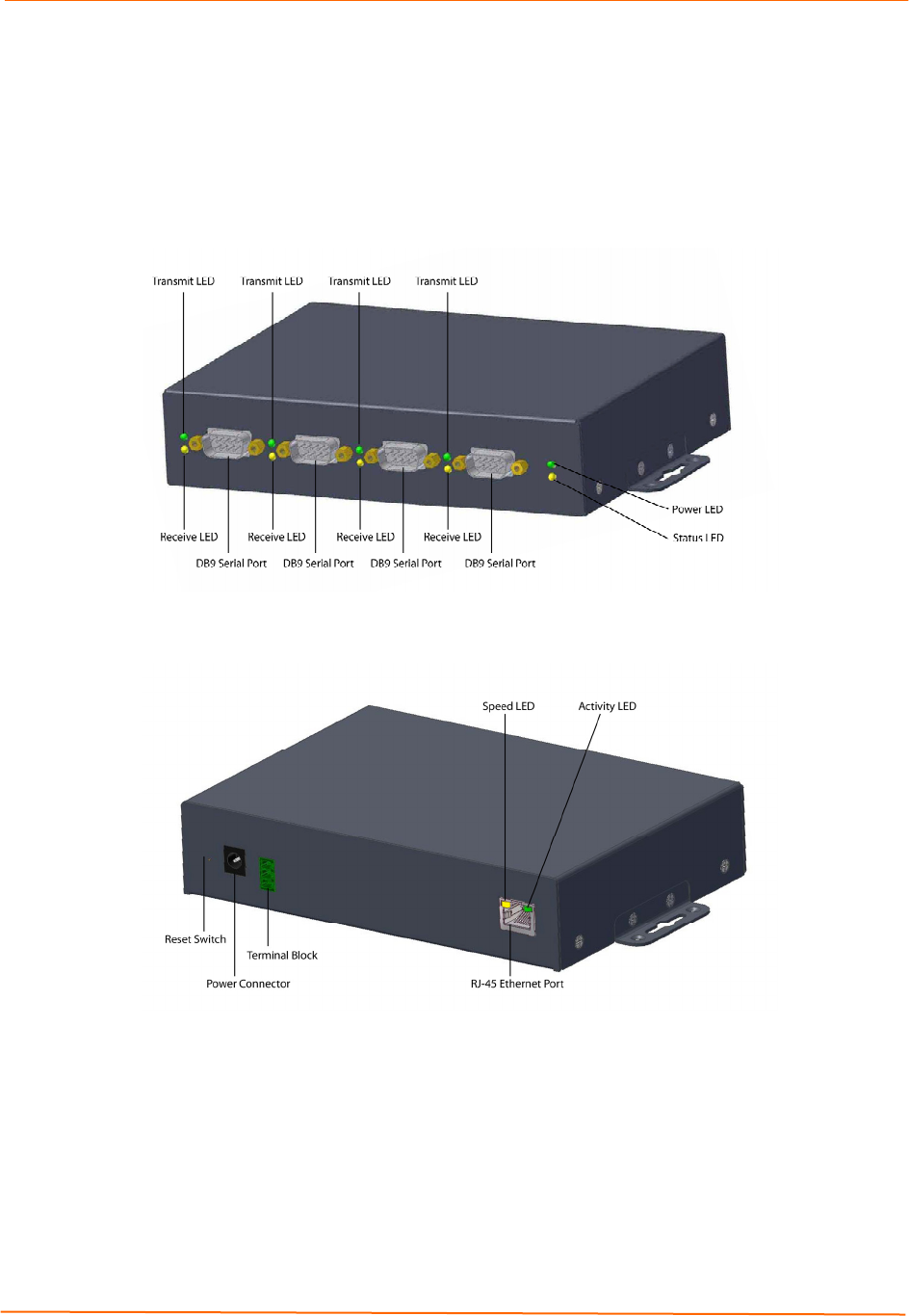

Figure 3-1 shows the hardware components on the front of the EDS4100. Figure 3-2

shows the hardware components on the back of the EDS4100.

Figure 3-1. Front View of the EDS4100

Figure 3-2. Back View of the EDS4100

The bottom of the EDS4100 (not shown) has a product information label. This label

contains the following information:

 Bar code

 Serial number

 Product ID (name)

 Product description

 Hardware address (also referred to as Ethernet or MAC address)

 Agency certifications
