Pump Protection Separators Installation Guide
1365 North Clovis Avenue
Fresno, Ca. 93727 USA
Telephone: [phone]
FAX: [phone]
www.lakos.com
[e-mail]
LAKOS Separators and Filtration Solutions are
manufactured and sold under one or more of
the following U.S. Patents:
5,320,747; 5,338,341; 5,368,735; 5,425,876;
5,571,416; 5,578,203; 5,622,545; 5,653,874;
5,894,995; 6,090,276; 6,143,175; 6,167,960;
6,202,543; 7,000,782; 7,032,760 and
corresponding foreign patents, other U.S.
and foreign patents pending.
Limited Warranty
All products manufactured and marketed
by this corporation are warranted to be
free of defects in material or workmanship
for a period of at least one year from date
of delivery. Extended warranty coverage
applies as follows
All LAKOS PPS Separators: Five year warranty.
All other components: 12 months from
date of installation; if installed 6 months
or more after ship date, warranty shall
be a maximum of 18 months from ship
date. If a fault develops, notify us, giving
a complete description of the alleged
malfunction. Include the model number(s),
date of delivery and operating conditions
of subject product(s). We will subsequently
review this information and, at our option,
supply you with either servicing data or
shipping instruction and returned materials
authorization. Upon prepaid receipt
of subject product(s) at the instructed
destination, we will then either repair or
replace such product(s), at our option, and if
determined to be a warranted defect, we will
perform such product(s) at our expense.
This limited warranty does not cover any
products, damages or injuries resulting
from misuse, neglect, normal expected
wear, chemically-caused corrosion,
improper installation or operation
contrary to factory recommendation. Nor
does it cover equipment that has been
modied, tampered with or altered without
authorization. No other extended liabilities
are stated or implied and this warranty in
no event covers incidental or consequential
damages, injuries or costs resulting from any
such defective product(s).
LS-773A (Rev. 1/14)
The Complete Family of
LAKOS Irrigation and Landscape
Filtration Solutions
Reference LS-848
See www.LAKOS.com for more information
Separators and Filtration Solutions

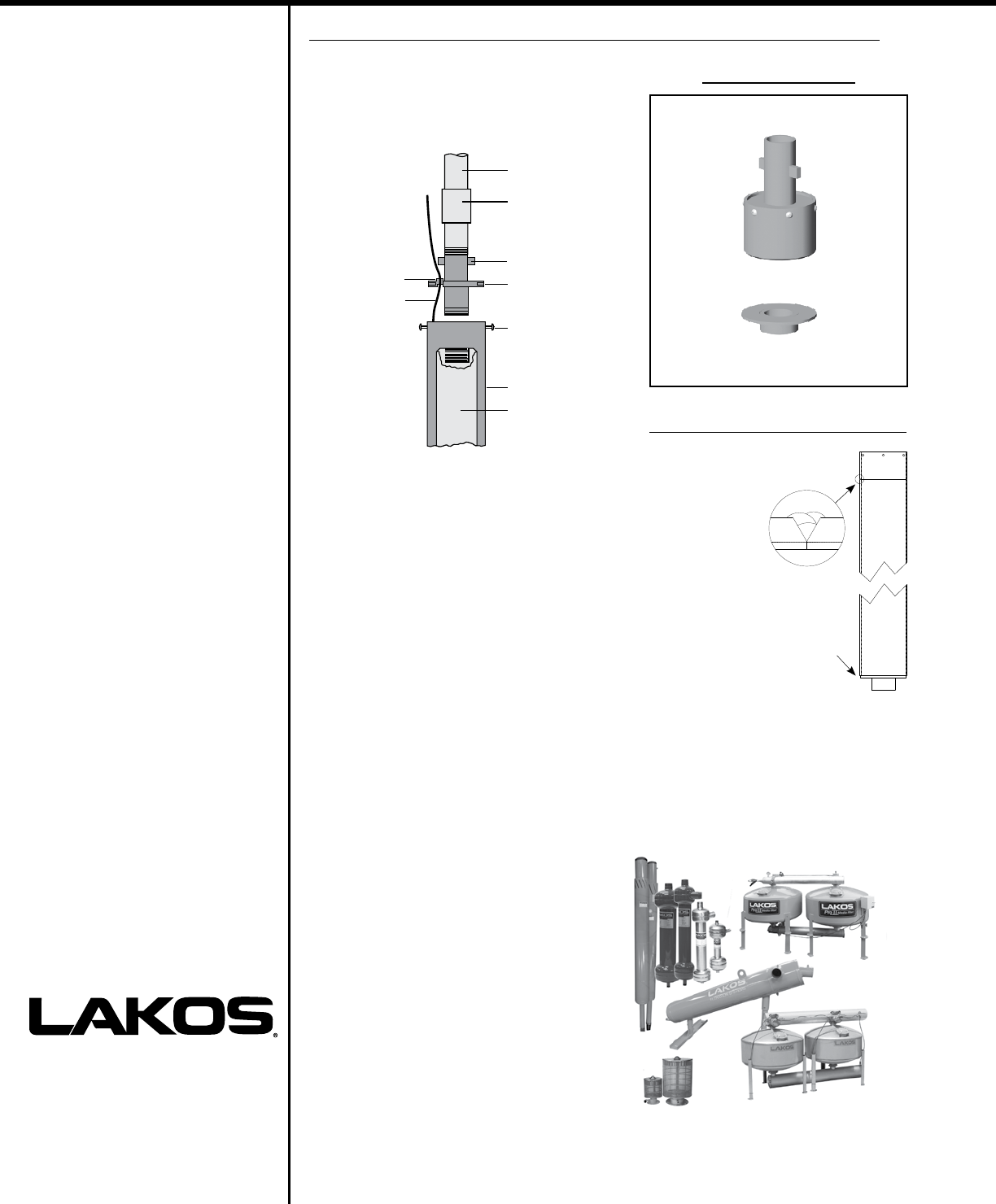

Enclosing the Pump in the Shell (submersible pumps only)
The pump enclosure shell is designed to make
certain that all water entering the pump is rst
drawn through the separator. This requires
that the pump intake be properly shielded as
described below.
1. Remove the riser assembly from the shell by
removing the stainless steel set screws.
2. Attach the riser assembly to the pump’s
discharge.
3. Thread the pump’s electrical cord through the
opening in the rise plate. A rubber grommet is
provided to establish a good seal.
4. Slide the pump into the shell and secure riser
with the screws.
5. Gap between riser plate and shell should be
sealed with a waterproof plastic sealant, putty
or caulking compound to prevent water entry
at this point.
6. Attach apper valve before attaching riser to
column pipe.
7. Pump and shell assembly is now ready for
installation. A pair of lifting lugs is provided to
make hoisting and adding column pipe easy.
Shell assembly should be attached directly to
the separator unit (see diagram, page 3).
Column
Pipe
Threaded
Coupling
Lifting
Lugs
Riser
Plate
Screw
Shell
Pump
Pump’s
Electrical
Cord
Rubber
Grommet
LAKOS supplies the TOP
and the BOTTOM
Customer supplies the pipe
Shell Kit Welding Instructions
Optional Shell Kit
1. Chamfer pipe ends
to 30° with a 1/16”
landing
2. Align pipe and weld
30°
30°
30°
30°
Fillet weld
