12 A PPLICATION N OTE FOR S URFACE M OUNT M ODULES
12.1. Introduction
Laird surface mount modules are designed to conform to all major manufacturing guidelines. This application
note is intended to provide additional guidance beyond the information that is presented in the user manual.
This application note is considered a living document and is updated as new information is presented.
The modules are designed to meet the needs of a number of commercial and industrial applications. They are
easy to manufacture and they conform to current automated manufacturing processes.
12.2. Shipping
12.2.1. Tray Package
Modules are shipped in ESD (Electrostatic Discharge) safe trays that can be loaded into most manufacturers pick
and place machines. Layouts of the trays are provided in Figure 16.

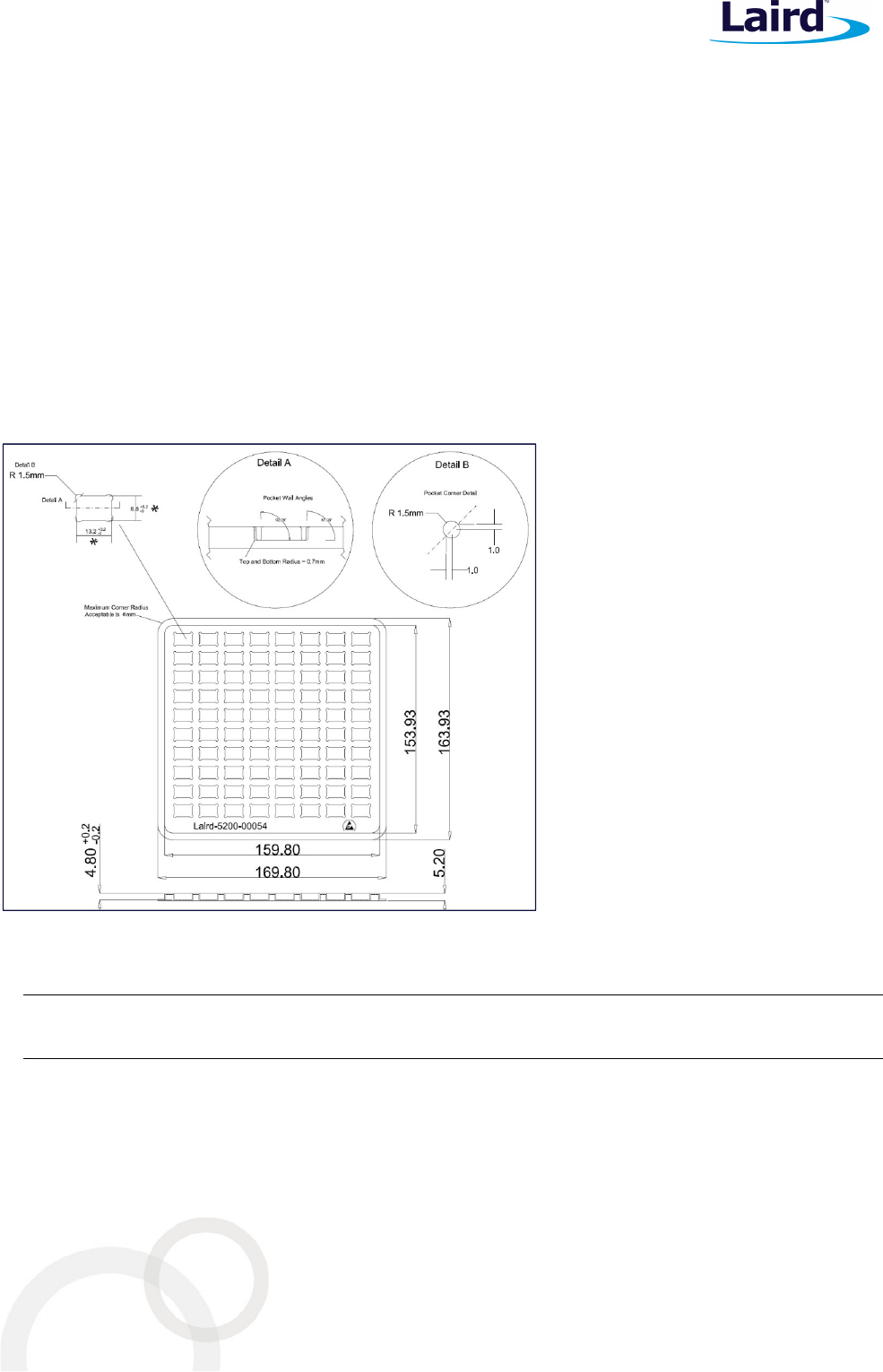

Figure 16: Shipping tray layout
12.2.2. Tape and Reel Package Information
Note: Ordering information for Tape and Reel packaging is an addition of T/R to the end of the full
module part number. For example, BT860 becomes BT860-Sx-xx-T/R.
