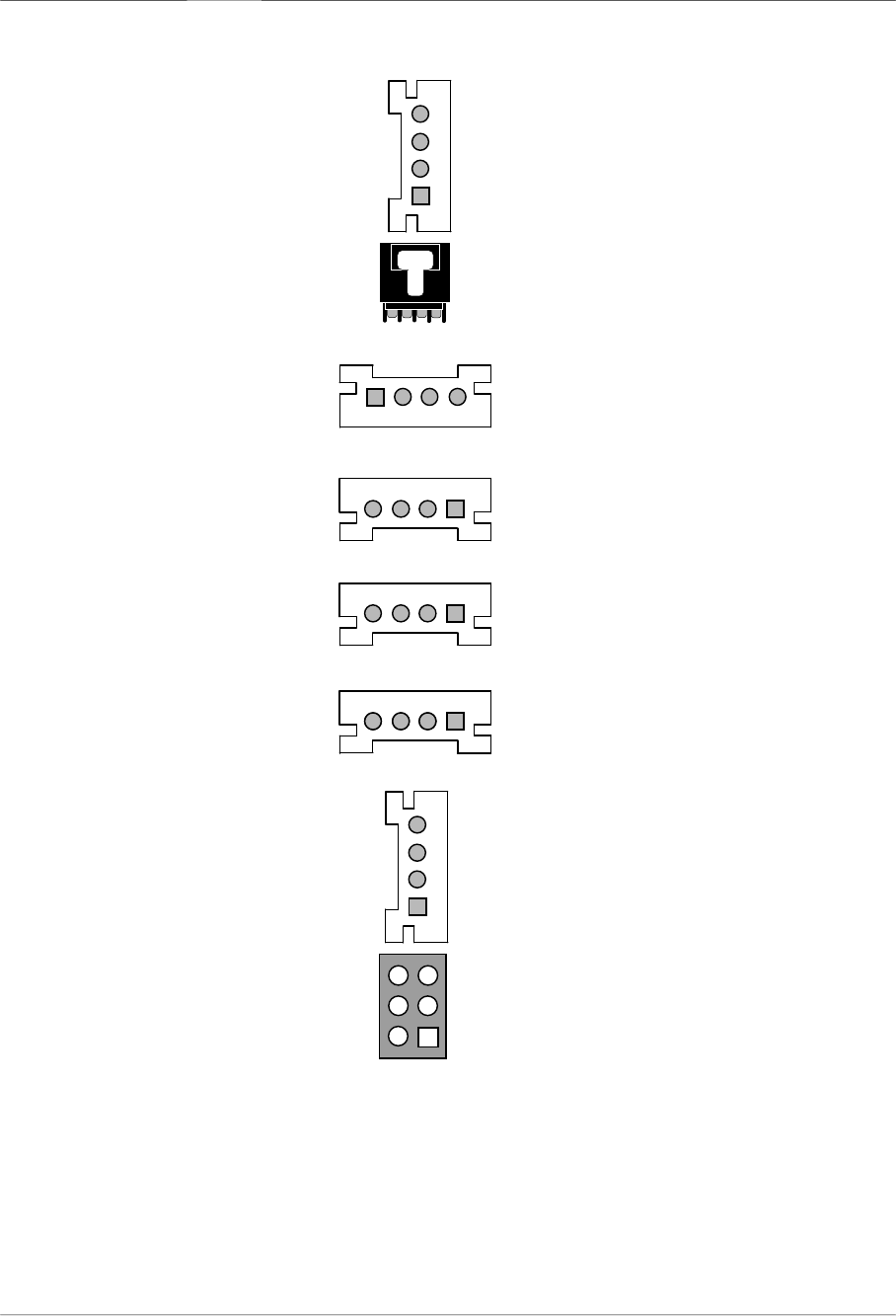

1.6.3. Audio Connectors:
L: LEFT CHANNEL SIGNAL
J6/J7/J8/J9:
G: GROUND
R: RIGHT CHANNEL SIGNAL
J10: ATAPI
L: LEFT CHANNEL SIGNAL
CD-Audio
G: GROUND
R: RIGHT CHANNEL SIGNAL
J11: CD-Audio
L: LEFT CHANNEL SIGNAL
G: GROUND
R: RIGHT CHANNEL SIGNAL
J12: AUX In
L: LEFT CHANNEL SIGNAL
G: GROUND
R: RIGHT CHANNEL SIGNAL
J13: TAD/Voice Modem
1 PHONE IN
2 GROUND
3 GROUND
4 MONO OUT
J14: VIDEO IN
L: LEFT CHANNEL SIGNAL
G: GROUND
R: RIGHT CHANNEL SIGNAL
J15: SPDIF
1 SPDIF OUTPUT
2 GROUND
3 GROUND
4 SPDIF OUTPUT
J16: PC/PCI
1 PCGNT #
2 GROUND
3 N.C.
4 PCREQ #
5 GROUND
6 SERIRQ #
GLGR
LGGR
RGGL
4321
