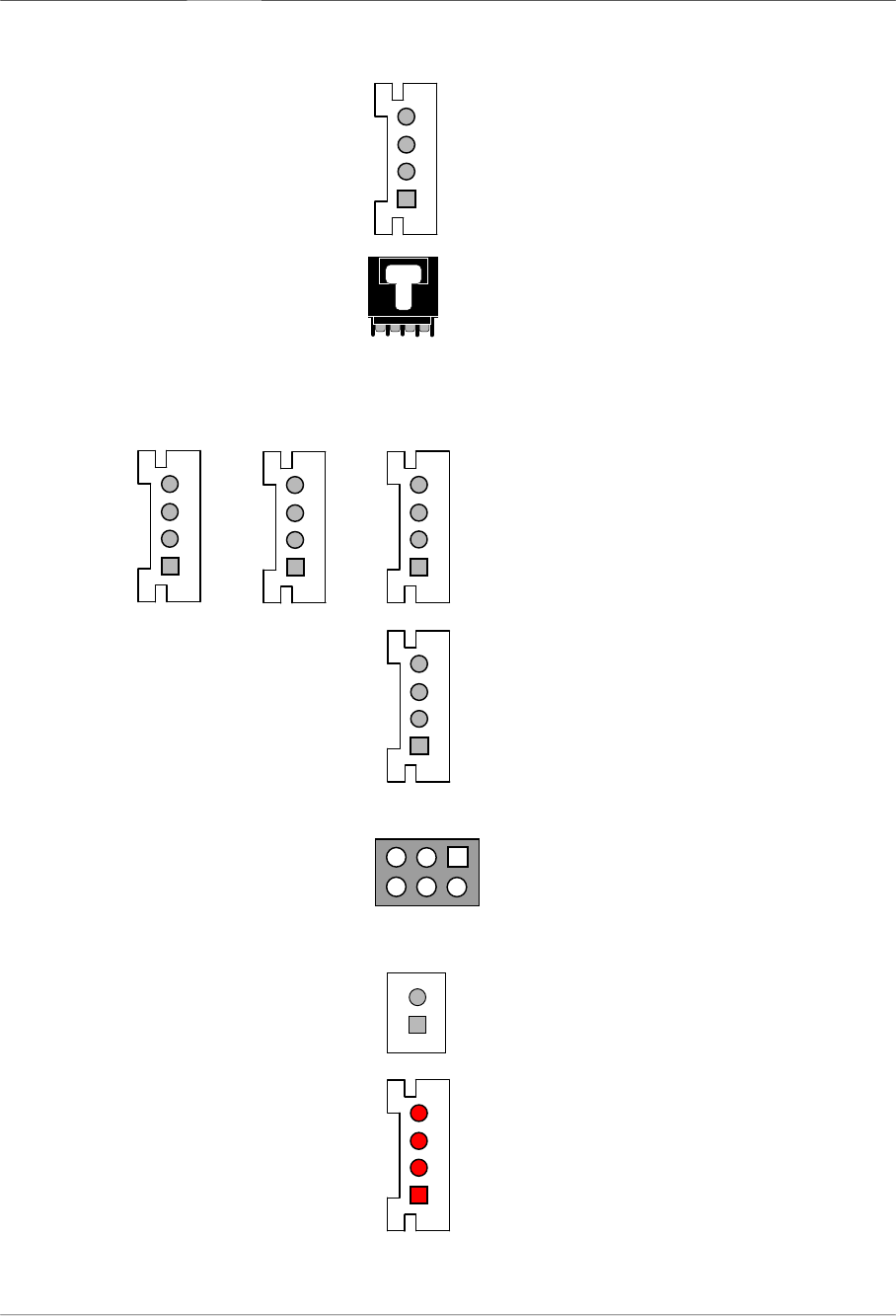

1.8.5. Audio Connectors:
J6/J7/J8/(J9):
L: LEFT CHANNEL SIGNAL
(Option) G: GROUND
R: RIGHT CHANNEL SIGNAL
J10: ATAPI
L: LEFT CHANNEL SIGNAL
CD-Audio
G: GROUND
R: RIGHT CHANNEL SIGNAL
J11: J12: J14:
CD-Audio In AUX In VIDEO In
L: LEFT CHANNEL SIGNAL
G: GROUND
R: RIGHT CHANNEL SIGNAL
J13: TAD/Voice Modem
1 PHONE IN
2 GROUND
3 GROUND
4 MONO OUT
1 PCGNT #
J16: PC/PCI
2 GROUND
3 N.C .
4 PCREQ #
5 GROUND
6 SERIRQ #
J19: PC-BEEP
1 PC SPEAKER OUT
(Option) 2 + 5V
J20: SPDIF
1 SPDIF OUTPUT
2 GROUND
3 GROUND
4 SPDIF OUTPUT
R
G
L
G
RGGL
R
G
G
L
4
3
2
1
R
G
G
L
1
35
64 2
R
G
G
L
4
3
2
1
1
2
