User's Manual

YMF724 PCI Sound Card Configuration/Hardware
Page -
10

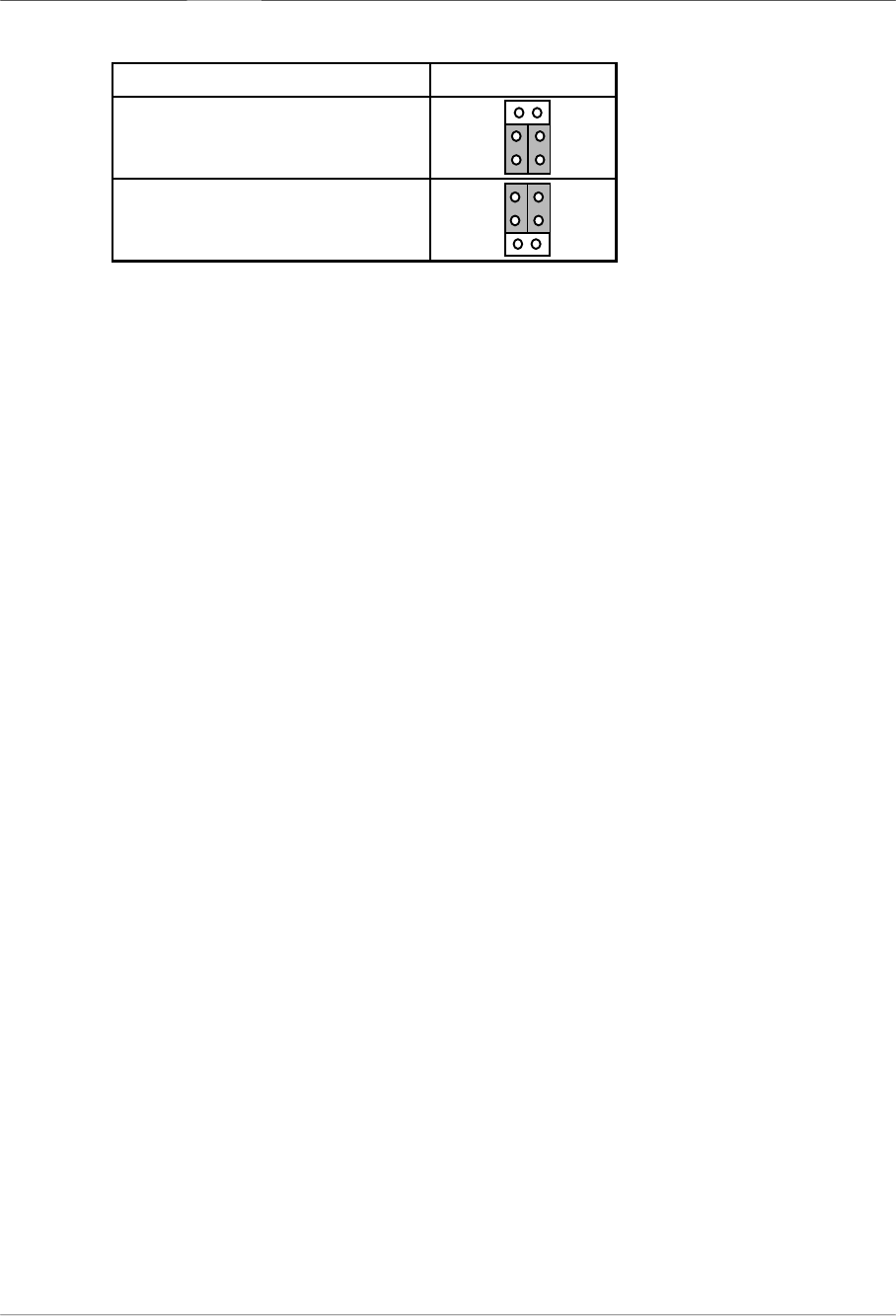

1.7.4. Audio Output Jumper Settings JP1:
Audio Setting
SPEAKER OUT
with
Power Amplifier (Default)
1
3
4
6
LINE OUT
without
Power Amplifier
1
3
4
6
1.8. Connectors for “YMF724 J80” and “YMF724 J81”
“YMF724 J80” includes up to thirteen internal connectors, and five external Jack Ports.
“YMF724 J81” includes up to twelve internal connectors, four external Jack Ports
and one RCA Jack.
1.8.1. External Connectors For “YMF724 J80”:
J1:......................
∅
3.5mm Phone Jack for
LINE IN
J2:......................
∅
3.5mm Phone Jack for
MIC IN
J3:......................
∅
3.5mm Phone Jack for
LINE OUT
J4:......................
∅
3.5mm Phone Jack for
SPEAKER OUT
J5:......................Connector for
MIDI/JOYSTICK
1.8.2. External Connectors For “YMF724 J81”:
J1:......................
∅
3.5mm Phone Jack for
LINE IN
J2:......................
∅
3.5mm Phone Jack for
MIC IN
J3:......................
∅
3.5mm Phone Jack for
AUDIO OUT
J4:......................RCA Jack for
SPDIF OUT
J5:......................Connector for
MIDI/JOYSTICK
1.8.3. Internal Connectors For “YMF724 J80”:
J6:......................Internal connector for
LINE IN
(optional)
J7:......................Internal connector for
MIC IN
(optional)
J8:......................Internal connector for
LINE OUT
(optional)
J9:......................Internal connector for
SPEAKER OUT
(optional)
J10:....................Connector for
CD AUDIO IN
(ATAPI)
J11:....................Connector for
CD AUDIO IN
(JST)
J12:....................Connector for
AUX IN
J13:....................Connector for
TAD/VOICE MODEM
J14:....................Connector for
VIDEO IN
J16:....................Connector for
PC/PCI Legacy Audio SIDEBAND SIGNAL
J19:....................Connector for
PC-BEEP
(optional)
J20:....................Connector for
SPDIF
(optional)
CN3:...................Extension connector for
6-Channel AUDIO
(optional)
