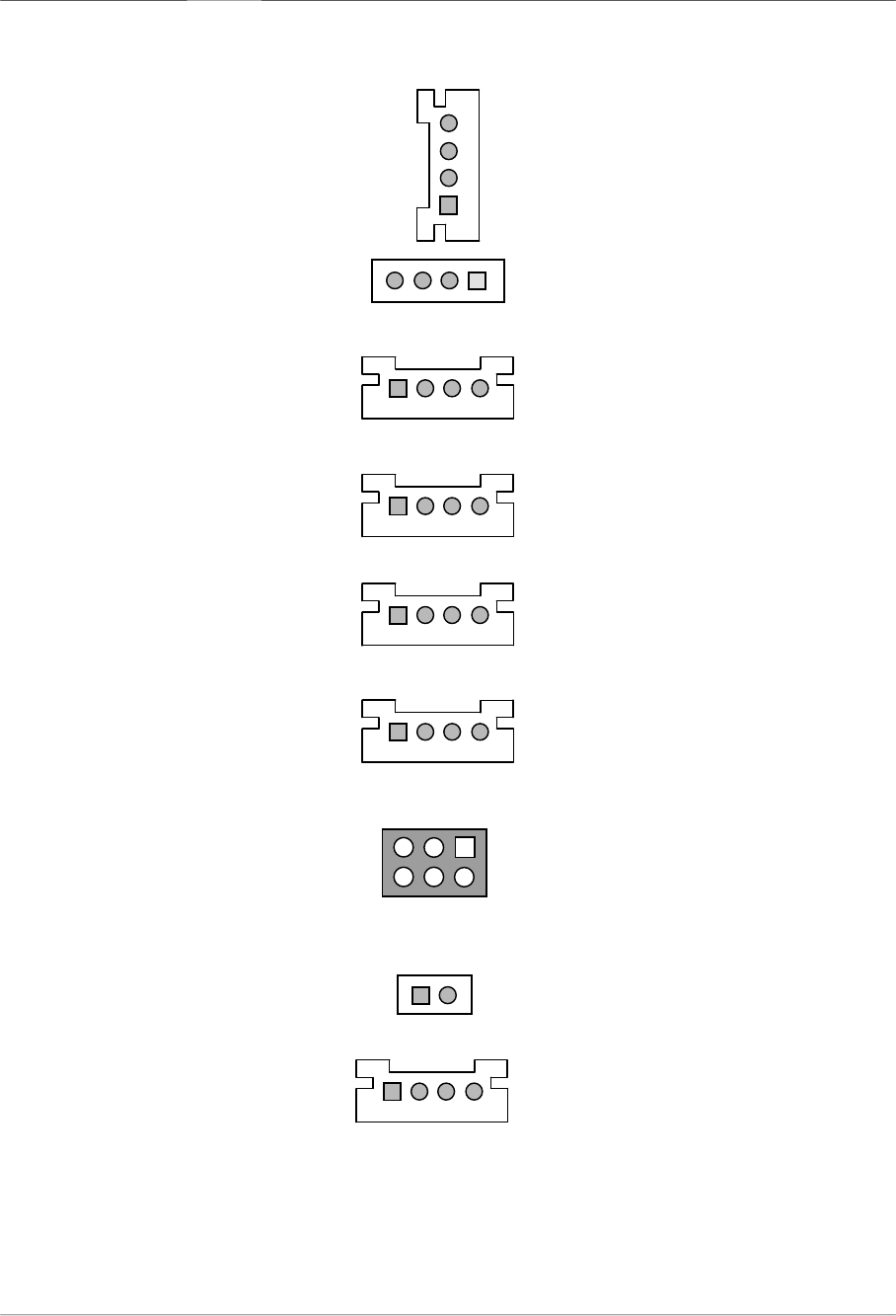

1.7.3. Audio Connectors:
J6/J7/J9:
L: LEFT CHANNEL SIGNAL
G: GROUND
R: RIGHT CHANNEL SIGNAL
J10: CD-Audio
L: LEFT CHANNEL SIGNAL
G: GROUND
R: RIGHT CHANNEL SIGNAL
J11: CD-Audio
L: LEFT CHANNEL SIGNAL
G: GROUND
R: RIGHT CHANNEL SIGNAL
J12: AUX In
L: LEFT CHANNEL SIGNAL
G: GROUND
R: RIGHT CHANNEL SIGNAL
J13: TAD/Voice Modem
1 PHONE IN
2 GROUND
3 GROUND
4 MONO OUT
J14: VIDEO IN
L: LEFT CHANNEL SIGNAL
G: GROUND
R: RIGHT CHANNEL SIGNAL
J16: PC/PCI
1 PCGNT #
2 GROUND
3 N.C.
4 PCREQ #
5 GROUND
6 SERIRQ #
J19: PC BEEP
1 PC SPEAKER OUT
2 + 5V
J20: SPDIF
1 SPDIF OUTPUT
2 GROUND
3 GROUND
4 SPDIF OUTPUT
GLGR
LGGR
1234
LGGR
1234
135
64
2
RGGL
12
R
G
G
L
