Instruction Manual

5.2.4Outputtype.

Mainoutput:*OutputbyP.I.Dcontrol*OnduringHeating(HeaterLEDisON)

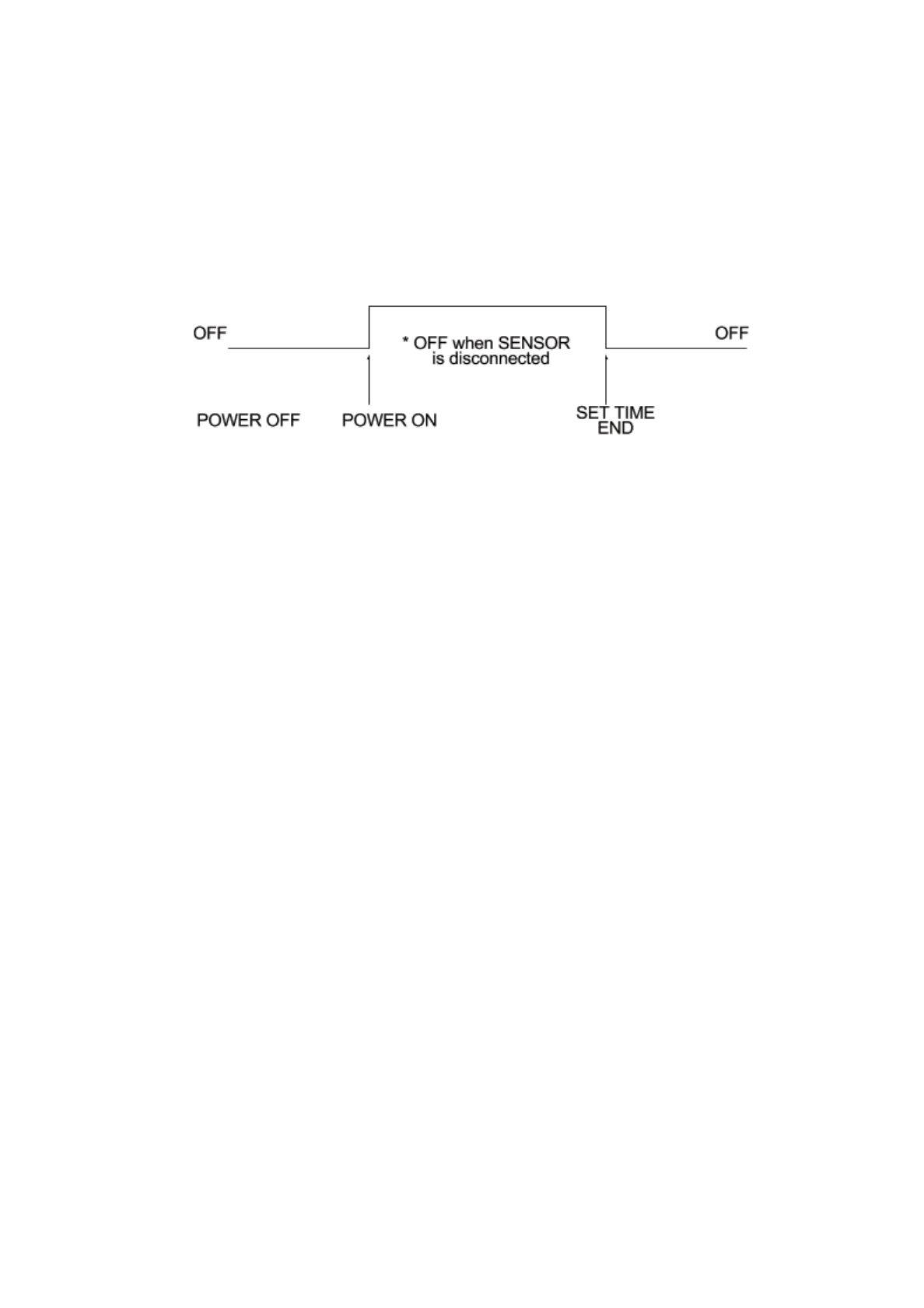

● StartRelay
WhenusedasSTARTRELAY
(whenFACTORYCONFIGURATIONMODE=>SR_AèNONisselected)











5.2.5Howtosetautomatictuningfortemperature.

●
When temperature difference occurs during operation, press AT key for 4 seconds,           
and automatic tuning process will begin, and AT lamp (Auto tuning lamp) will start to blink
              
untilautomatictuningprocessiscompleted.
● When automatic tuning is in process, NEVER change set-values nor OPEN/CLOSE the           
dooruntilautomatictuningprocessiscompleted.
● Press AT key for 4 seconds during Auto Tuning Process , and Auto Tuning Process will               
bestoppedinstantly.



5.3Howtosettemperature

●
Checkratedvoltageoftheequipmentaswellascheckthespecification.
BesuretouseAVR(AutomaticVoltageRegulator)intheplacewithunstablevoltage.
● Connectthepowerplugtothepoweroutlet.
● TurnONtheMainPowerSwitchlocatedontherightsideofthemainbody.
● Turn Power ON by pressing by POWER On/Off Key located on the temperature            
controller.
● PressMODEkeyatfulllengthfor1second.
ThentEmPisshownondisplaywindowofPVside.
Press
◀keyand▲keytosetrequiredtemperature.
● Aftersettingthetemperature,pressMODEkeyonce.
ThentimEisshownondisplaywindowofPVside.
Press◀keyand▲keytosetrequiredtimefortimerfunction.
● When setting on all units is finished, press MODE key at full length for 2 seconds, and                
allsetupvalueswillberesetassetvaluesandreturntonormalmode.




 
