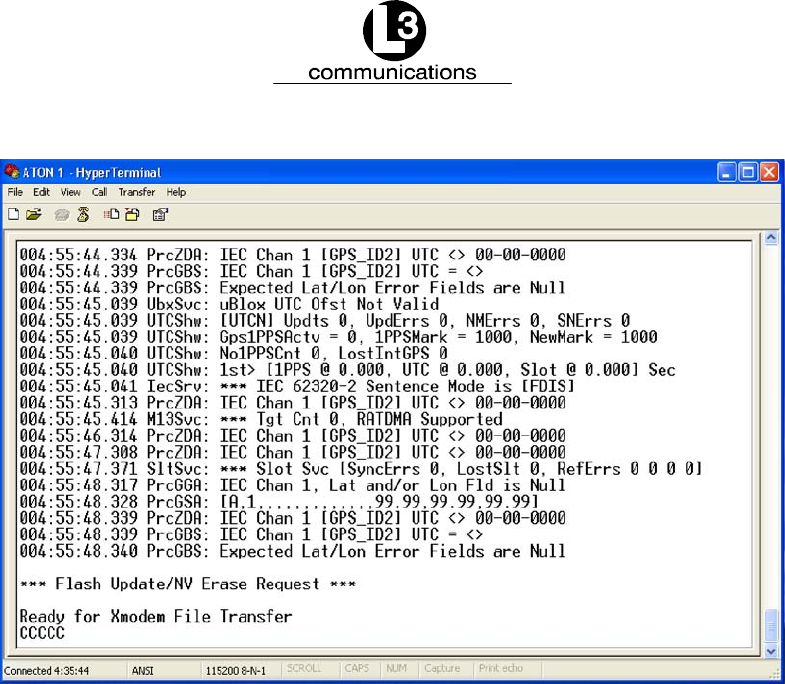

Figure B--1. F lash Update/NV Erase Requ est Screen
(2) In the “HyperTerminal” menu pull-- down bar, click “Transfer” and “Send File.”
(3) When the “Send File” screen opens, click the arrow in the “Protocol” box and
select “Xmodem.”
(4) Click the “Browse” button to locate the ARM binary images, usually located in
the “Aton Images” folder. Find the ARM executable binary image file. An ex-
ample is “AtoN_1_14K.bin.” This name corresponds to Rev 1.14K of the ARM
code. Unless otherwise directed, select the file with the highest version number.
(5) Select the file by double--clicking on it in the file list. Click the “Send” button in
the “Send File” window. As shown in Figure B--2, this begins the actual transfer.
