4.3.10. Control the Acquisition Subsystem
When a daugtherboard is installed in the AIS AtoN, the “Acquisition Subsystem Con-
trol” manages the interface between the motherboard and daugtherboard. This fea-
ture also enables extended MPR operations, which provide payloads for some op-
tional messages. To control the acquisition subsystem, enter “9” in the main System
Configuration Menu, and the screen shown in Figure 4--15 open. Press the “Space
Bar” to enable or disable the acquisition mode. When the “Hit Any Key to Contin-
ue...” message appears, press any key to return to the System Configuration Menu.

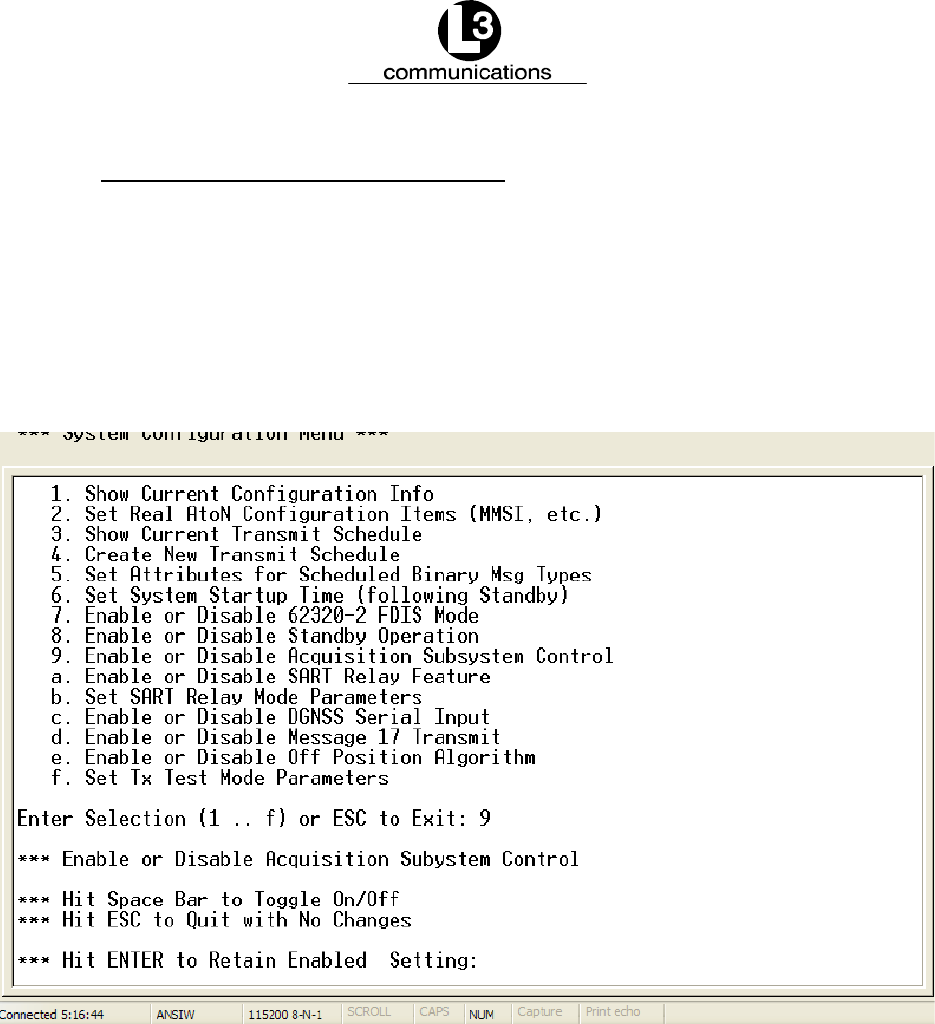

Figure 4--15. Con t rol the Acquisition Subsystem
