4.3.5. Add or Replace Transmit Schedules
To set the transmit data, enter “4” in the main “System Configuration Menu,” and the
screen in Figure 4--10 opens with the message “Adds or Replaces Schedule for
Specified MsgID.” Table 4--3 describes the configurable fields displayed in the last
line of the screen.

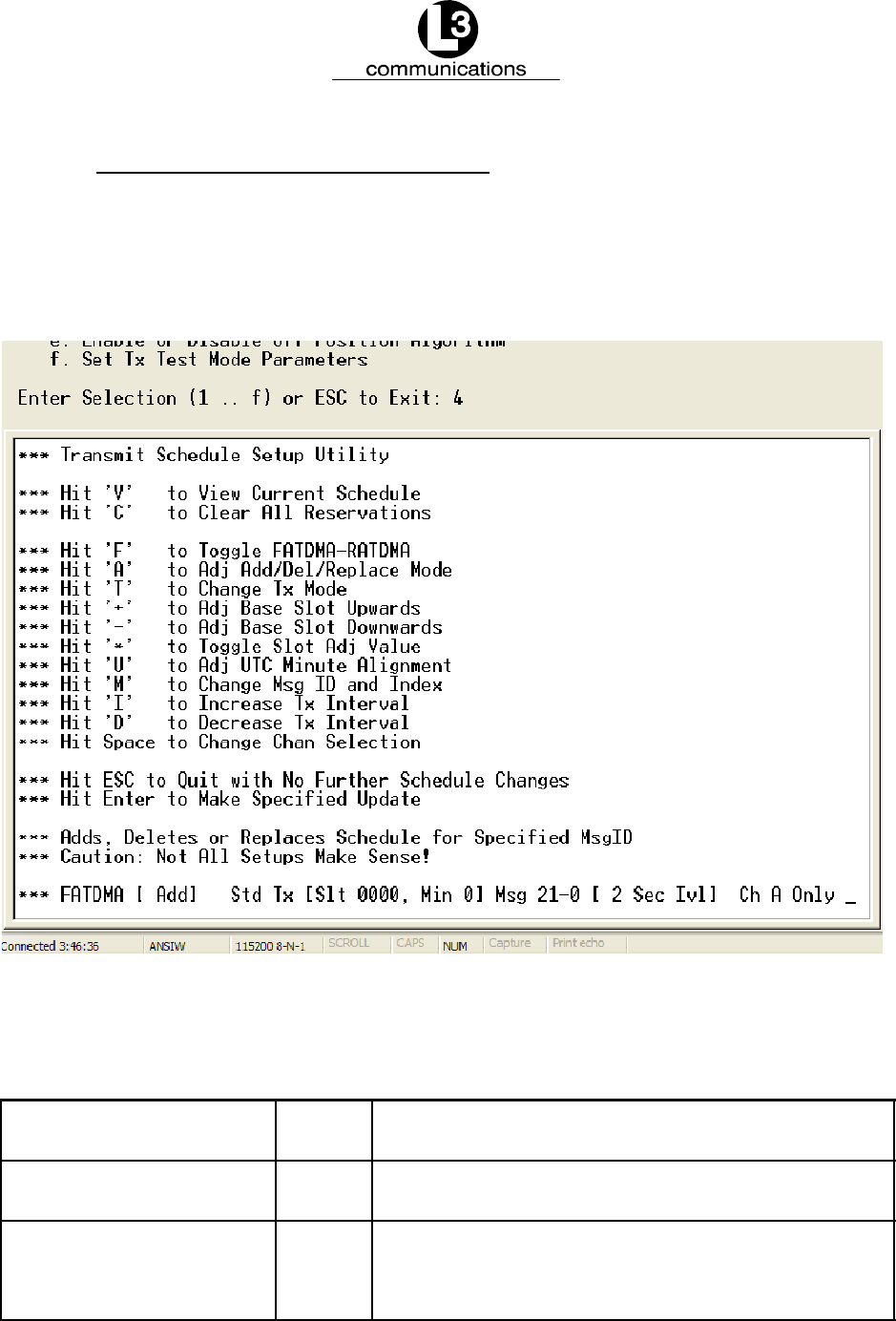

Figure 4--10. Change the Transmit Schedule
Tab le 4--3. Transmit Schedu le Setup Utility Field Descriptions
Field Key
Stroke
Description
FA TDMA / RATDMA F Enables the user to toggle between the FATDMA and
RATDMA formats
[Add]
[Rplc]
[Del]
A Tells the unit that the user is either adding a new transmit
schedule or replacing or deleting the existing schedule
