Configurable Combination Algorithms [Ò<>Ó]
Algorithm Reference-77

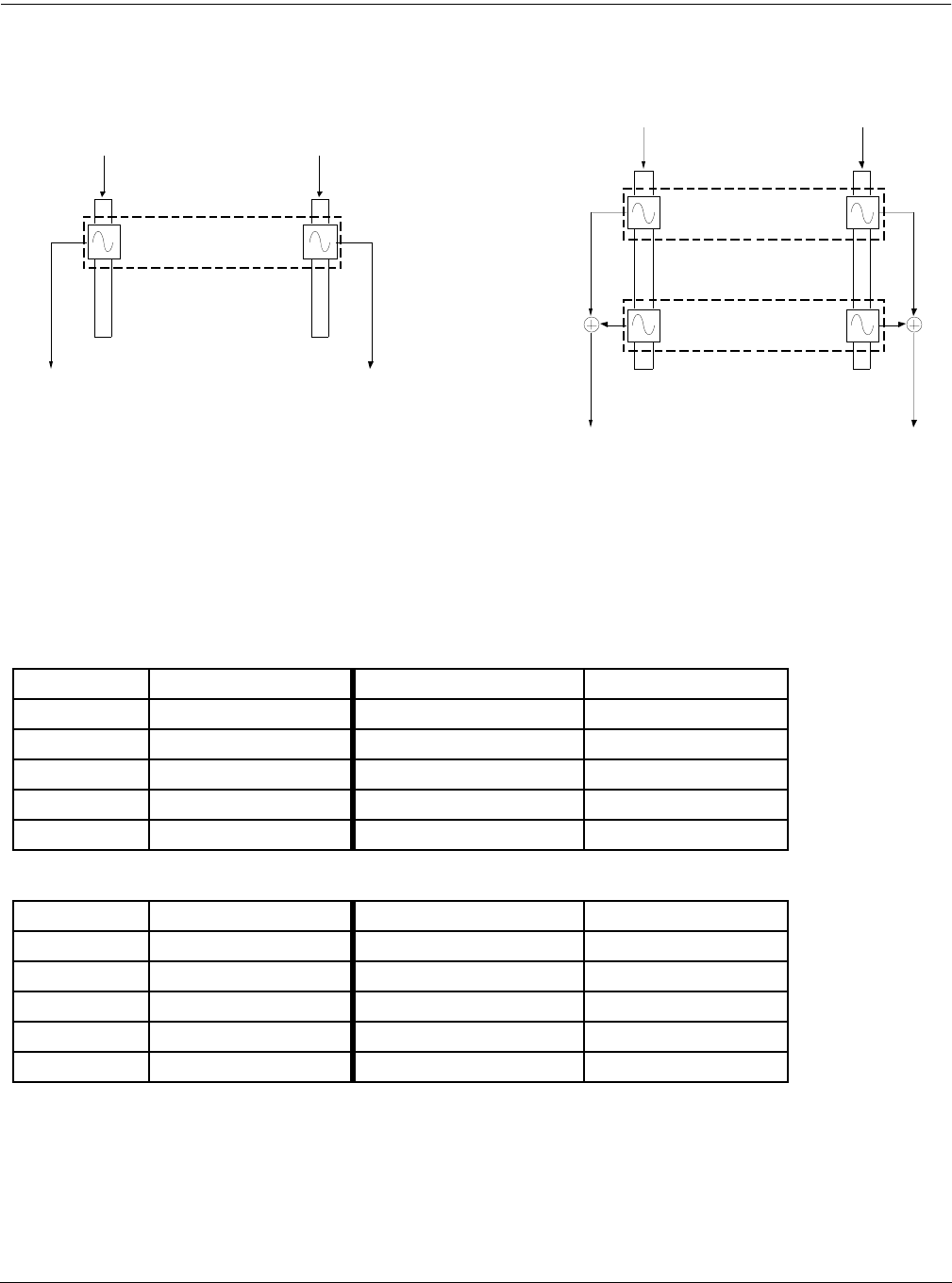

Fig. 3 Ñ LFO control in Link1Tap mode Fig. 4 Ñ LFO control in Link2Tap mode
In addition to the LFO delay taps, the flange offers a static delay tap for creating through-zero flange effects. The
maximum delay time for this tap is 230ms and is controlled by the Fl StatDly parameter. Its feedback amount is
controlled by the Fl StatFB. Separate mix levels for the LFO taps and the static tap are then controlled by the Fl
StatLvl and Fl LFO Lvl controls. The feedback and level controls can polarity-invert each signal by setting them to
negative values.
Chorus:
Flange (PAGE 1):
Ch LFO cfg Dual1Tap... Ch LRPhase 0 to 360 deg
Ch Rate 1 0.01 to 10.00 Hz Ch Rate 2 0.01 to 10.00 Hz
Ch Depth 1 0.0 to 100 ct Ch Depth 2 0.0 to 100 ct
Ch Delay 1 0 to 1000 ms Ch Delay 2 0 to 1000 ms
Ch Fdbk L -100 to 100% Ch Fdbk R -100 to 100%
Ch Xcouple 0 to 100% Ch HF Damp 16 to 25088 Hz
Fl LFO cfg Dual1Tap... Fl LRPhase 0 to 360 deg
Fl Rate 1 0.01 to 10.00 Hz Fl Rate 2 0.01 to 10.00 Hz
Fl Xcurs 1 0 to 230 ms Fl Xcurs 2 0 to 230 ms
Fl Delay 1 0 to 1000 ms Fl Delay 2 0 to 1000 ms
Fl Fdbk 1 -100 to 100% Fl Fdbk 2 -100 to 100%
Fl Phase 1 0 to 360 deg Fl Phase 2 0 to 360 deg
LFOR
Right
Delay
Left
LFOL
Delay
Contro l Set 1
LFO1R
LFO2L
Right
Delay
LFO2R
Left
LFO1L
Delay
Control Set 1
Control Set 2
