FXAlg #154: Flanger 1 ¥ FXAlg #155: Flanger 2
Algorithm Reference-56
FXAlg #154: Flanger 1 ¥
FXAlg #155: Flanger 2
Multi-tap flangers
Allocation Units: 1 for Flanger 1; 2 for Flanger 2
Flanger 1 is a 1-PAU multi-sweep Thru-zero flanger effect with two LFOs per channel.

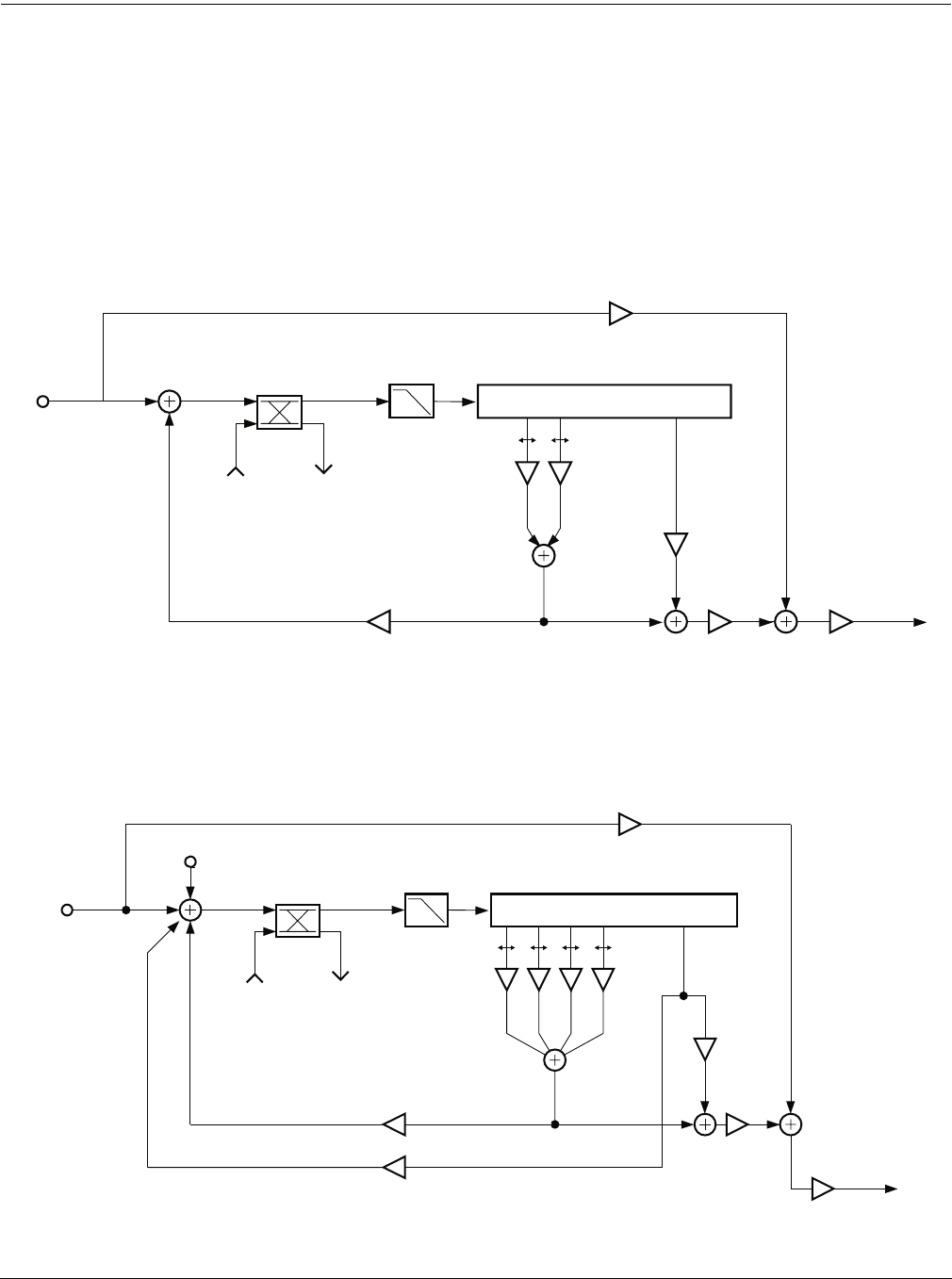

Simplified block diagram of the left channel of Flanger 1; the Right channel is similar.
Flanger 2 is a 2-PAU multi-sweep Thru-zero flanger effect with two LFOs per channel.
Simplified block diagram of the left channel of Flanger 2; the Right channel is similar.
L Input
L Output
Dry
Wet
High Freq
Damping
From Right
Channel
To Right
Channel
Delay
Static
Tap
Level
LFO
Tap
Levels
Out Gain
Feedback
L Input
L Output
Dry
Wet
High Freq
Damping
From Right
Channel
To Right
Channel
Delay
Static
Tap
Level
LFO
Tap
Levels
Out Gain
Noise
LFO Feedback
Static Tap Feedback
