5.2 Make the setting via the rotary switches
You can set the function mode and the addressing at the rotary
switches.
1
2
3

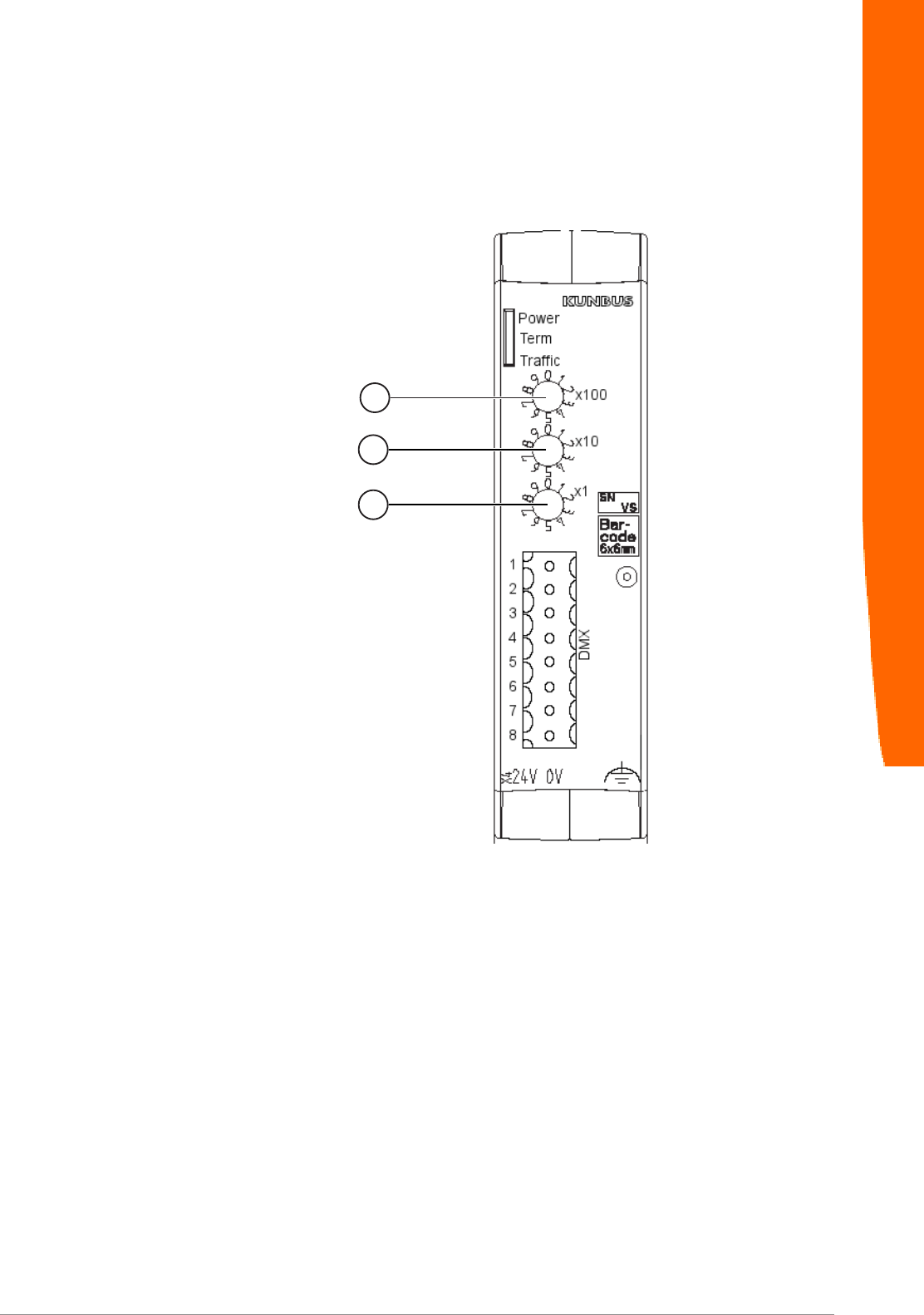

Illustration7: Rotary switch
With each rotary switch, you can set a decimal from 0-9. These 3
values together allow you to set a value range of 0-999.
– Switch 0x100 (1) determines the hundreds digit
– Switch 0x10 (2) determines the tens digit
– Switch 0x1 (3) determines the ones digit
Example: You want to set the value 234.
Switch setting:
– Switch 1: 2
– Switch 2: 3
– Switch 3: 4
The values are interpreted accordingly in the following table:
Configuration
