2.2 Device description
Your measuring device is supplied ready for operation. The factory settings for the operating
data have been made in accordance with your order specifications.
The following compact versions are available:
Version 1: converter directly mounted on cast sensor housing in size DN2.5..6
Version 2: converter and sensor in solid cast BNG construction for DN10 and DN 15
Version 3: converter mounted on conventional sensor construction (DN25 and DN40)

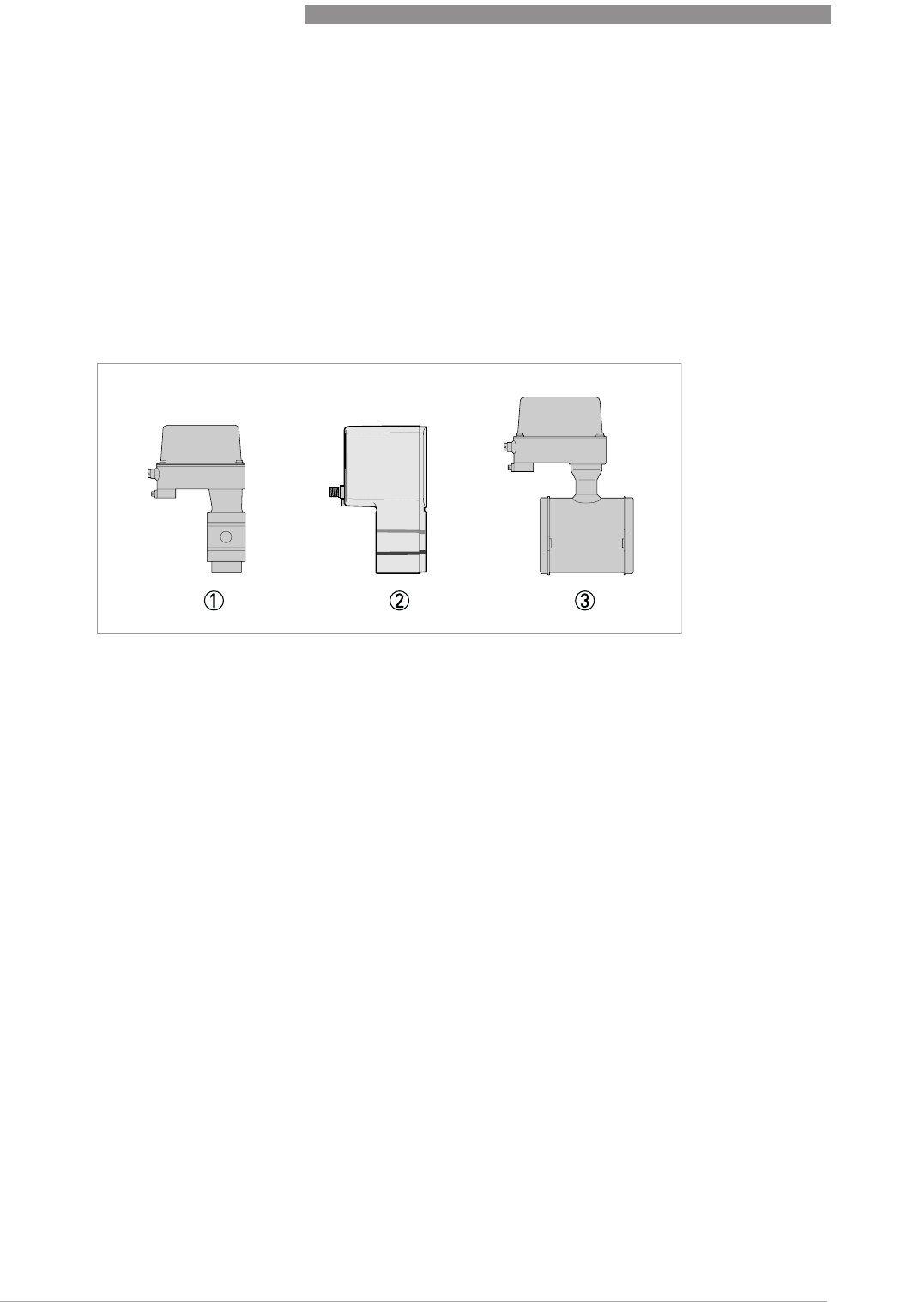

Figure 2-2: Device version
