Instruction Manual

6 TECHNICAL DATA
28
BATCHFLUX 5500 C
www.krohne.com 05/2014 - 4000827703 - HB BATCHFLUX 5500 R03 en
DN25..40

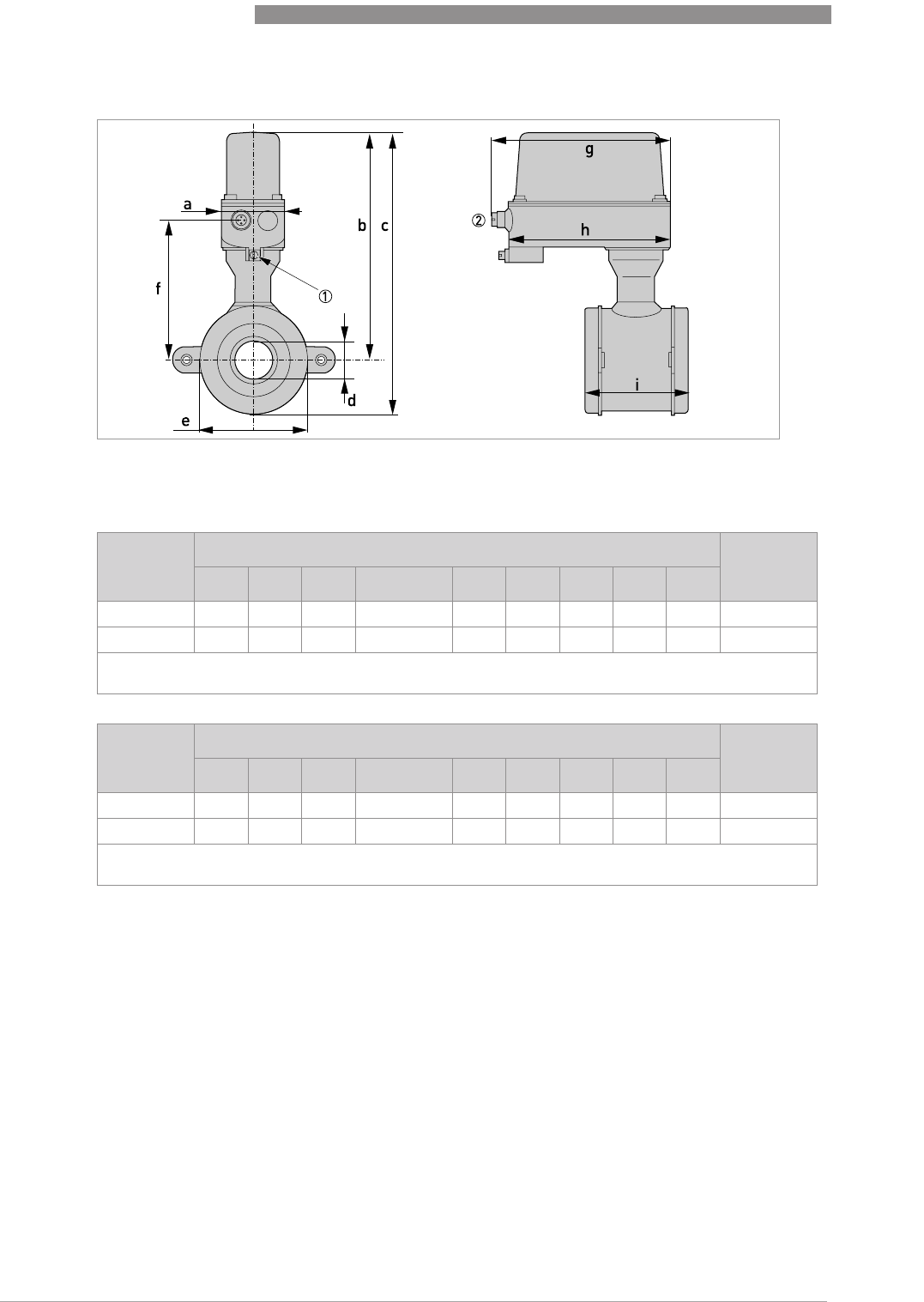

Figure 6-3: Dimensions
1 (Grounding)
2 M12; 5 - 8 pins connector
Nominal
size
Dimensions [mm] Weight [kg]
a b c d e f g h i
DN25 50 170 204 26 → 20 68 102 141 128 58 1.6
DN40 50 177 219 39 → 30 84 117 141 128 83 2.3
Note on dimension d: As the diameter reduces to the middle, the diameter is specified for the inlet and
for the middle
Nominal
size
Dimensions [inches] Weight [lb]
a b c d e f g h i
1" 1.97 6.69 8.03 1.02 → 0.79 2.68 4.02 5.55 5.04 2.28 3.6
1 1/2" 1.97 6.97 8.62 1.54 → 1.18 3.30 4.61 5.55 5.04 3.27 5.1
Note on dimension d: As the diameter reduces to the middle, the diameter is specified for the inlet and
for the middle
