6.3 Dimensions and weights
DN2.5...6

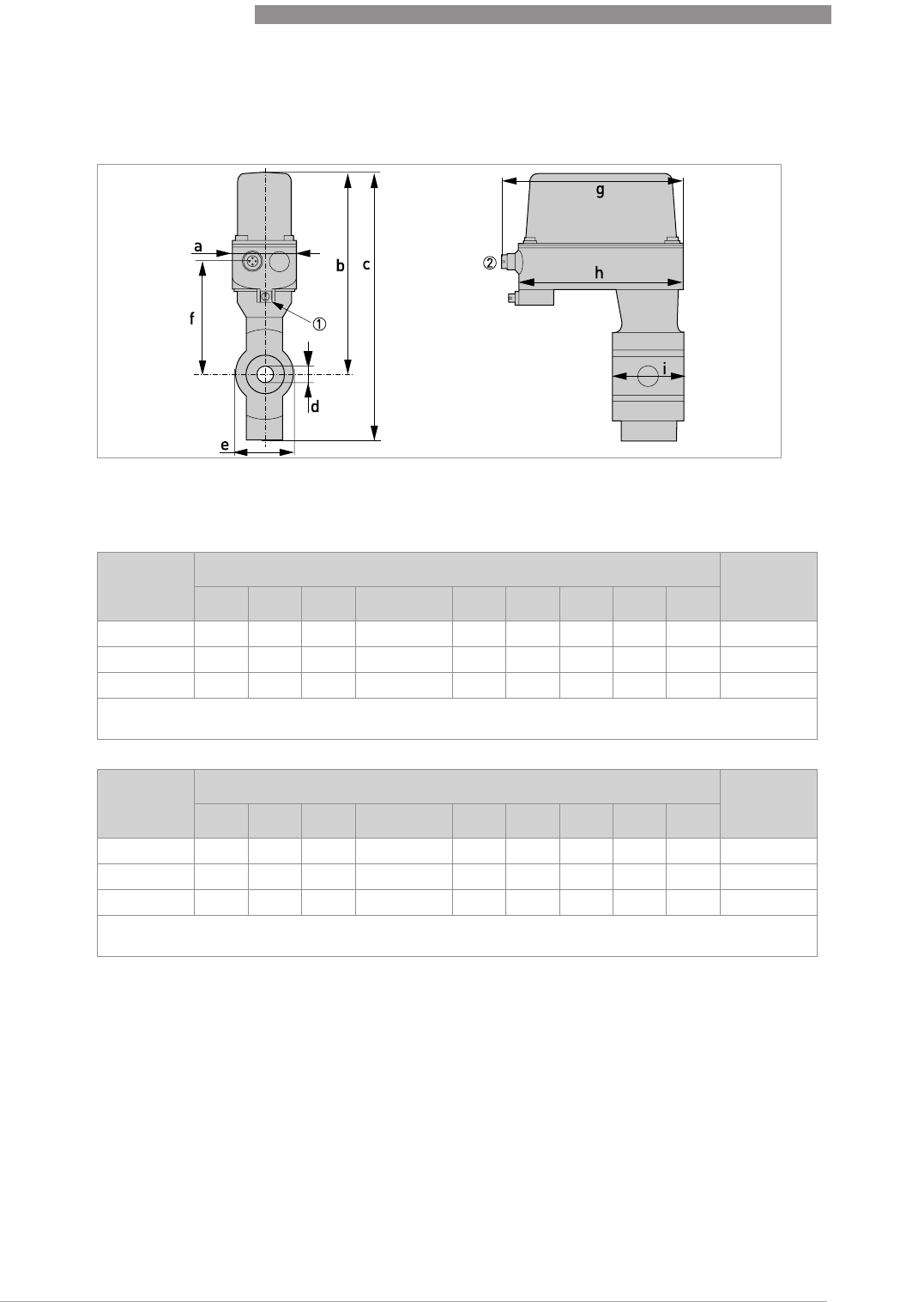

Figure 6-2: Dimensions
1 (Grounding)
2 M12; 5 - 8 pins connector
Nominal
size
Dimensions [mm] Weight
[kg]
a b c d e f g h i
DN2.5 50 156 206 6 2.5 44 88 141 128 54 1.5
DN4 50 156 206 7 3.2 44 88 141 128 54 1.6
DN6 50 156 206 9 4.8 44 88 141 128 54 1.6
Note on dimension d: As the diameter reduces to the middle, the diameter is specified for the inlet and
for the middle
Nominal
size
Dimensions [inches] Weight
[lb]
a b c d e f g h i
1/10" 1.97 6.14 8.11 0.24 0.10 1.73 3.46 5.55 5.0 2.13 3.4
1/6" 1.97 6.14 8.11 0.28 0.13 1.73 3.46 5.55 5.0 2.13 3.6
1/4" 1.97 6.14 8.11 0.35 0.19 1.73 3.46 5.55 5.0 2.13 3.6
Note on dimension d: As the diameter reduces to the middle, the diameter is specified for the inlet and
for the middle
