Instruction Manual

3 INSTALLATION
14
BATCHFLUX 5500 C
www.krohne.com 05/2014 - 4000827703 - HB BATCHFLUX 5500 R03 en
3.5.6 Mounting
3.5.7 Installation location
3.5.8 Flange deviation

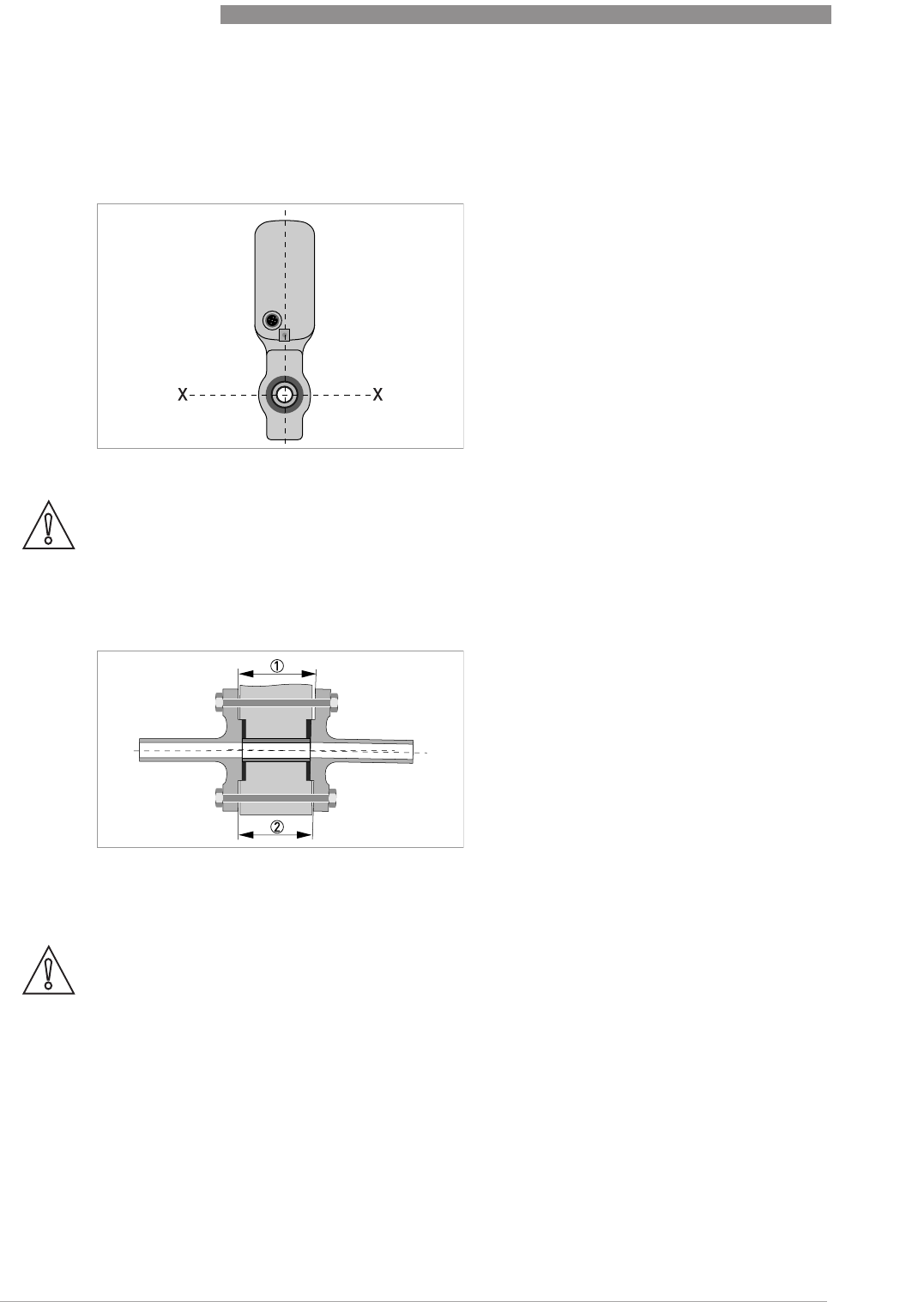

Figure 3-9: Installation location
CAUTION!
Mount the flow sensor in such a way that the electrode axis
(X--------X) is approximately in a horizontal pipe run.
Figure 3-10: Mounting position and flange deviation
1 L
max
2 L
min
CAUTION!
Max. permissible deviation of pipe flange faces:
L
max
- L
min
≤ 0.5 mm / 0.02"
