BATCHFLUX 5500 C
www.krohne.com05/2014 - 4000827703 - HB BATCHFLUX 5500 R03 en
3.5.4 Open feed or discharge
3.5.5 Mounting position
∠α ; > 2°
1. Drain valve ( to empty pipeline)

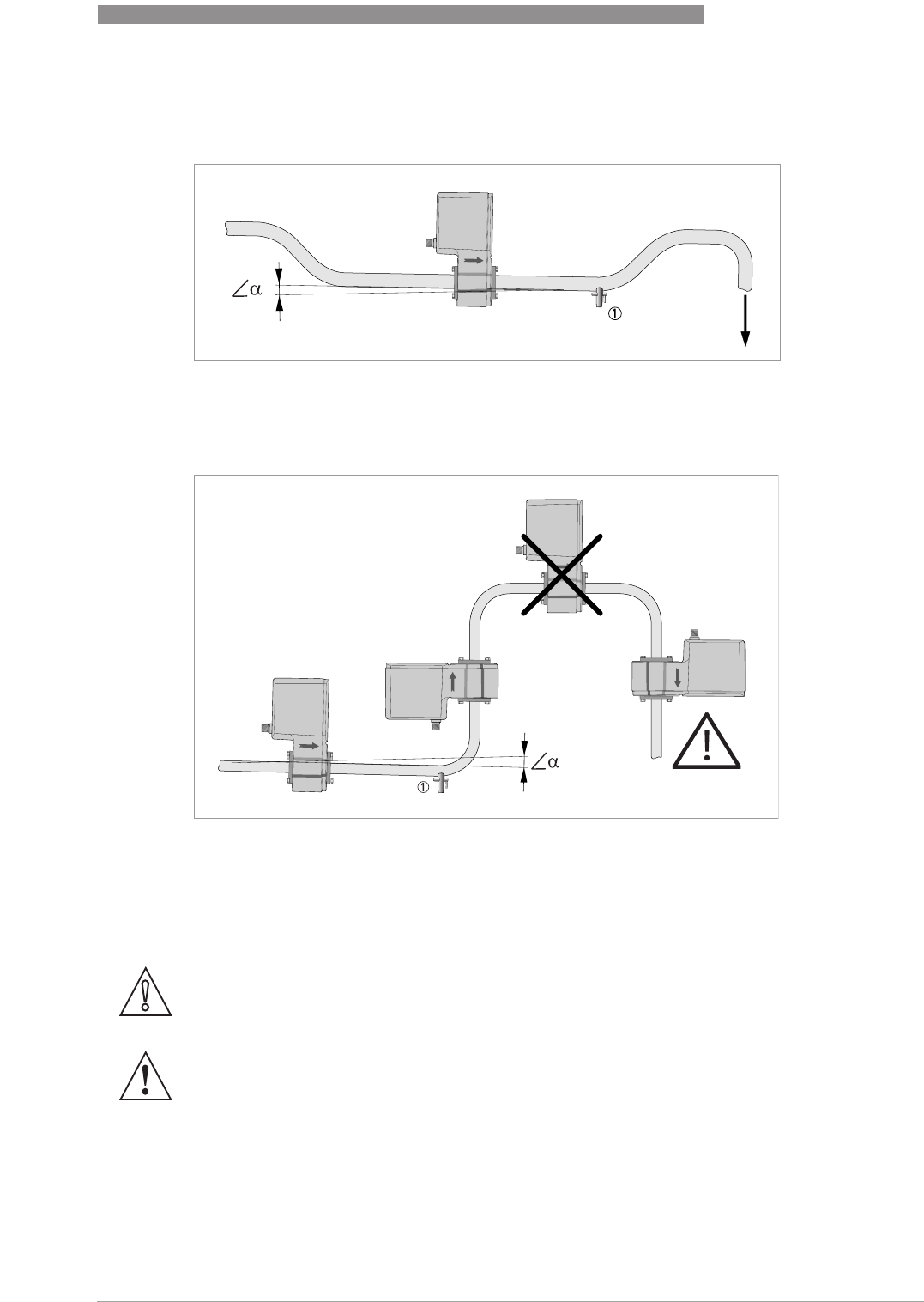

Figure 3-7: Installation before an open discharge
Figure 3-8: Installation in bending pipes
CAUTION!
Avoid draining or partial filling of the flow sensor.
WARNING!
Vertical down position only in conjunction of a control valve
