3.5 Installation conditions
3.5.1 Inlet and outlet
3.5.2 Control valve
3.5.3 Pump
∠α > 2°
1. Drain valve (to empty pipeline)

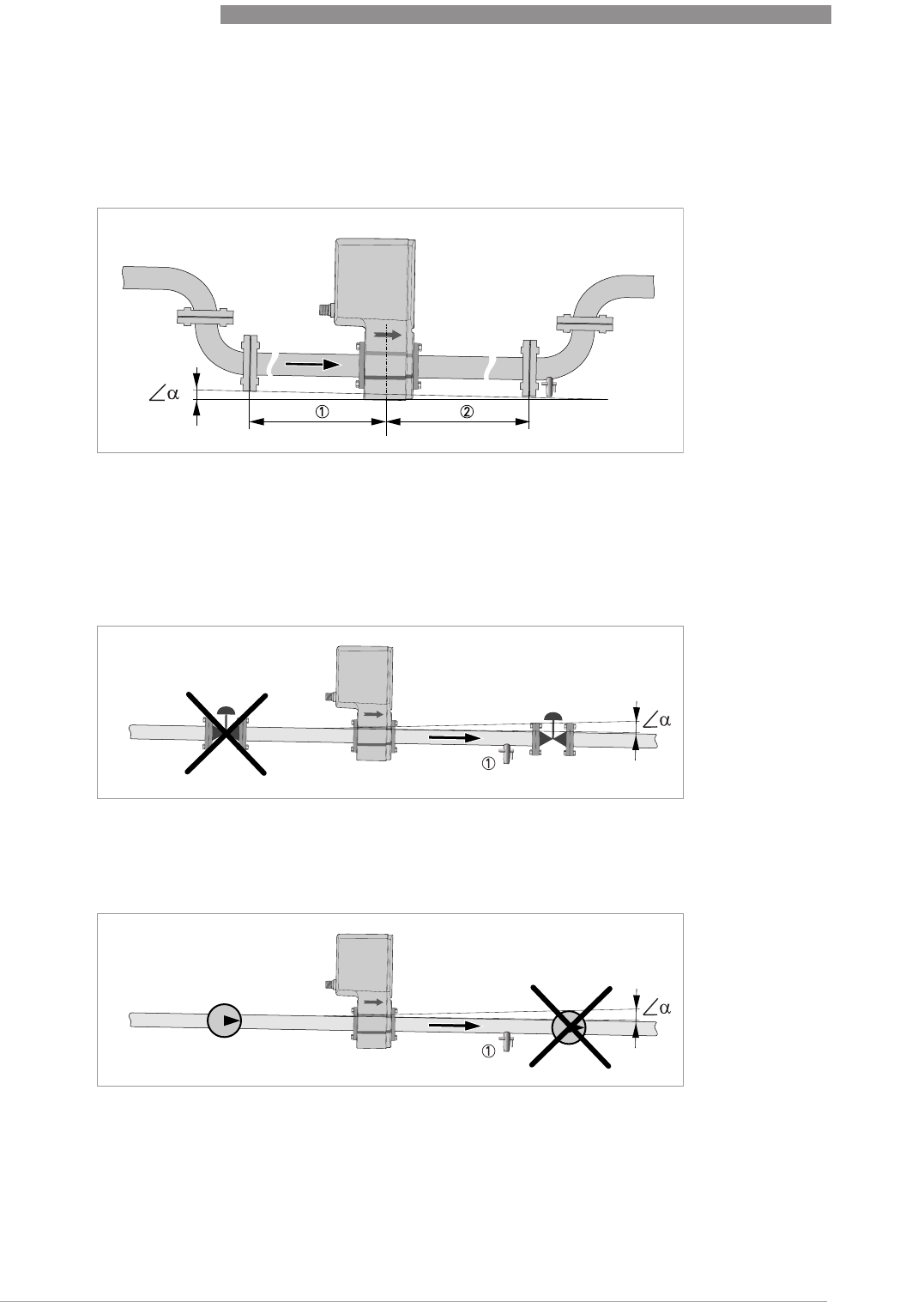

Figure 3-4: Inlet and outlet section
1 ≥ 5 DN
2 ≥ 2 DN
3 Drain valve (to empty pipeline)
3
Figure 3-5: Installation before control valve
Figure 3-6: Installation after pump
