Installation Guide

6

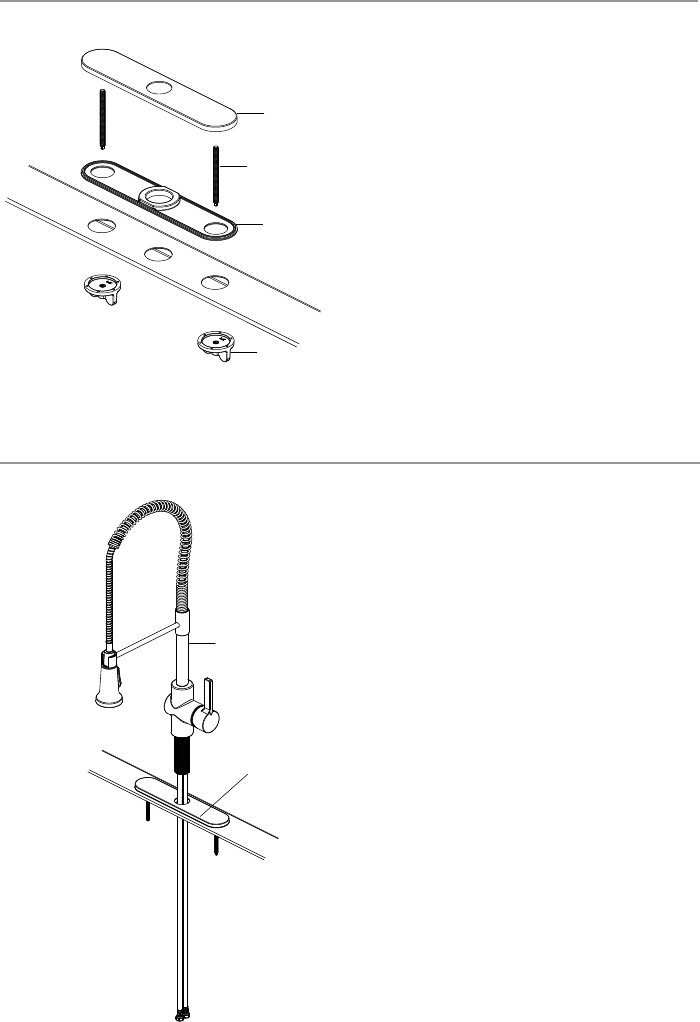

Before installation, remove the
ange (D). Screw the bolts (G1) into
the escutcheon (E) and
ensure that the base plate (F)
is pressed onto the escutcheon
(E) before the escutcheon (E) is
installed over the three holes in the
sink. From underneath sink, hand
tighten the mounting nuts (G2).
Do not overtighten.
NOTE: Skip this step if installing
without deckplate
Step 4: Install the faucet assembly (with deckplate)
Insert the faucet assembly (B)
through the hole in the
escutcheon (E).
NOTE: Skip this step if installing
without deckplate
Step 3: Install the escutcheon
