Installation Guide

5

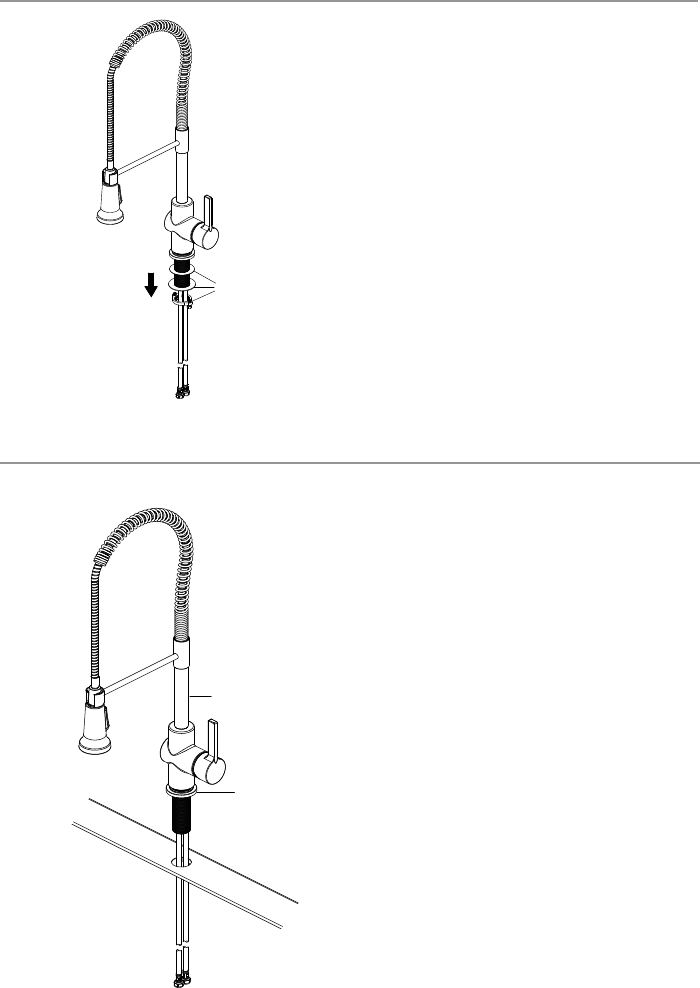

Step 1: Remove mounting hardware
Shut o the water supply.
Remove the old faucet. Clean
the mounting surface. Remove
mounting hardware (C) from
faucet body (B)
C
1 2
B
D
3
4
E
G2
F
G1
B
E
5 6 7
C1
C2
C3
2
1
Step 2: Install the faucet assembly (without deckplate)
Before installation, ensure that the
ange (D) is placed on the bottom
of the new faucet assembly (B).
Insert the faucet body through the
hole in the sink.
NOTE: Skip this step and move
on to Step 3 if installing with
deckplate
