5.7 WV-20N Video Distribution Amplifier and Line Driver
The Kramer WV-20N is a 1:2 video distribution amplifier and line driver for
composite video on a BNC input connector to a 3-pole + 2-pole terminal
block connector, with video level and EQ. controls, as Figure 12 illustrates:


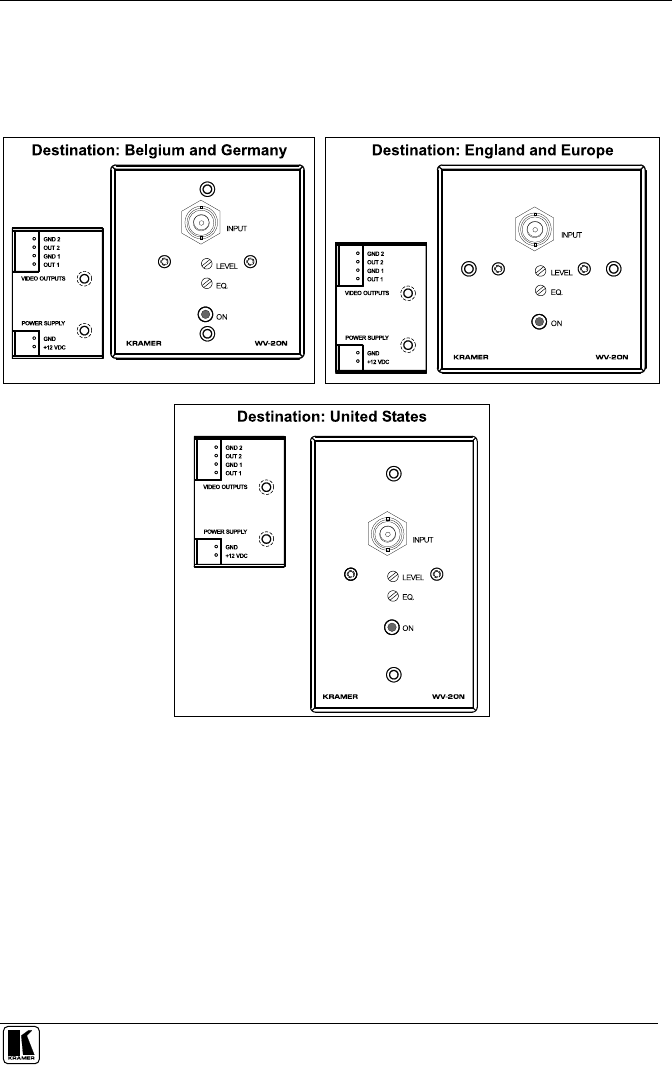

Figure 12: WV-20N Video Distribution Amplifier and Line Driver
