Configuring the VP-724xl via the OSD MENU Screens

Table 13: PIP Setting Utility Screen Features

Button Function Range Default

PIP On/Off Activate or deactivate the PIP feature

PIP Source Select the PIP source, as described in section 7.2.1

PIP Size Select between: 1/25, 1/16, 1/9, 1/4, Split or User Define

PIP Frame Allows the PIP to appear with or without an orange frame

H - Position Set the horizontal position of the PIP 0 to 36 1

V - Position Set the vertical position of the PIP 0 to 36 1

User Define Size

After selecting the User Define PIP Size, set the PIP size (H-

size and V-Size)

0 to 255 63

8.5.5 Choosing the Seamless Switch Utility Settings

From the Seamless Switch Utility screen (see Figure 36), you can choose the

image transition speed Mode, set the Background screen color and activate

the Auto Search, as described in Table 14:

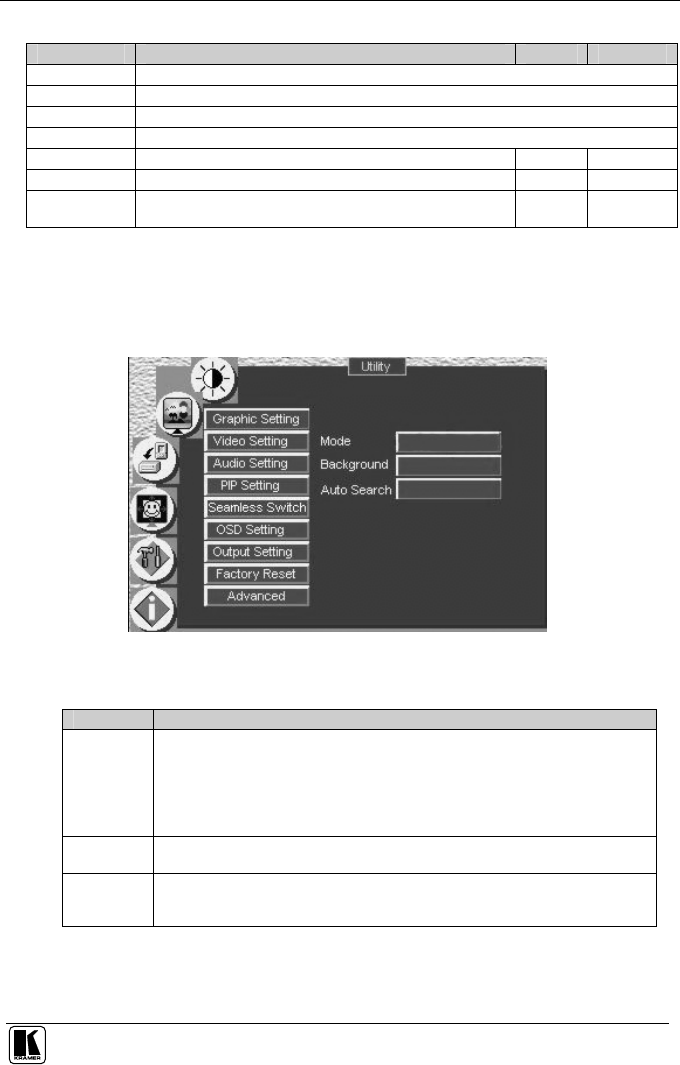

Figure 36: Seamless Switch Utility Screen

Table 14: Seamless Switch Utility Screen Features

Button Function

Mode Select image between:

Fast  an immediate switch, without checking the resolution. However, the image

transition may appear unstable

Safe – a smooth image transition - the input resolution at the input is checked and

outputted after a few seconds delay, but it takes longer than fast

Moderate – between fast and safe

Background Set the background screen color: You can select the screen color (black or blue)

when there is no active source

Auto Search Activate the Auto Search to find the active source when the unit is powered up; or

deactivate the Auto Search (when the unit is powered up, displays the source

selected prior to power down)
