Configuring the VP-724xl via the OSD MENU Screens

8 Configuring the VP-724xl via the OSD MENU Screens

The OSD superimposes a menu on the screen from which you can configure

and control each input signal on your VP-724xl, using the MENU, ENTER, ,

+, UP and DOWN OSD buttons on the front panel and the remote transmitter.

To use the OSD menus:

1. Select the desired input signal.

2. Use the menu buttons as follows:

 Press the MENU front panel OSD button or the MENU key on the

infra-red remote control transmitter (see Figure 16) to display the MENU

screen (see Figure 17), which displays six interactive icons

(defined in

Figure 18)

 Press the MENU front panel OSD button or the MENU key on the

infra-red remote control transmitter to move to the previous level in the

OSD screen (Esc)

 Press the UP or DOWN buttons to select menu icons and then press

ENTER

 Use + and – buttons to increase and decrease the (numerical) rate

respectively

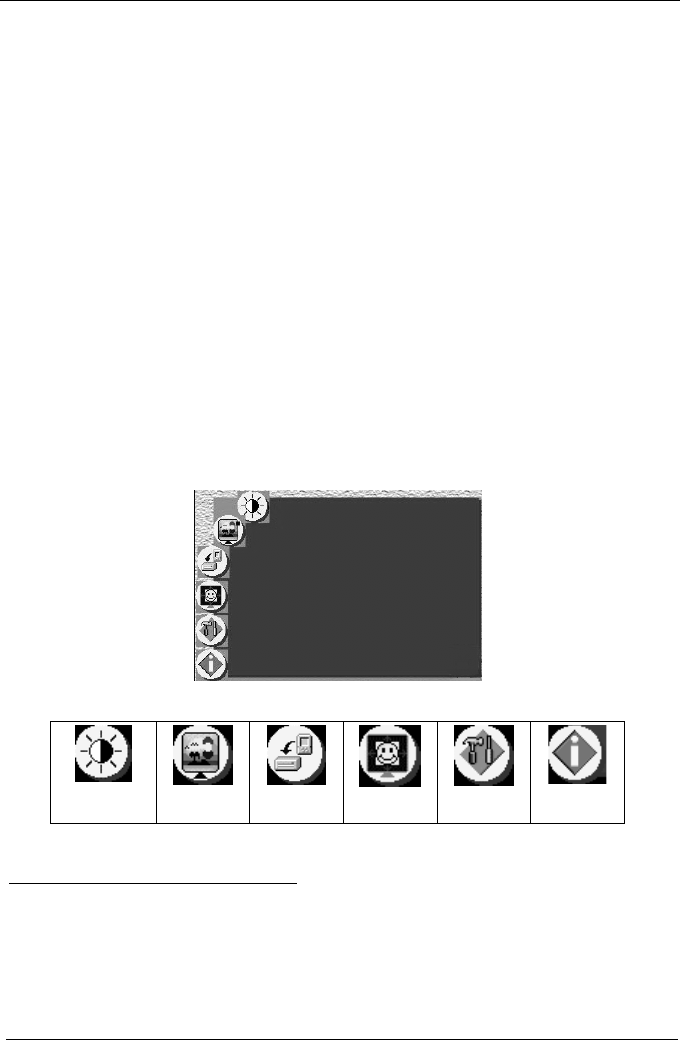

Figure 17: MENU Screen

Brightness

and Contrast

Gamma

and Color

Source

Geometry

Utility

Information

Figure 18: Menu Screen Icons

1 Each icon represents a Level 1 function. In addition to Level 1, the OSD structure includes Level 2 (a subset of level 1),

Level 3 (a subset of level 2), Level 4 (a subset of level 3) and a numerical range

2 By pressing the +, -, UP and DOWN buttons continuously, you can speed up their response. For example, to roughly set the

brightness to a higher level, open “Brightness and Contrast”>Brightness, and press and hold the + button. For step-by-step

response, press and release these buttons as many times as needed
