Presentation Switcher / Scaler Buttons
20
Auto(NT SC System)
PIP
Source: VGA-2

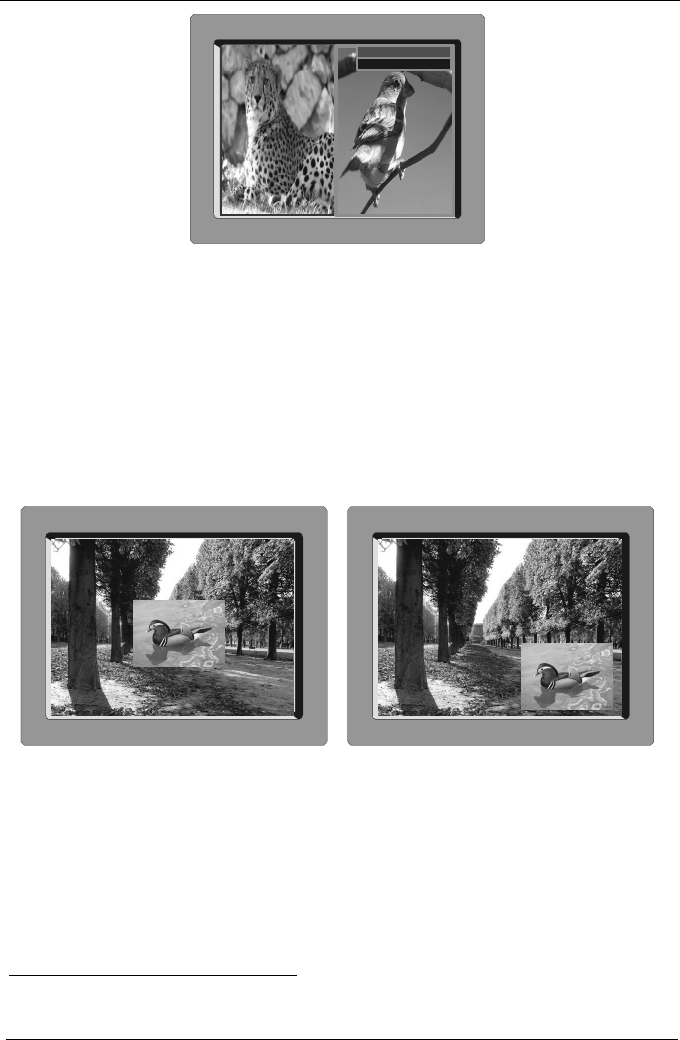

Figure 14: PIP Size – Split Screen
7.2.5.2 Moving the Position of the PIP
To move the position of the PIP, as illustrated in Figure 15, use the OSD
menu (Utility>>PIP Setting>>H-Position; V-Position).
When the Source Prompt is ON, and the PIP Frame is ON, you can instantly
position the PIP using the preset position control keys on the infra-red remote
control transmitter.
When there is no orange frame, use the +, -, Up and DOWN buttons
1
.
Auto(NTSC Sy stem)
Auto(NT SC Sy stem)
Figure 15: Moving the Position of the PIP
1 On the machine, or the navigation control keys on the infra-red remote control transmitter (see Figure 16)
