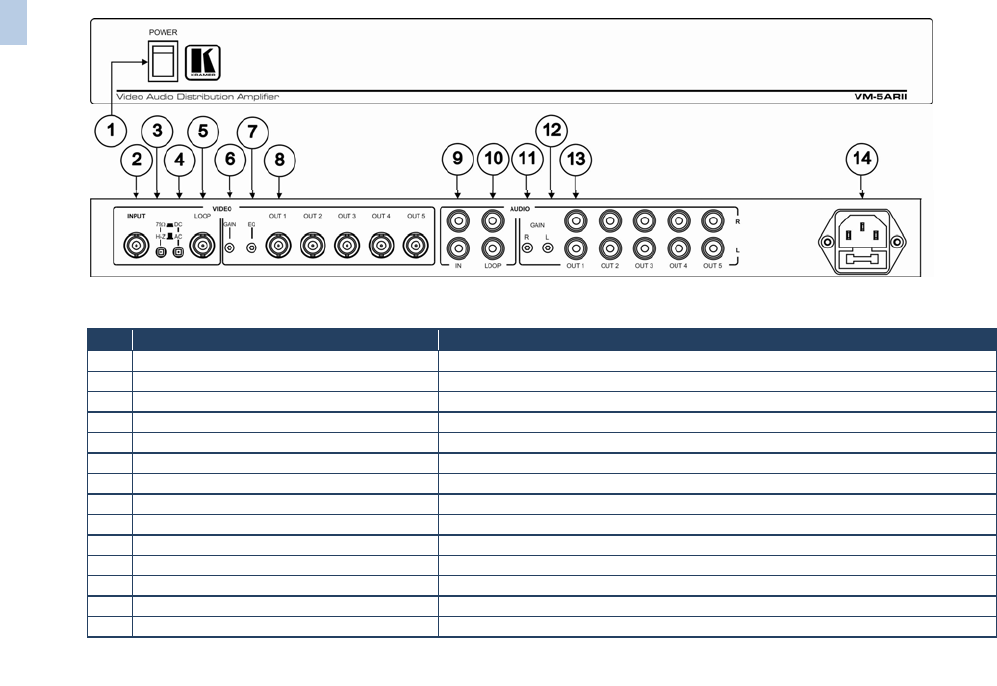

Figure 1: VM-5ARII Video Audio Distribution Amplifier – Front and Rear Panels
Feature Function
1 Illuminated Power Switch Illuminated switch for turning the unit ON or OFF
2 VIDEO IN BNC Connector Connects to the video source
3 75Ω/Hi-Z Pushbutton Press in for input 75Ω termination, release for no termination
4 DC/AC Pushbutton Press in for DC coupling, release for AC coupling
5 VIDEO LOOP BNC Connector Connects to a display
6 VIDEO GAIN Control Adjusts the video gain level
7 VIDEO EQ. Control Adjusts the cable compensation equalization level
8 VIDEO OUT BNC Connectors Connects to the video acceptor (from 1 to 5)
9 AUDIO IN RCA Connectors (L and R) Connects to the L and R channels of the audio source
10 AUDIO LOOP RCA Connectors (L and R) Connects to an audio acceptor
11 AUDIO GAIN R Controls the volume on the right audio channel
12 AUDIO GAIN L Controls the volume on the left audio channel
13 AUDIO OUT RCA RCA Connectors (L and R) Connects to the audio acceptors (from 1 to 5)
14 Power Connector with Fuse AC connector for supplying power to the unit
