621T, 621R - Defining the 621T, 621R DVI Optical Transmitter/Receiver
4 Defining the 621T, 621R DVI Optical
Transmitter/Receiver
This section defines the DVI Optical Transmitter/Receiver:
 621T DVI Optical Transmitter (see Section 4.1)
 621R DVI Optical Receiver (see Section 4.2)
4.1 Defining the 621T DVI Optical Transmitter

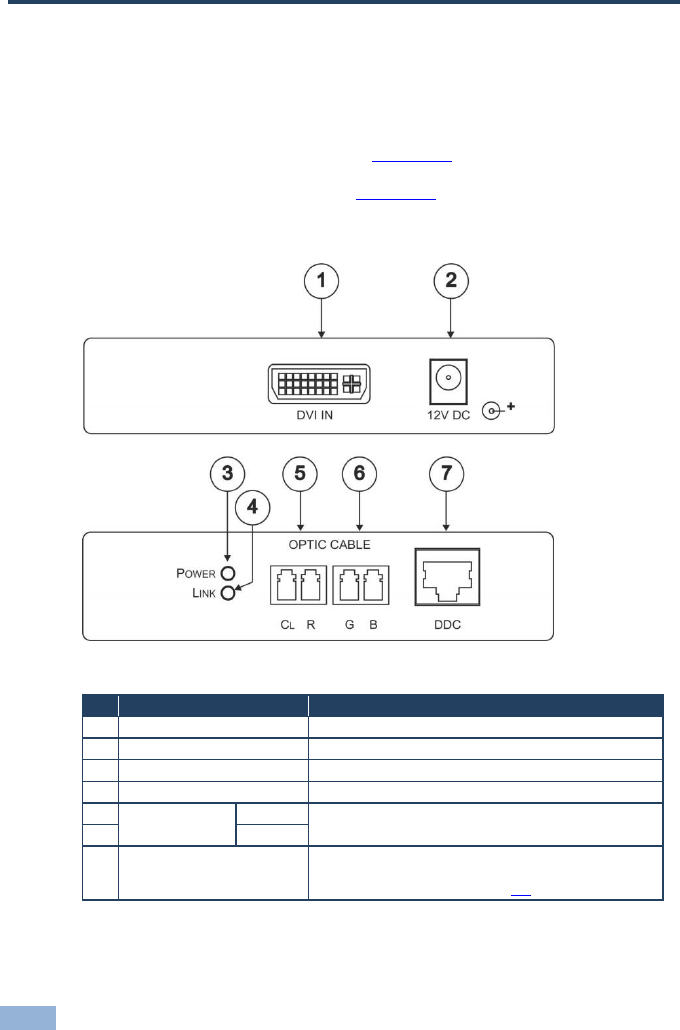

Figure 1: 621T DVI Optical Transmitter
#
Feature
Function
1
DVI IN Connector
Connects to the DVI source
2
12V DC
12V DC connector for powering the unit
3
POWER LED
Lights when receiving power
4
LINK LED
Lights when receiving a stable DVI signal
5
OPTIC CABLE
CL R
Connect to the optic connectors on the 621R
6
G B
7
DDC CAT 5 Connector
Connects to the DDC RJ-45 connector on the 621R
using a UTP CAT5 cable with RJ-45 connectors at both
ends (the PINOUT is defined in 5.3)
