5 Setting Communication Parameters
5.1 BSR100D™ Radio Programming Guide Using GUP10™
Using KP’ s Gup10 Utility Program, the BSR100D™ parameter values listed
below can be programmed or modified.
 Transmit frequency (MHz)
 Receiver frequency (MHz)
 Tx time out (0-240 sec)
Connecting RADIO SET-UP cable using KP’ s RS232 adaptor (RSINT001™)
are configured between the BSR100D and a PC (see Figure 9: BSR100D/PC
Connection Configuration).

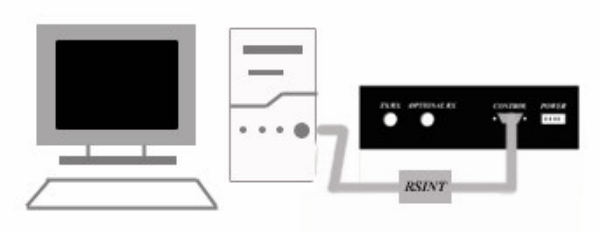

Figure 9: BSR100D/PC Connection Configuration
5.1.1 Operating Instructions
 Connecting BSR100D to Gup10 (utility
program)
 Loading Parameter Values
 Changing Parameter Values
 Updating Parameter Value Changes
 Confirming Parameter Value Changes
 Activating Self Test
5.1.2 Connecting BSR100D to Gup10
Connect BSR100D™ to a PC using the RSINT001 adaptor
and cables
Click StartProgramsKP UtilitiesGUP10.
The GUP10 main screen displays the device type, version,
status device diagnostics and parameters (see Figure :
Gup10 Main Screen)
