User Manual

6
13. Display:Shows seings, for example, for the Function mode and the metronome.
14. UP/DOWNbuons:These buons are used to select a value for the various set-
tings.
15. METRONOMEbutton/LED:This button is used to start/stop the metronome.
While the metronome is being used, the LED lights up. In addition, hold down
the buon to enter the Metronome seings mode, where various metronome set-
tings can be specied.

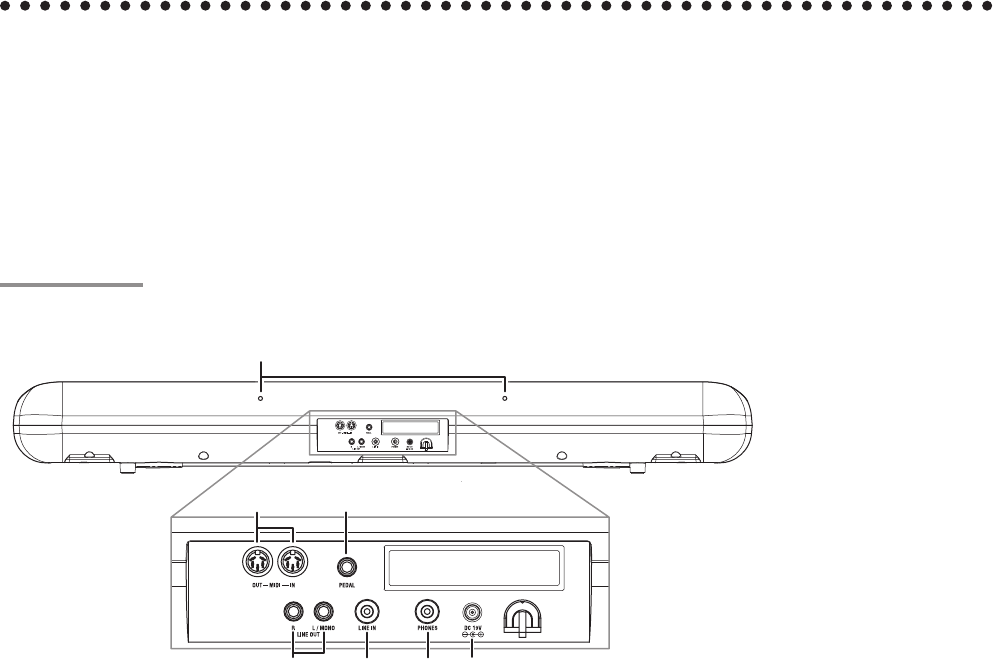

Rear panel
5
4 7
6
2
3
1
1. Musicstandholes:Holes for installing the included music stand.
2. MIDI(IN,OUT)connectors:Connectors that are used to connect other MIDI de-
vices (sequencer, keyboards, etc.).
OUT: Data output
(to be connected to the MIDI IN connector of another MIDI device).
IN: Data input
(to be connected to the MIDI OUT connector of another MIDI device).
3. PEDALjack:This jack is used to connect the included damper pedal.
4. LINEOUT(L/MONO,R)jacks:These are the main audio output jacks. These jacks
are where an external amplifying system would be connected to amplify the sound
from the SP-280. (With a hi- system use the AUX or LINE IN connectors). To am-
plify the SP-280 in mono, connect the single L/MONO jack. Use the VOLUME knob
to set the output volume.
5. LINEINjack:This is a stereo mini jack for audio input. This jack is used to con-
nect the audio output (AUX Out) of a sound system or other electronic musical in-
strument. Adjust the input volume with the connected device.
6. Headphone(PHONES)jack:The stereo mini plug of headphones can be inserted.
The same sound from the headphone jack on the front of the SP-280 will be pro-
duced. When the headphone plug is inserted, no sound will be produced from the
speakers.
7. DC19Vjack: Connect the included AC adapter here.
