Introduction CP930
Page 1 - 6 © 2003 Kontron Modular Computers GmbH ID 26683, Rev. 01
1.4.2 Front Panels
There are four standard variants of the CP930 available:
• Variant A: five front panel RJ45 connector and optionally extended temperatures
• Variant B: four front panel RJ45 connectors and one internal RJ45 connector
• Variant C: four RJ45 connectors; one MTRJ-type fiber optic connector, all on front panel
• Variant D: five front panel RJ45 connectors for mounting in a 3.5” FDD slot
The figure below shows the front panel layout for each of the above variants:

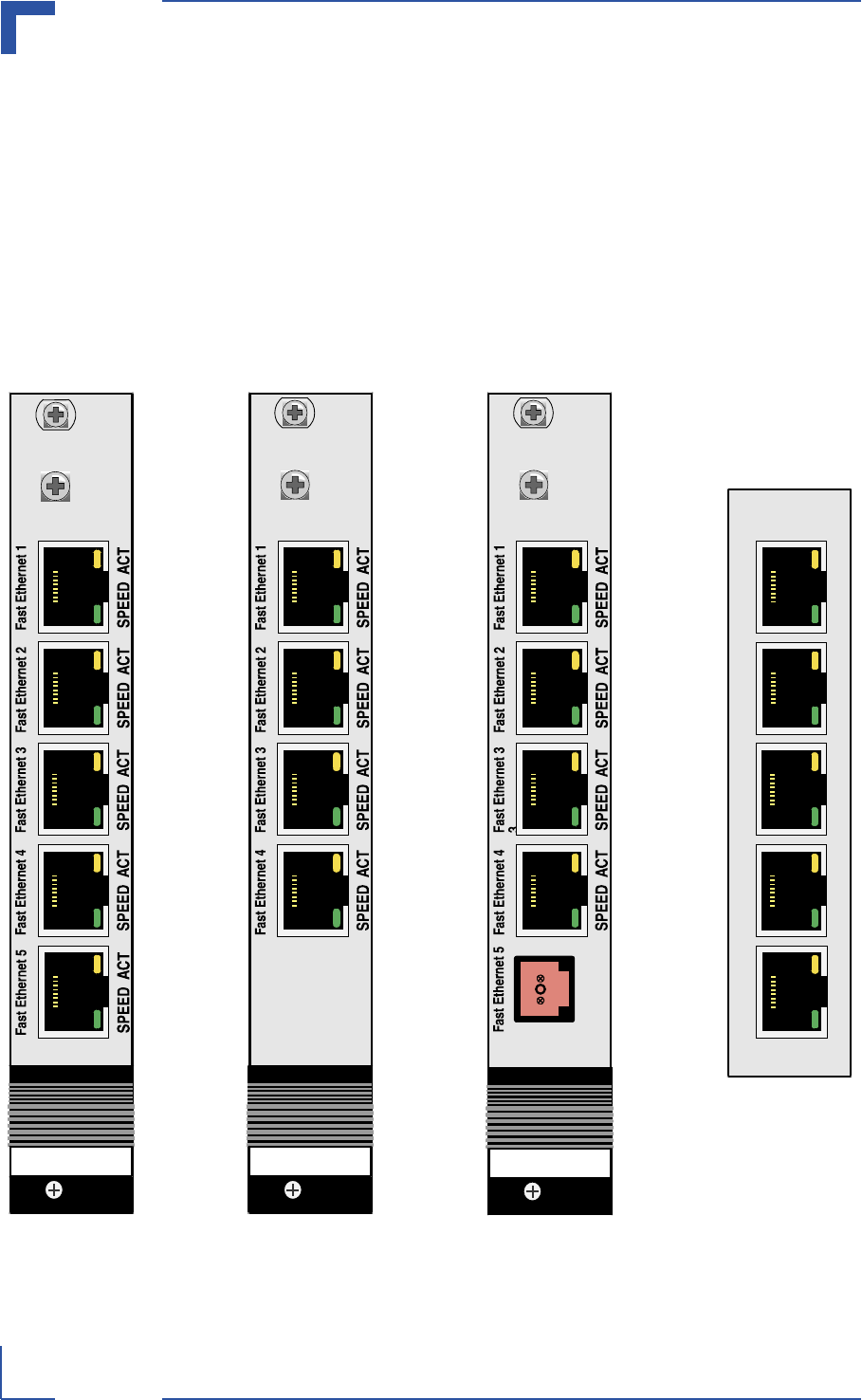

Figure 1-1: CP930 Front Panel Standard Variant Views
ACB
CP 930
CP 930-RJ CP 930-FX
D
