239
Chapter
2
Tool
Menu
9i
910
900
700
300
n

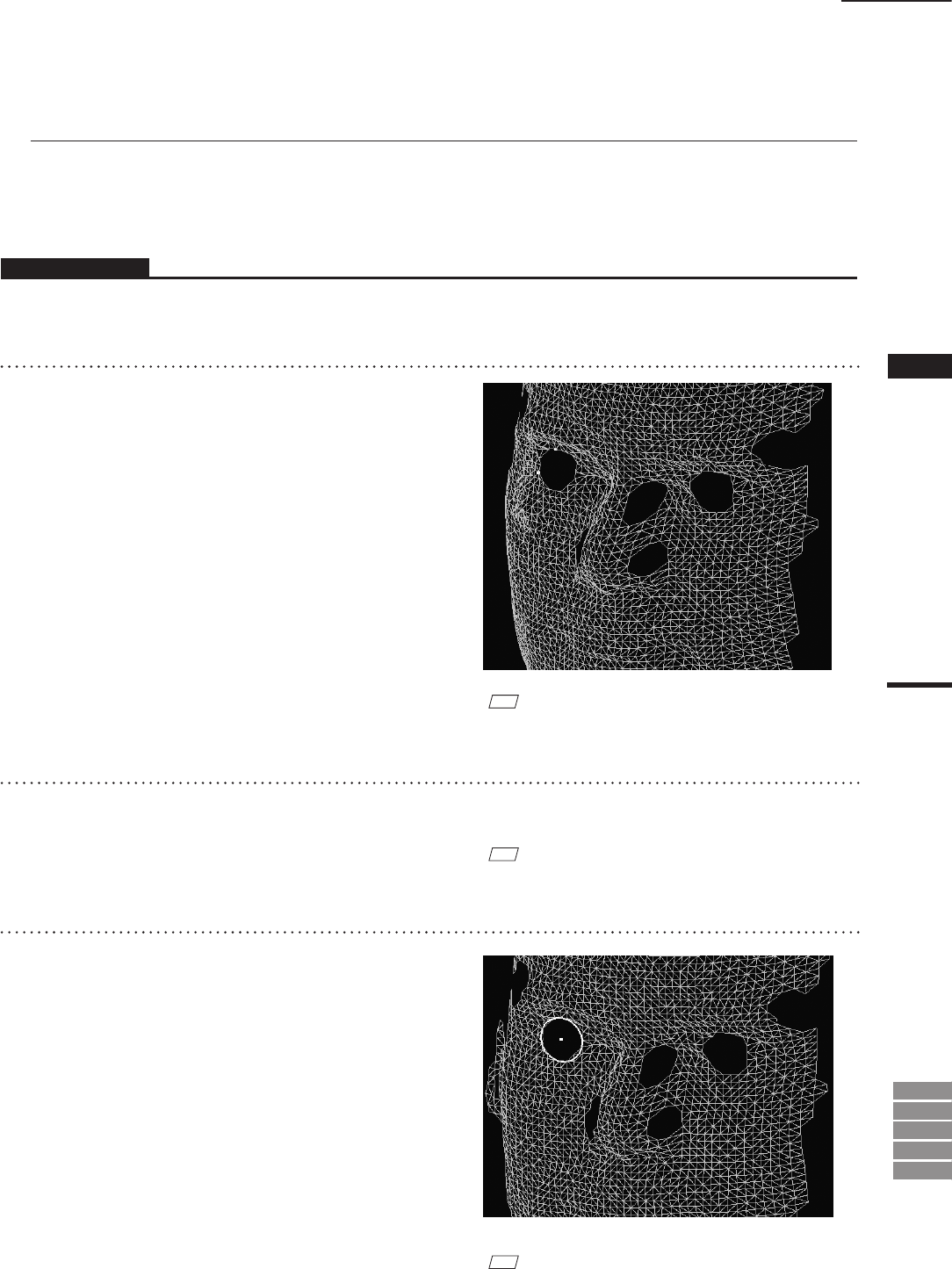

Measuring the Circle Passing Through Three Specied Points ([Circle])
Use the following procedure to measure the circle tted to coincide with three specied points on the
selected element.
Operating Procedure
1
Check on the [Circle].
2
Specify the first point on the element by
clicking on it.
The specied point will be displayed in an ele-
ment view window.
M
emo
To redo the point specifying, click the Right mouse but-
ton at anywhere.
3
Specify the second point by clicking on
it.
M
emo
To redo the point specifying, click the Right mouse but-
ton at anywhere.
4
Specify the third point by clicking on it.
The circle tted to coincide with the specied
three points is calculated, and the calculated
results will be displayed in the upper-right win-
dow of the [Tool – Measure] dialog box, and
the tted circle will be displayed in an element
view window.
M
emo
To calculate the next circle, click the Right mouse button
on the next point.
Tool – Measure
