Build – Check Polygons – Polygons
Checking for Illegal Polygons Composed of Selected Points
This command is used to check illegal polygons composed of the selected points in the selected element.
Operating Procedure
1
From the element list, select one desired
element.
2
Select the points that contain polygons
to be checked
Only the polygons for which all vertices are
selected will be checked.
3
From the [Build] menu, select [Check
Polygons] and then click [Polygons].

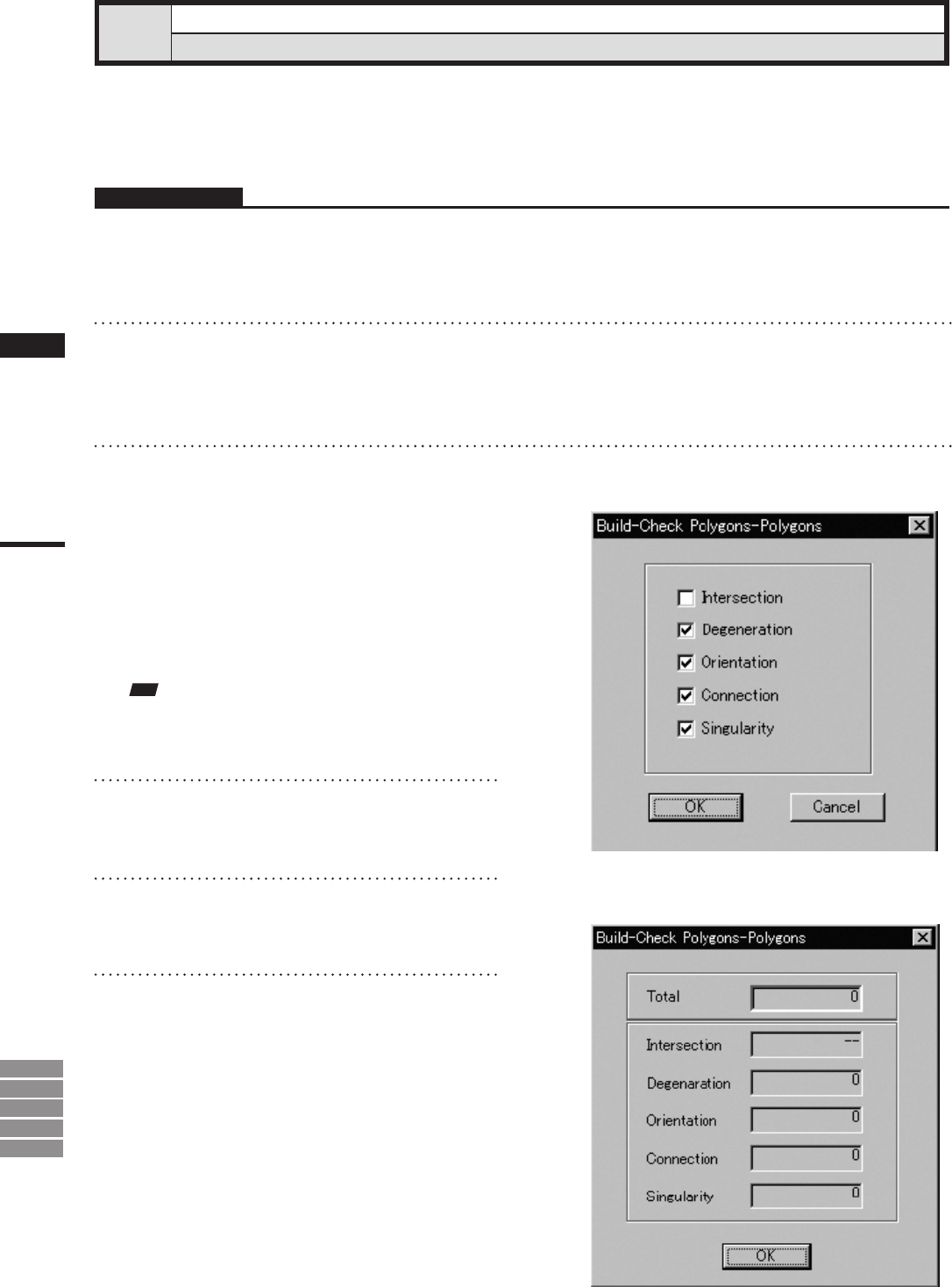

The [Build-Check Polygons-Polygons] dialog
box will appear.
• The selected element will be ready to be dis-
played in all windows. It will be displayed if
it is not displayed in the active window or the
windows for which all the elements are set to be
displayed.
Note
Anerrormessagewillappearifmorethanoneelement
isselected.
4
Check the checkboxes of the param-
eter items to be checked.
5
Click the [OK] button.
Illegal polygons will be detected and the fol-
lowing dialog box will appear.
6
Click the [OK] button.
Only the vertices comprising the illegal poly-
gons will remain selected, the dialog box will
close and the menu will be exited.
