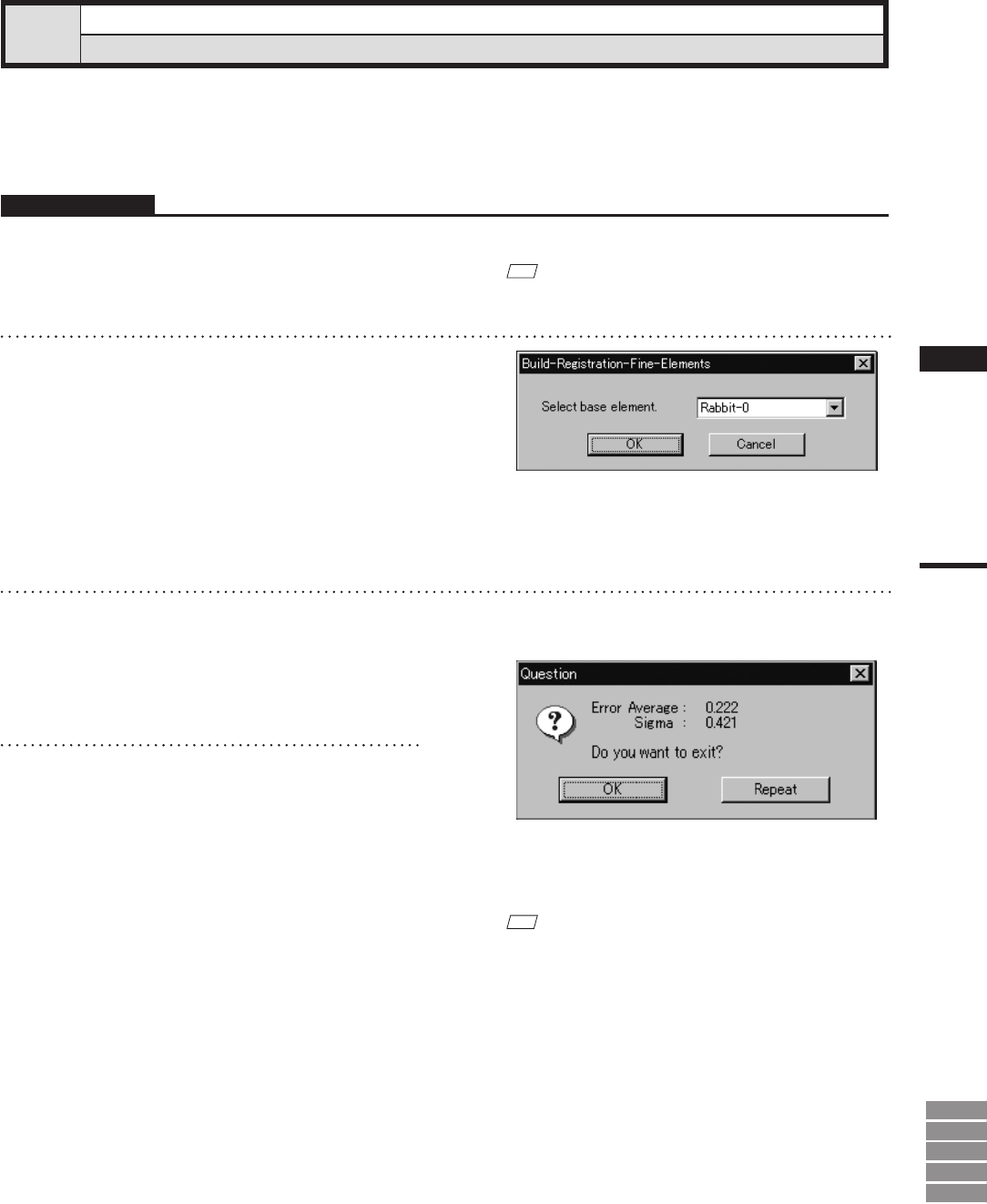

Build – Registration – Fine – Elements
Performing Fine Registration of Elements
This command is used to perform registration of the selected elements.
Operating Procedure
1
From the element list, select the desired
elements.
M
emo
It is possible to select two or more elements by clicking
them while holding down the [Shift] or [Ctrl] key.
2
From the [Build] menu, select [Registra-
tion], [Fine] and then click [Elements].
The [Build-Registration-Fine-Elements] dialog
box will appear.
• The selected element will be ready to be dis-
played in all windows. It will be displayed if
it is not displayed in the active window or the
windows for which all the elements are set to be
displayed.
3
Set the base element, and then click
the [OK] button.
The program executes ne registration for the
selected elements, and displays a dialog ask-
ing whether results are satisfactory.
4
Click the [OK] button.
The menu will be exited.
• To continue ne registration processing, click the
[Repeat] button.
M
emo
The [Error Average] and [Sigma] values are indicators of
the correctness of the registration (the alignment).
In general, the closer to zero they are, the more accurate
alignment is.
