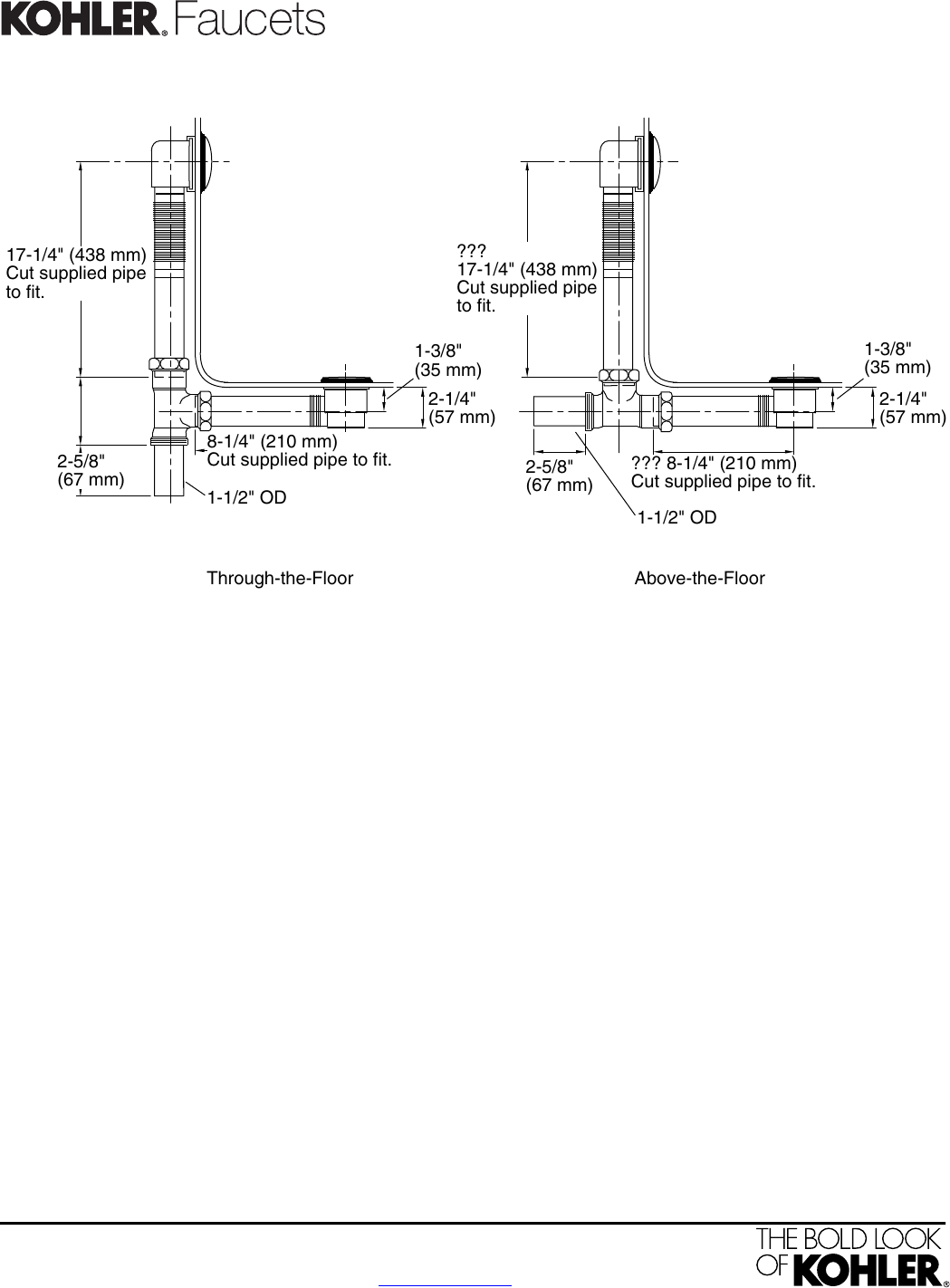

Dimensions Guide

8-1/4" (210 mm)
Cut supplied pipe to fit.
1-1/2" OD
17-1/4" (438 mm)
Cut supplied pipe
to fit.
1-3/8"
(35 mm)
2-1/4"
(57 mm)
2-5/8"
(67 mm)
??? 8-1/4" (210 mm)
Cut supplied pipe to fit.
1-1/2" OD
???
17-1/4" (438 mm)
Cut supplied pipe
to fit.
1-3/8"
(35 mm)
2-1/4"
(57 mm)
2-5/8"
(67 mm)
Through-the-Floor Above-the-Floor
Notes
Technical Information
Install this product according to the installation
guide.
All product dimensions are nominal.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-15-2020 06:32 - US/CA
Clearflo
Brass toe tap bath drain
K-7259
