Preparation before Installation
NOTE: TO AVOID DAMAGE TO YOUR HOOD,
PREVENT DEBRIS FROM ENTERING
THE VENT OPENING.
- Decide the location of the venting pipe from
the hood to the outside. (Figure 1)
- A straight, short venting run will allow the
hood to perform more efficiently.
- Try to avoid as many transitions, elbows,
and long run as possible. This may reduce
the performance of the hood.
- Temporarily wire the hood to test for proper
operation before installing.
- Important: Peel any protective film off the
hood.
- Use duct tape to seal the joints between
pipe sections.
- If necessary, prepare back wall frame with
cross framing lumber for secure installation.
Refer to Table 1 and measurements on
Page 12 to decide the level of the lumber.
(Figure 2)
- Loosen hood-mounting brackets at the back
of the hood, adjust brackets and tighten
screws as shown in Figure 3.
- If necessary, remove the rubber stand on
the back of the hood and discard.
Hood Installation
CAUTION: If required to move the
cooking range to install the hood, turn
off the power on an electric range at the
main electrical box. SHUT OFF THE
GAS BEFORE MOVING A GAS RANGE.
1. Using references in Table 1 and
measurements on Page 12, mark the
leveling locations point for hood-mounting
bracket on the wall.
2. Secure two mounting screws (not provided)
to the wall, leaving an 1/8” space from the
wall. (Figure 4)
3. Align the hood-mounting bracket to the
mounting screws on the wall and hang hood
into place.

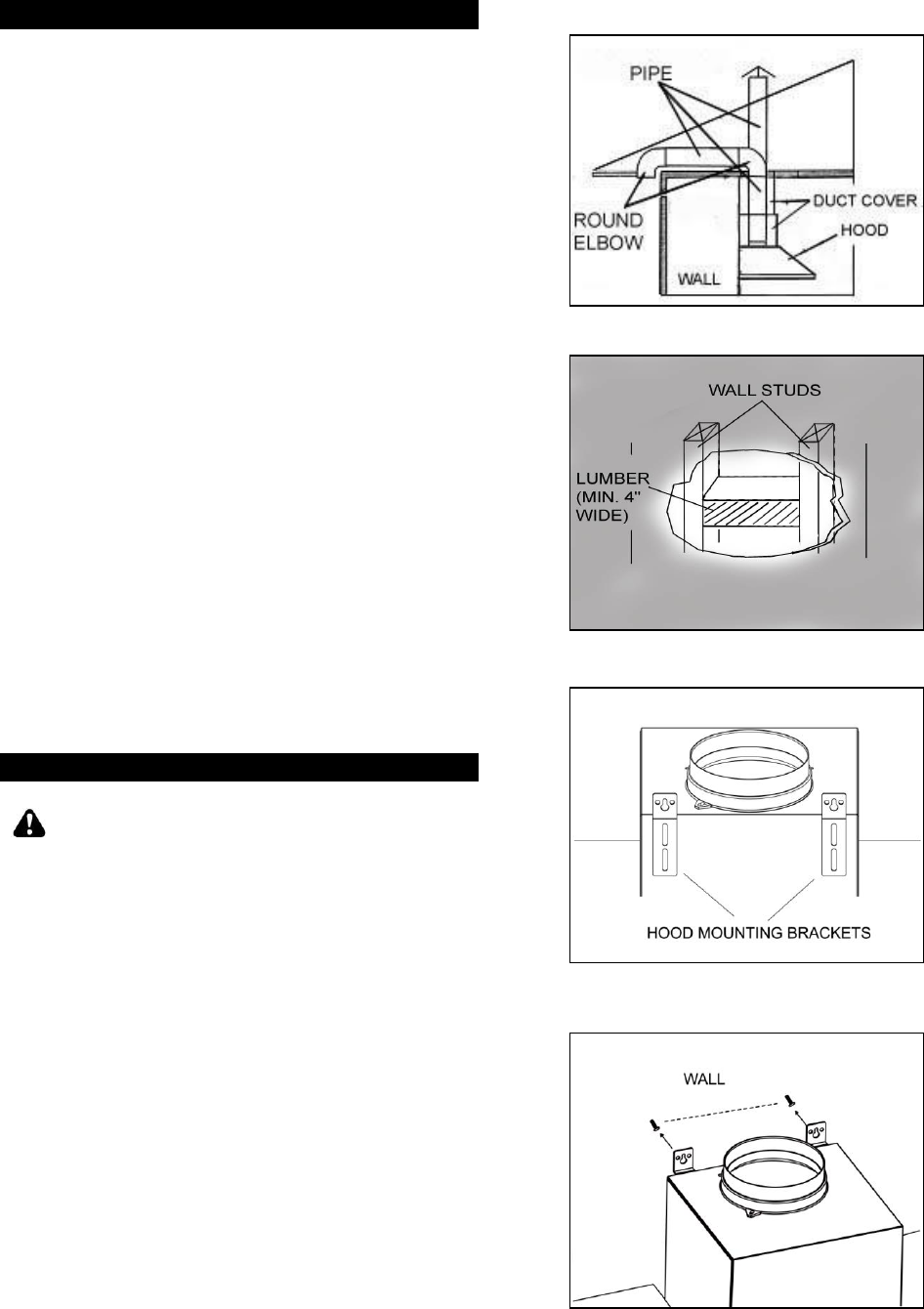

Figure 1
