Instruction Manual

SLIDING DOOR HARDWARE - Pocket Door
5 6
7

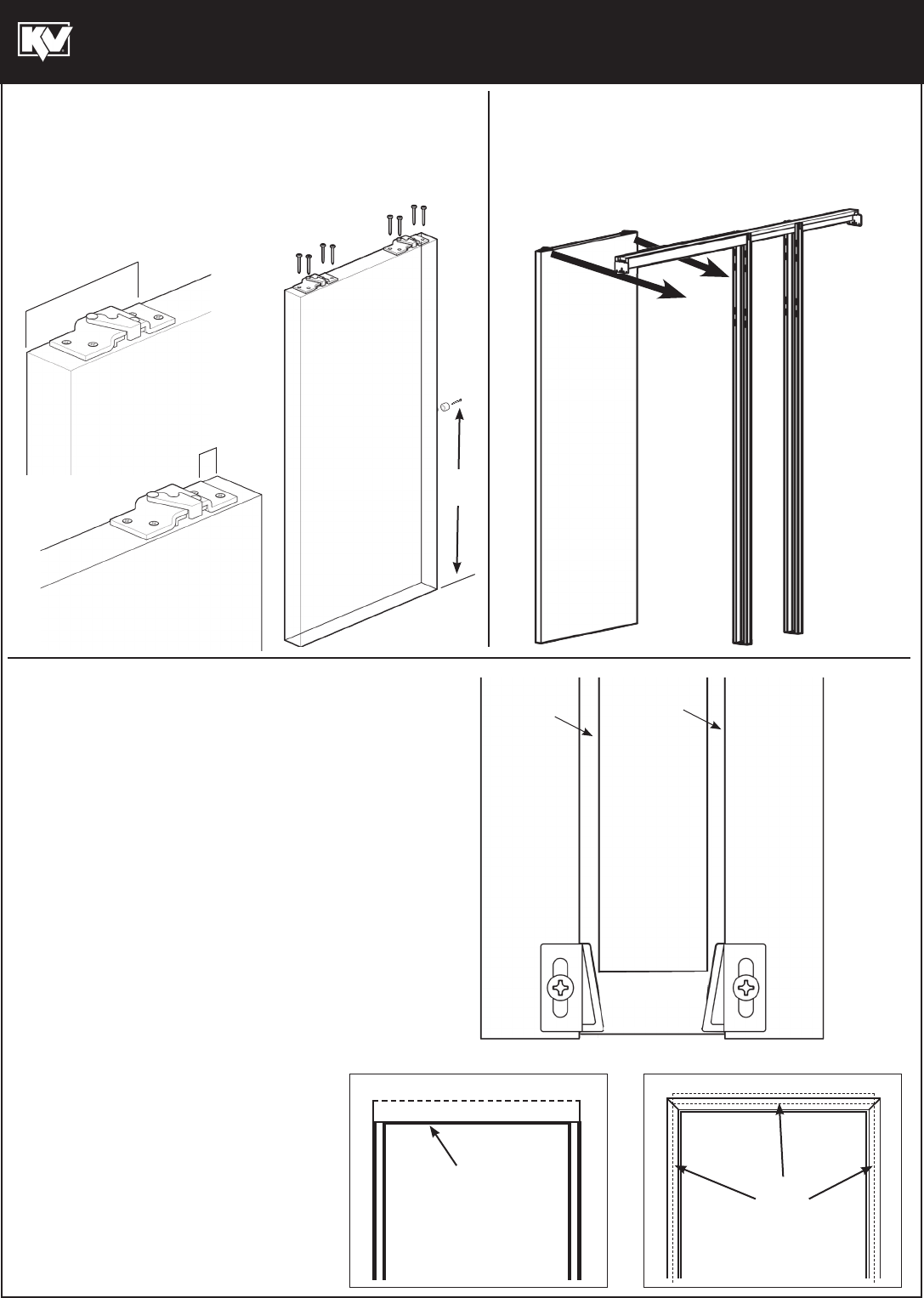

MOUNT DOOR HARDWARE HANG DOOR
FINISH JAMBS & TRIM
• Install door, mounting rear edge rst, then front edge.
• Open quick release latchs on brackets.
• Slide door onto carrier screws and close latch.
Assembly
Instructions
#310308_B (0113)
• (A) Install vertical nish split jambs, butting them all the way up
against exposed wood in nailing strips to header assembly.*
Leave 1/8" minimum distance on both sides of door. Check
clearance with door open and closed.
• (B) Install nish split header to the exposed nailer on
either side of the track, leaving 3/16" clearance on
both sides.
• To allow for future door adjustment or removal, at
least one nished split header should be attached
with screws only: The one on your right hand
overhead as you face the door in the pocket, is
recommended.
• Install nish trim casing. Fasten nish header trim
to EITHER header OR wall, NOT BOTH, so header
can be removed later without damage.
• Attach door guide to nish split jamb and adjust to
within 1/16" of door on either side.
*Note: Standard doorway jamb can be ripped to suit.
A
B
• Place quick release top mount plates on top of each door at
the distance shown from the outside edge.
• Using brackets as a template, drill 3/32" diameter
holes and secure with (#8 x 1") screws.
• Secure door bumper as shown.
1/8" min
(0,3 cm min)
1/8" min
(0,3 cm min)
Center
Centre
Centro
5-1/2"
(14 cm)
1-1/2"
(3.8 cm)
Rear
Arriére
Parte trasera
Front
Avant
Delantera
Finish split header
(Fasten with screws)
Linteau Fendu de Finition
(Fixer avec vis)
Cabecera hendida de
acabado (fijar con tornillos)
Finish trim
Habillage
de finition
Embellecedor
de acabado
