User's Manual

Ste
p
4
5-4. Connect optical fiber cables (continued)
p
Using the assembly instructions provided with the R2CT weatherized plug, assemble the R2CT plug onto the SMDF optical
fiber and connect to CPRI-1 port.

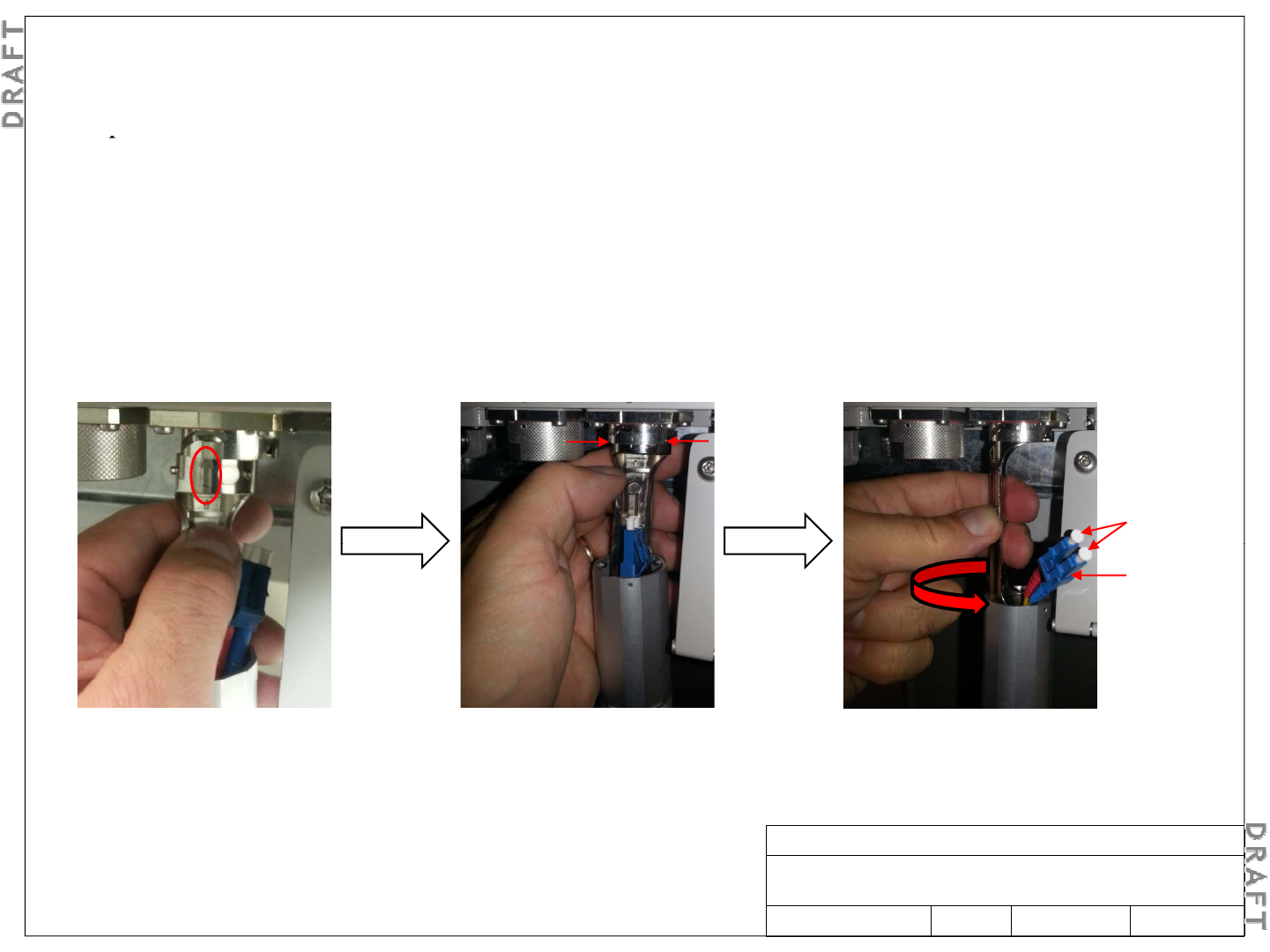

Step 4A
Using your left hand, connect the R2CT plug body to the CPRI-1 port receptacle as follows:
Align arrow on plug body with
alignment mark on receptacle.
Insert plug body bayonet pins
into slots on receptacle.
Rotate the plug body counter-
clockwise to lock it into place.
Protective
covers
LC
connector
covers
The base of the plug body should be
on the left, as shown in the picture.
Alcatel-Lucent RRH 2x60-B4
Alcatel-Lucent – Internal
Proprietary – Use pursuant to Company instruction
3MN-01520-0002-RJZZA Issue 0.02 March 2014
Sheet 17 of 24
